John Deere 2660VT - 25 ft, 5 in.

Double tap to zoom



Features

Autonomy-Ready Tillage

Front view of a green tractor driving across a harvested field at sunset, with large rear tires, illuminated headlights, and soil dust rising behind attached tillage equipment.

Autonomy should be as straightforward as technology. With integrated components like implement lights, a receiver mast, and an implement receiver harness, autonomy-ready tillage equipment helps customers save time and money by ensuring today’s purchases are prepared for future autonomous operation.

Versatile Gang Angle Adjustments

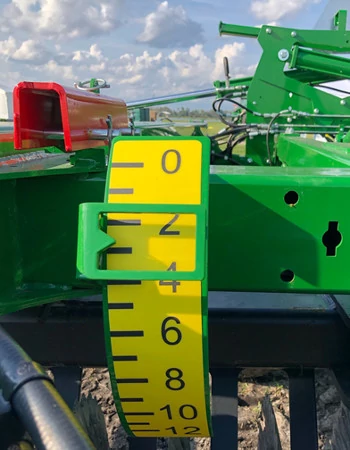

Front view of the large yellow measuring tape on a 2660VT vertical tillage, where the gang angle is adjusted

This model features an adjustable gang angle from 0 to 12 degrees, enabling users to adapt to different field conditions. A true 0-degree angle facilitates residue retention, while a more aggressive angle provides effective weed removal and field leveling.

Versatility Providing Year-Round Benefits

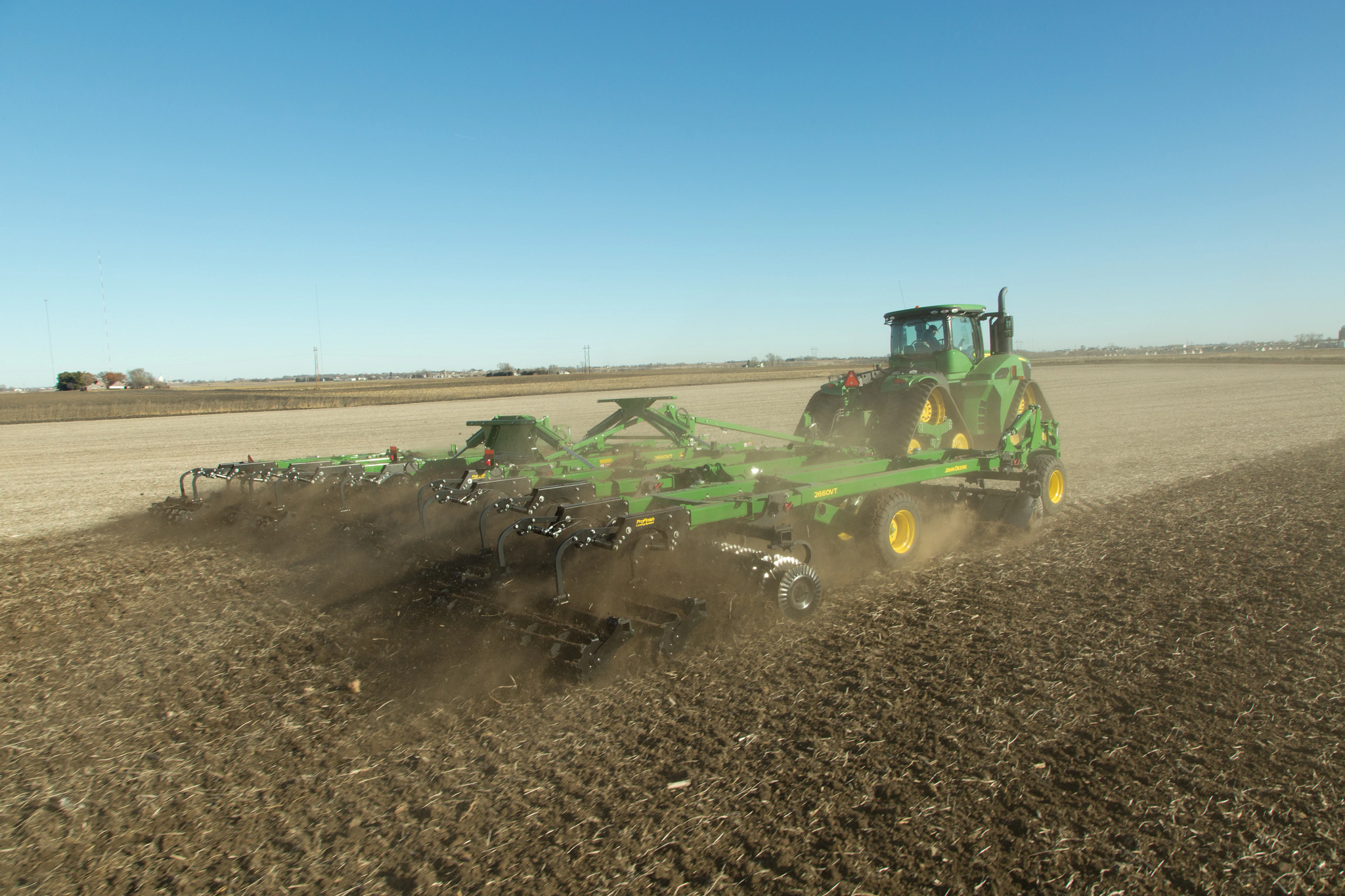

Rear right view of a 9RX series tractor with StarFire 6000 pulling a 2660VT Variable Intensity Tillage implement across a brown field

In spring, tillage helps break up crusted soil, manage residue and weeds, and improve seed-to-soil contact for better emergence and planter performance. In fall, it focuses on cutting and burying residue, enhancing water infiltration, and incorporating nutrients or cover crops while smoothing the soil surface.

Specifications

Machine

Blade Spacing7.25 in.
Blade Spacing18.4 cm
Gang Angle0-12 degrees
Weight Per Blade260 lb.
Weight Per Blade117.9 kg
Blade Diameter22 in.
Blade Diameter55.9 cm
Blade Thickness0.256 in.
Blade Thickness6.5 mm
Rolling BasketDouble Rolling basket, Reverse Knife edge, followed by round bar or flat bar rolling basket
Horsepower Requirement24.5-34.25 engine kW/m (10-14 engine hp/ft)
Transport WidthOne-section: 4.8 m (15 ft, 11 in.) Three-section: 3.76 m (12 ft, 4 in), 3.76 m (12 ft, 4 in.), 4.27 m (14 ft), and 5.3 m (17 ft, 5 in.) Five-section: 4.65 m (15 ft, 3 in.) and 4.65 m (15 ft, 3 in.)
Transport HeightOne-section: 2.2 m (7 ft, 2 in.) Three-section: 3.35 m (11 ft), 3.96 m (13 ft), 4.27 m (14 ft), and 4.19 m (13 ft, 9 in.) Five-section: 3.9 m (12 ft, 10 in.) and 4.34 m (14 ft, 3 in.)
Underframe Clearance12 ft
Underframe Clearance3.66 m
Transport LengthWithout rear hitch One-section: 9.2 m (30 ft, 3 in.) Three-section: 10.06 m (33 ft) Five-section: 12.19 m (40 ft)
Working WidthGang angle at 0 degrees One-section: 4.37 m (14 ft, 4 in.) Three-section: 6.25 m (20 ft, 6 in.), 7.75 m (25 ft, 5 in.), 9.2 m (30 ft, 3 in.), and 10.3 m (33 ft, 10 in.) Five-section: 13.26 m (43 ft, 6 in.) and 15.1 m (49 ft, 6 in.)
Depth ControlSingle point and TruSet™ system
Maximum Operating Depth0-6 in.
Maximum Operating Depth0-15.24 cm
Operating Speed8-10 mph
Operating Speed12.9-16.1 km/h
