Features
Integrated Fertilizer System
The integrated fertilizer system allows for precise nutrient application with stainless steel meters and scales for reliable performance. The system reduces soil compaction and increases operational efficiency and profitability, holding up to 20,000 lb (9072 kg) of fertilizer and utilizing advanced technology for consistent delivery.
Versatile Tillage Options

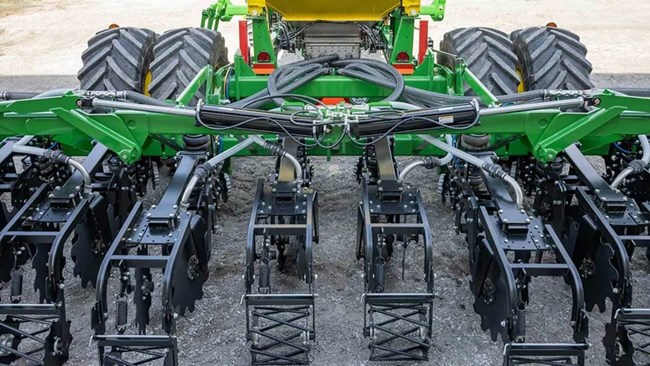

The strip till offers flexibility with dual coulter or shank tillage options. Dual coulters allow for early field access, making it easier to prepare the seedbed, while shanks offer increased soil fracturing in tougher conditions and permit the application of anhydrous ammonia. This adaptability is ideal for a variety of field conditions.
Precision Guidance Technology
Precision guidance technology ensures optimal strip-till performance by maximizing nutrient utilization and improving seed placement accuracy. This technology enables efficient execution through features like Active Implement Guidance, AutoPath™, and shared signals from StarFire™ receivers, enhancing overall productivity.
Specifications
Tires and Wheels
| Mechanical Stabilizer Wheels | (2) 240/80R15 125 D (8-bolt hub) |
| Main Frame Wheels | Dual 600/70R30 159D |
Clearance
| Operating Clearance | 508 mm |
| Operating Clearance | 20 in. |
| Row-Unit Travel | 8 in. |
| Row-Unit Travel | 203 mm |
Lead Coulter
| Blade Diameter | 17 in. |
| Blade Diameter | 432 mm |
| Blade Type | 13-wave |
Dry Fertilizer Delivery
| Dry Fertilizer Tank Capacity | 9027 kg |
| Dry Fertilizer Tank Capacity | 20000 lb. |
Row Cleaners
| Row Cleaners Type | Notched disk blade |
| Row Cleaners Diameter | 13 in. |
| Row Cleaners Diameter | 330 mm |
Dual Coulter Option
| Maximum Operating Speed | 10 mph |
| Maximum Operating Speed | 16 km/h |
| Maximum Working Depth | 6 in. |
| Maximum Working Depth | 152 mm |
| Blade Diameter | 508 mm |
| Blade Diameter | 20 in. |
| Blade Spacing | 127 mm |
| Blade Spacing | 5 in. |
| Blade Type | Dual 13-wave |
Hitch
| Rear Hitch | Optional wagon hitch |
| Rear Hitch Maximum Gross Vehicle Weight (GVW) - Wagon Hitch | 25000 lb. |
| Rear Hitch Maximum Gross Vehicle Weight (GVW) - Wagon Hitch | 11340 kg |
| Hitch Category | 4/4HD/5 |
Tractor Compatibility
| Power Requirements Per Shank | 30-37.5 hp |
| Power Requirements Per Shank | 22-28 kW |
| Hydraulic Flow Requirements | 37-83 gpm |
| Hydraulic Flow Requirements | 140-314 L/min |
| Selective Control Valves (SCVs) Required | 4-6 |
Dimensions
| Transport Height | 15 ft, in. |
| Transport Height | 4.6 m |
| Transport Width | 5.4 m |
| Transport Width | 17, 7 ft, in. |
| Working Width | 30 ft |
| Working Width | 9.1 m |
Depth Control
| Depth Control | Pneumatic row-unit down pressure |
Weight
| Machine Weight | 16103 kg |
| Machine Weight | 35500 lb. |
Machine Configuration
| Row Spacing | 508 mm |
| Row Spacing | 20 in. |
| Number of Rows | 18 |
| Fold Type | Front fold |
| Frame Sections | 3 |
Containment Coulters
| Containment Coulters Diameter | 25 in. |
| Containment Coulters Diameter | 625 mm |
| Containment Coulters Type | Sawtooth |
Shank Option
| Maximum Operating Speed | 12.9 km/h |
| Maximum Operating Speed | 8 mph |
| Maximum Working Depth | 11 in. |
| Maximum Working Depth | 280 mm |
