Features
TruSet™ Depth Control
TruSet™ technology allows on-the-go adjustments of tillage depth from the tractor seat. Operators can modify depth settings and implement settings using in-cab controls, matching varying field conditions seamlessly and enhancing productivity without leaving the cab.
Internal Basket Scrapers
The internal basket scraper allows for a uniform field finish in wet conditions because the baskets do not need to be raised out of ground to avoid plugging and can stay in the ground 100 percent of the time.
Fore-Aft Ripper Shank Spacing

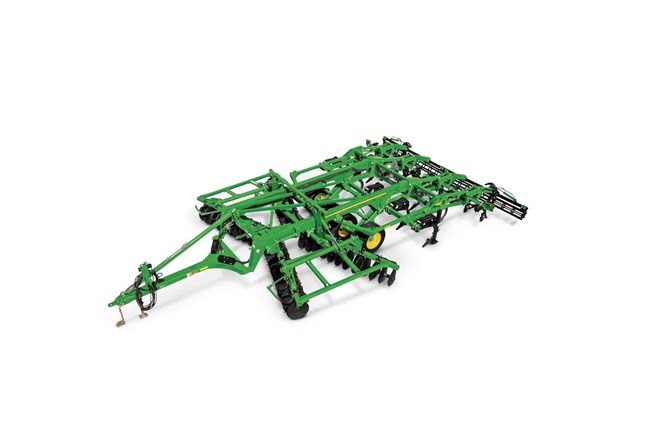

The 2730 Combination Ripper is designed with 50-in. (1270-mm) fore-aft shank spacing to enhance residue flow and improve soil disbursement. This configuration, along with a 24-in. (610-mm) side-to-side spacing, maximizes fracture of hardpan across the entire soil profile, creating an optimal environment for root development and nutrient uptake.
Specifications
Additional Features
| Option 1 | Hydraulically adjustable finishing attachments |
| Option 2 | Knife-edge rolling basket |
| Option 3 | Round-bar rolling basket |
| Option 4 | Coil-tine harrow |
Rear Conditioner
| Description | Solid-spherical low concavity closing disks (notched optional) |
| Adjustments | TruSet in-cab controls Mechanical |
| Base Equipment Blades | Individual dual mount |
| Base Equipment Blades - Size | 18 in. |
| Base Equipment Blades - Size | 45.7 cm |
| Bearings | Sealed, maintenance-free |
Mulching Disk Components
| Description | X-type configuration at front of tool |
| Depth Control | TruSet in-cab controls Single-point depth control |
| Maximum Depth | 8 in. |
| Maximum Depth | 20.3 cm |
| Type Of Standard | C-spring |
| Base Equipment Blades | Solid spherical low-concavity disk blades |
| Base Equipment Blades - Size | 26x0.25 in. |
| Base Equipment Blades - Size | 660x6.4 mm |
| Blade Spacing | Individual: 45.7 cm 18 in. Effective - 22.9 cm 9 in. Disk gang: 27.9 cm 11 in. Effective: 14 cm 5.5 in. |
| Front Frame Angle (Fixed) | 18 degree (angle) |
| Rear Frame Angle | 18 degree (angle) |
| Bearings | Sealed, maintenance-free |
| Scraper | Heavy-duty floating combination scraper (base option) |
Depth
| Maximum Operating Depth | 16 in. |
| Maximum Operating Depth | 40.6 cm |
Ground-Engaging Components
| Type | Wingless, LaserRip™ II points: 12.7 cm 5 in. 17.8 cm 7 in. 25.4 cm 10 in. |
| Coverboards | On parabolic standards: 10.2 cm 4 in. 15.2 cm 6 in. 20.3 cm 8 in. |
Standards, Option 1
| Trip Force | Cushion-trip standard: 1,859.7 kg 4,100 lb |
| Trip Height | Shear bolt protected above: 33 cm 13 in. |
| Type | Parabolic with or without wear shins, straight with wear shins |
Speed
| Operating Speed | 5-7 mph |
| Operating Speed | 8-11.3 km/h |
Standards
| Spacing | 24 in. |
| Spacing | 61 cm |
Hydraulics
| Option 1 | 4 SCVs (depth control, front disk, rear conditioner, optional rolling baskets) at 17,237 kPa 2,500 psi for optimum raise times |
| Option 2 | 5 SCVs (depth control, front disk, rear conditioner, wing fold, optional rolling baskets) at 17,237 kPa 2,500 psi for optimum raise times |
Wheels
| Wheel Type | Tandem walk-over wheels |
Transport Clearance
| Standard Transport Clearance | 13 in. |
| Standard Transport Clearance | 33 cm |
Tool
| Configuration | Disk - Disk - Ripper - Closing Disk - Finishing Attachment |
| Option 1 | Folding 9-standard on spacing of 61 cm 24 in. |
Working Width
| Working Width - Option 1 | 18 ft |
| Working Width - Option 1 | 5.5 m |
Underframe Clearance
| Maximum Underframe Clearance | 37.5 in. |
| Maximum Underframe Clearance | 95.25 cm |
Hitch
| Design | Single tube |
| Fore-Aft Adjustment | Hitch turnbuckle |
Horsepower
| Horsepower Required Per Standard | 52-64 hp |
| Horsepower Required Per Standard | 38.9-47.6 kW |
Depth Control
| Option 1 | Single-point crank |
| Option 2 | TruSet™ tillage |
Transport Width
| Transport Width - Option 1 | Individual blades: 5.7 m 18.8 ft Disk gangs: 5.8 m 19.1 ft |
