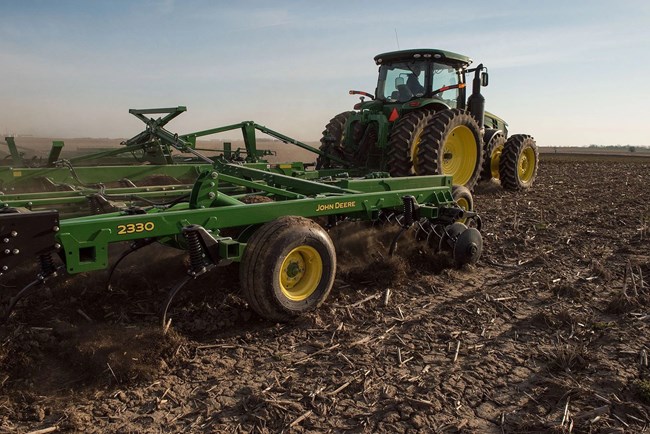

John Deere 2330 (3-Section, 33 ft, 9 in.)

New Products / John Deere / John Deere Products / Tillage Equipment / Mulch Finishers / 2330 (3-Section, 33 ft, 9 in.)

Double tap to zoom



Features

Large Range of Working Widths

Field cultivator with spring-tooth tines working tilled soil in a farm field.

The 2330 Mulch Finisher offers a broad range of working widths from 6.6 to 17.2 m (21 ft, 9 in. to 56 ft, 3 in.), catering to various acreage and horsepower needs. It can cover up to 27.5 ha (68 acres) per hour at speeds of 16 km/h (10 mph), optimizing productivity and efficiency across different job requirements.

Level-Lift™ Frame

John Deere tractor pulling a field cultivator across a partially tilled field, with worked soil on the right, untouched residue on the left and farm buildings in the distance

The Level-Lift™ frame ensures even operation across all depths, providing consistent gang and sweep depth for thorough seedbed preparation. This adjustment ensures a flat seedbed floor and uniform soil profile for planting. It supports consistent and uniform chemical placement and mixing.

Low-Concavity Disks

Close-up of a row of smooth black disc blades mounted on a green mulch finisher implement, shown over a gravel surface

The 2330 Mulch Finisher features 20-in. x 0.2-in. (508-mm x 5-mm) low-concavity disk blades for effective residue slicing, with blades spaced 184 mm apart and fixed at an 8-degree angle. These design elements ensure aggressive cutting action while minimizing soil ridging and enabling consistent seedbed preparation.

Specifications

Rear Harrow

Spike Tooth Harrow Option 1Adjustable 6-bar spike-tooth
Spike Tooth Harrow Option 1 - Rank Spacing12 in.
Spike Tooth Harrow Option 1 - Rank Spacing30.5 cm
Spike Tooth Harrow Option 1 - Spike Spacing10.5 in.
Spike Tooth Harrow Option 1 - Spike Spacing26.67 cm
Spike Tooth Harrow Option 1 - Effective Spacing1.75 in.
Spike Tooth Harrow Option 1 - Effective Spacing4.45 cm
Spike Tooth Harrow Option 1 - Spike Dimension0.75x0.75x12 in.
Spike Tooth Harrow Option 1 - Spike Dimension1.9x1.9x30.5 cm
Spike Tooth Harrow Option 1 - Angle15-45 degree (angle)
Coil Tine Harrow Option 1Adjustable 5-bar coil-tine
Coil Tine Harrow Option 1 - Rank Spacing15 in.
Coil Tine Harrow Option 1 - Rank Spacing38.1 cm
Coil Tine Harrow Option 1 - Tine Spacing12.5 in.
Coil Tine Harrow Option 1 - Tine Spacing31.75 cm
Coil Tine Harrow Option 1 - Effective Spacing2.5 in.
Coil Tine Harrow Option 1 - Effective Spacing63.5 cm
Coil Tine Harrow Option 1 - Tine Dimensions16 in.
Coil Tine Harrow Option 1 - Tine Dimensions40.6 cm
Coil Tine Harrow Option 1 - Angle15-60 degree (angle)
Coil Tine Harrow Option 1 - AdjustmentsDepth, pitch, and angle
Rolling Basket Harrow Option 14-bar spike with single flat-bar rolling basket
Rolling Basket Harrow Option 1 - Spike/Tine12 in.
Rolling Basket Harrow Option 1 - Spike/Tine30.5 cm
Rolling Basket Harrow Option 1 - Rank Spacing12 in.
Rolling Basket Harrow Option 1 - Rank Spacing30.5 cm
Rolling Basket Harrow Option 1 - Spike/Tine Spacing10.5 in.
Rolling Basket Harrow Option 1 - Spike/Tine Spacing26.67 cm
Rolling Basket Harrow Option 1 - Effective Spacing3.5 in.
Rolling Basket Harrow Option 1 - Effective Spacing8.89 cm
Rolling Basket Harrow Option 1 - Spike/Tine Dimensions0.75x0.75x12 in.
Rolling Basket Harrow Option 1 - Spike/Tine Dimensions1.9x1.9x30.5 cm
Rolling Basket Harrow Option 1 - Basket Diameter14 in.
Rolling Basket Harrow Option 1 - Basket Diameter35.56 cm
Rolling Basket Harrow Option 1 - BearingsDura-Flex, self-aligning and greaseable
Rolling Basket Harrow Option 1 - Bearings Diameter3 in.
Rolling Basket Harrow Option 1 - Bearings Diameter7.62 cm
Rolling Basket Harrow Option 1 - AdjustmentsAngle and aggressiveness
Rolling Basket Harrow Option 24-bar spike with single, round-bar rolling basket
Rolling Basket Harrow Option 2 - Spike/Tine12 in.
Rolling Basket Harrow Option 2 - Spike/Tine30.5 cm
Rolling Basket Harrow Option 2 - Rank Spacing12 in.
Rolling Basket Harrow Option 2 - Rank Spacing30.5 cm
Rolling Basket Harrow Option 2 - Spike/Tine Spacing10.5 in.
Rolling Basket Harrow Option 2 - Spike/Tine Spacing26.67 cm
Rolling Basket Harrow Option 2 - Effective Spacing3.5 in.
Rolling Basket Harrow Option 2 - Effective Spacing8.89 cm
Rolling Basket Harrow Option 2 - Spike/Tine Dimensions0.75x0.75x12 in.
Rolling Basket Harrow Option 2 - Spike/Tine Dimensions1.9x1.9x30.5 cm
Rolling Basket Harrow Option 2 - Basket Diameter14 in.
Rolling Basket Harrow Option 2 - Basket Diameter35.6 cm
Rolling Basket Harrow Option 2 - BearingsDura-Flex, self-aligning and greaseable
Rolling Basket Harrow Option 2 - Bearings Diameter3 in.
Rolling Basket Harrow Option 2 - Bearings Diameter7.62 cm
Rolling Basket Harrow Option 2 - AdjustmentsAngle and aggressiveness
Rolling Basket Harrow Option 33-bar coil with flat-bar rolling basket
Rolling Basket Harrow Option 3 - Spike/Tine16 in.
Rolling Basket Harrow Option 3 - Spike/Tine40.6 cm
Rolling Basket Harrow Option 3 - Rank Spacing15 in.
Rolling Basket Harrow Option 3 - Rank Spacing38.1 cm
Rolling Basket Harrow Option 3 - Spike/Tine Spacing9 in.
Rolling Basket Harrow Option 3 - Spike/Tine Spacing22.9 cm
Rolling Basket Harrow Option 3 - Effective Spacing3 in.
Rolling Basket Harrow Option 3 - Effective Spacing7.62 cm
Rolling Basket Harrow Option 3 - Spike/Tine Dimensions16 in.
Rolling Basket Harrow Option 3 - Spike/Tine Dimensions40.6 cm
Rolling Basket Harrow Option 3 - Basket Diameter14 in.
Rolling Basket Harrow Option 3 - Basket Diameter35.6 cm
Rolling Basket Harrow Option 3 - BearingsDura-Flex, self-aligning and greaseable
Rolling Basket Harrow Option 3 - Bearings Diameter3 in.
Rolling Basket Harrow Option 3 - Bearings Diameter7.62 cm
Rolling Basket Harrow Option 3 - AdjustmentsAngle and aggressiveness
Rolling Basket Harrow Option 43-bar coil with round-bar rolling basket
Rolling Basket Harrow Option 4 - Spike/Tine16 in.
Rolling Basket Harrow Option 4 - Spike/Tine40.6 cm
Rolling Basket Harrow Option 4 - Rank Spacing15 in.
Rolling Basket Harrow Option 4 - Rank Spacing38.1 cm
Rolling Basket Harrow Option 4 - Spike/Tine Spacing9 in.
Rolling Basket Harrow Option 4 - Spike/Tine Spacing22.9 cm
Rolling Basket Harrow Option 4 - Effective Spacing3 in.
Rolling Basket Harrow Option 4 - Effective Spacing7.62 cm
Rolling Basket Harrow Option 4 - Spike/Tine Dimensions16 in.
Rolling Basket Harrow Option 4 - Spike/Tine Dimensions40.6 cm
Rolling Basket Harrow Option 4 - Basket Diameter14 in.
Rolling Basket Harrow Option 4 - Basket Diameter35.6 cm
Rolling Basket Harrow Option 4 - BearingsDura-Flex, self-aligning and greaseable
Rolling Basket Harrow Option 4 - Bearings Diameter3 in.
Rolling Basket Harrow Option 4 - Bearings Diameter7.62 cm
Rolling Basket Harrow Option 4 - AdjustmentsAngle and aggressiveness

Disk Gangs

Depth Adjustment - Base EquipmentTruSet in-cab depth/pressure control and single-point depth control
Maximum Depth - Even With Sweep5 in.
Maximum Depth - Even With Sweep12.7 cm
Gang Angle8 degree (angle)
Blade Size20x0.197 in.
Blade Size50.8x0.5 cm
Blade Spacing7.25 in.
Blade Spacing18.42 cm
Blade ConcavityLow
Type of ScrapersCombination
Type Of SpoolSteel fabricated
Gang Shaft Diameter1.125 in.
Gang Shaft Diameter28.6 mm

Frame

TubingCenterframe - 3 m 10 ft, in. Rank tubes - 10.2x10.2 cm 4x4 in. Mainframe fore-aft tubes - 7.6x20.3 cm 3x8 in. Wing fore-aft tubes - 7.62x15.2 cm 3x6 in.
Number Of Ranks5
Fore-And-Aft134 in.
Fore-And-Aft340.4 cm
Underframe Clearance24 in.
Underframe Clearance61 cm

Working Widths

Working Widths - 3-Section10.29 m 33.75 ft

Standard Spacing

Standard Spacing9 in.
Standard Spacing22.9 cm

Fold

TypeFlex - 3-section

Electrical

Standard9-pin connector for warning lights, 12-volt required for 5-section models

Horsepower Required

Horsepower Required10-14 hp/ft
Horsepower Required24.5-34.2 kwPerMeter

Transport Width (Without Rear Harrow)

Transport Width (Without Rear Harrow) - 3-Section4.72 m 14.5 ft

Stabilizer Wheels

TypeMechanical stabilizer wheels and tires available on 3-section and 5-section
OptionsCastering with 280/70R15 tires (right- and left-hand sides)

Additional Information

Date Collected2025-10-22

Centerframe Depth Control Wheels And Tires

TypeCenterframe tires on Walk-Over tandem wheels
3-SectionIF320/70 R15 144D tires (four)

Operating Speed

Operating Speed6-10 mph
Operating Speed9.7-16 km/h

Rear Hitch

TelescopingYes
Tongue Weight Rating1500 lb.
Tongue Weight Rating680 kg
Wiring Harness For Transport LightsYes
Hydraulic Hoses And CouplersOne set

Operating Depth

Maximum Operating Depth6 in.
Maximum Operating Depth15.2 cm

Wing Frame Wheels And Tires

3-SectionIF320/70R15 tires (four)

Transport Height (Without Rear Harrow)

Transport Height (Without Rear Harrow) - 3-Section5.08 m 16.67 ft

Hydraulics

StandardThree selective-control valves (SCVs) required, hydraulic transport lockup
