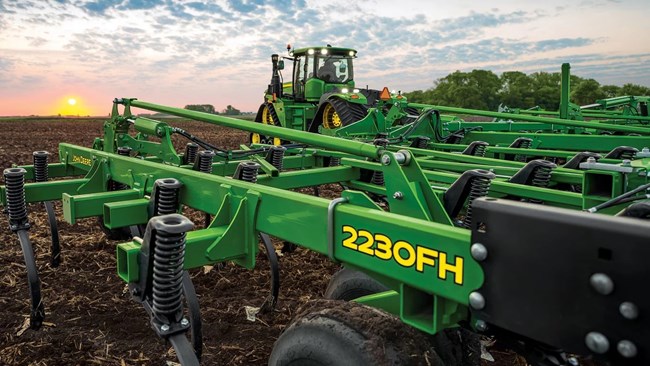

John Deere 2230FH Floating Hitch 3-Section Field Cultivator, 11-ft Center Frame, 42 ft, 6 in. Low Transport

New Products / John Deere / John Deere Products / Tillage Equipment / Field Cultivators / 2230FH Floating Hitch 3-Section Field Cultivator, 11-ft Center Frame, 42 ft, 6 in. Low Transport

Double tap to zoom



Features

Floating Hitch Frame

A green tractor pulling a tillage implement with multiple curved tines, shown in a side-view illustration against a blue sky

The 2230FH Field Cultivator's floating hitch frame provides exceptional ground-following capabilities. The frame is designed to operate independently of the tractor, maintaining a level position across the terrain and ensuring consistent depth from front to back.

Consistent Coverage with Split Spacing

Top-down view of a field cultivator in a field, with yellow overlay lines and circles highlighting spacing points across the working width of the machine

The field cultivator provides consistent seedbed preparation with true 152-mm (6-in.) split-the-middle spacing. This offers comprehensive coverage of fields, ensuring effective soil preparation and seedbed integrity.

Broad Range of Working Widths

John Deere tractor pulling a wide green field cultivator across a bare field, with multiple rows of shanks and tines working the soil under a clear sky

The 2230FH and 2230LL offer a wide range of working widths to meet varying productivity and agronomic needs. The 2230FH spans from 7.8 to 21.2 m (25.5 to 69.5 ft) and covers up to 34 hectares (84 acres) per hour, while the 2230LL ranges from 7.8 to 18.4 m (25.5 to 50.5 ft) and covers up to 24.7 hectares (61 acres) per hour. Together, these options allow producers to effectively match implement size with their operational requirements.

Specifications

Frame

Number of Ranks - 3-Section3.4-m (11-ft) center frame with 5-rank tube frame
Fore-And-Aft Clearance - On 2.7-m And 3.4-m (9-ft And 11-ft) Center Frames11.17 ft
Fore-And-Aft Clearance - On 2.7-m And 3.4-m (9-ft And 11-ft) Center Frames3.4 m
Fore-And-Aft Clearance - On 4.6-m (15-ft) Center Frames13.67 ft
Fore-And-Aft Clearance - On 4.6-m (15-ft) Center Frames4.2 m
Underframe Clearance24 in.
Underframe Clearance61 cm

Standard Options

Option 1TruPosition™ standard (Split-the-middle spacing)
Option 1 - Spec0.75x1.75x24 in.
Option 1 - Spec1.9x4.45x61 cm
Option 1 - Trip Force200 lb.
Option 1 - Trip Force90.7 kg
Option 1 - Trip Height10 in.
Option 1 - Trip Height25.4 cm
Option 1 - Maximum Operating Depth5 in.
Option 1 - Maximum Operating Depth12.7 cm
Option 1 - Underframe Clearance24 in.
Option 1 - Underframe Clearance61 cm
Option 1 - Spacing6 in.
Option 1 - Spacing15.2 cm
Option 2TruPosition
Option 2 - Spec0.625x1.75 in.
Option 2 - Spec1.59x4.45 cm
Option 2 - Trip Force150 lb.
Option 2 - Trip Force68 kg
Option 2 - Trip Height10 in.
Option 2 - Trip Height25.4 cm
Option 2 - Maximum Operating Depth5 in.
Option 2 - Maximum Operating Depth12.7 cm
Option 2 - Underframe Clearance24 in.
Option 2 - Underframe Clearance61 cm
Option 2 - Spacing6, 9 in.
Option 2 - Spacing15.2, 22.9 cm
Option 3S-tine
Option 3 - Spec0.5x1.75 in.
Option 3 - Spec1.27x4.45 cm
Option 3 - Underframe Clearance24 in.
Option 3 - Underframe Clearance61 cm
Option 3 - Spacing4.5 in.
Option 3 - Spacing11.4 cm

Rear Attachments

Spike Tooth Harrow Option 16-bar spike-tooth harrow
Spike Tooth Harrow Option 1 - Rank Spacing12 in.
Spike Tooth Harrow Option 1 - Rank Spacing30.5 cm
Spike Tooth Harrow Option 1 - Spike Spacing10.5 in.
Spike Tooth Harrow Option 1 - Spike Spacing26.67 cm
Spike Tooth Harrow Option 1 - Effective Spacing1.75, 3.5 in.
Spike Tooth Harrow Option 1 - Effective Spacing4.45, 8.89 cm
Spike Tooth Harrow Option 1 - Spike Dimension0.75x0.75x12 in.
Spike Tooth Harrow Option 1 - Spike Dimension1.9x1.9x30.5 cm
Spike Tooth Harrow Option 1 - Angle23 - 51 degree (angle)
Spike Tooth Harrow Option 1 - AdjustmentsTool-free three-position pin adjustment
Coil Tine Harrow Option 14-bar coil-tine harrow
Coil Tine Harrow Option 1 - Rank Spacing15 in.
Coil Tine Harrow Option 1 - Rank Spacing38.1 cm
Coil Tine Harrow Option 1 - Tine Spacing9 in.
Coil Tine Harrow Option 1 - Tine Spacing22.9 cm
Coil Tine Harrow Option 1 - Effective Spacing2.25 in.
Coil Tine Harrow Option 1 - Effective Spacing5.72 cm
Coil Tine Harrow Option 3 - Tine Dimensions16 in.
Coil Tine Harrow Option 3 - Tine Dimensions40.6 cm
Coil Tine Harrow Option 1 - Angle36 to 75 degree
Coil Tine Harrow Option 1 - AdjustmentsTool-free four-position pin adjustments ranging from 36 to 75 degrees
Rolling Basket Harrow Option 13-bar coil-tine with round-bar basket
Rolling Basket Harrow Option 1 - Rank Spacing15 in.
Rolling Basket Harrow Option 1 - Rank Spacing38.1 cm
Rolling Basket Harrow Option 1 - Effective Spacing3 in.
Rolling Basket Harrow Option 1 - Effective Spacing7.62 cm
Rolling Basket Harrow Option 1 - Spike/Tine Dimensions16 in.
Rolling Basket Harrow Option 1 - Spike/Tine Dimensions40.6 cm
Rolling Basket Harrow Option 1 - Basket Diameter14 in.
Rolling Basket Harrow Option 1 - Basket Diameter35.6 cm
Rolling Basket Harrow Option 1 - Bar TypeRound
Rolling Basket Harrow Option 1 - Bar Size1 in.
Rolling Basket Harrow Option 1 - Bar Size2.54 cm
Rolling Basket Harrow Option 1 - BearingsMaintenance-free
Rolling Basket Harrow Option 1 - AdjustmentsTool-free harrow adjustments ranging from 36 to 75 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 23-bar coil tine with flat-bar basket
Rolling Basket Harrow Option 2 - Rank Spacing15 in.
Rolling Basket Harrow Option 2 - Rank Spacing38.1 cm
Rolling Basket Harrow Option 2 - Effective Spacing3 in.
Rolling Basket Harrow Option 2 - Effective Spacing7.62 cm
Rolling Basket Harrow Option 2 - Spike/Tine Dimensions16 in.
Rolling Basket Harrow Option 2 - Spike/Tine Dimensions40.6 cm
Rolling Basket Harrow Option 2 - Bar TypeFlat
Rolling Basket Harrow Option 2 - Bar Size1.5x0.25 in.
Rolling Basket Harrow Option 2 - Bar Size3.8x0.64 cm
Rolling Basket Harrow Option 2 - BearingsMaintenance-free
Rolling Basket Harrow Option 2 - AdjustmentsTool-free harrow adjustments ranging from 36 to 75 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 33-bar spike tooth with round-bar basket
Rolling Basket Harrow Option 3 - Spike/Tine Spacing10.5 in.
Rolling Basket Harrow Option 3 - Spike/Tine Spacing26.7 cm
Rolling Basket Harrow Option 3 - Effective Spacing1.75 in.
Rolling Basket Harrow Option 3 - Effective Spacing4.45 cm
Rolling Basket Harrow Option 3 - Spike/Tine Dimensions0.75x0.75x12 in.
Rolling Basket Harrow Option 3 - Spike/Tine Dimensions1.9x1.9x30.5 cm
Rolling Basket Harrow Option 3 - AdjustmentsTool-free harrow adjustments ranging from 23 to 51 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 43-bar spike tooth with flat-bar basket
Rolling Basket Harrow Option 4 - Spike/Tine Spacing10.5 in.
Rolling Basket Harrow Option 4 - Spike/Tine Spacing26.7 cm
Rolling Basket Harrow Option 4 - Effective Spacing1.75 in.
Rolling Basket Harrow Option 4 - Effective Spacing4.45 cm
Rolling Basket Harrow Option 4 - Spike/Tine Dimensions0.75x0.75x12 in.
Rolling Basket Harrow Option 4 - Spike/Tine Dimensions1.9x1.9x30.5 cm
Rolling Basket Harrow Option 4 - AdjustmentsTool-free harrow adjustments ranging from 23 to 51 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)

Working Widths

Working Width - 3-Section42.5 ft (12.95 m)

Hydraulic Requirements

Standard2 SCVs (lift and fold) at 2500 psi for optimum raise times; additional SCV needed for optional rolling basket down pressure

Hitch

TypeFloating hitch: 6x10 in. (15.2x25.4 cm); T-hitch, cast-steel hitch link, optional rear hitch

Ground-Engaging Components

Ground-Engaging ComponentsWide variety of sweeps, shovels, and points

Transport Width (Without Rear Harrow)

Rigid Frame22.5 ft (6.86 m)
Transport Width (Without Rear Harrow) - 3-Section17.5 ft (5.33 m)

Stabilizer Wheels

TypeMechanical stabilizer wheels and tires (radial tire option available)
3-Section(6) 12.5-L-15 FI LR D tires

Depth Control

StandardSingle-point depth control in base
OptionsAdd TruSet™ in-cab depth/pressure control

Centerframe Depth Control Wheels And Tires

TypeCenter frame tires on Walk-Over tandem wheels (bias-ply tire option available)
3-Section(4) IF320/70 R15 144D tires

Operating Speed

Operating Speed6 - 10 mph
Operating Speed10 - 16 km/h

Electrical Requirements

Standard9-pin connector for warning lights
OptionsIf adding TruSet, tractor must be GreenStar™ system-ready

Standard Spacing

Standard Spacing - Split-The-Middle6, 9 in.
Standard Spacing - Split-The-Middle15.2, 22.9 cm
Standard Spacing - S-Tine4.5 in.
Standard Spacing - S-Tine11.4 cm

Fold

TypeOver-center fold

Operating Depth

Operating Depth5 in.
Operating Depth12.7 cm

Rear Hitch

Tongue Weight Rating1500 lb.
Tongue Weight Rating680.3 kg
Hydraulic Hoses And CouplersTwo circuits provided

Wing Frame Wheels And Tires

TypeWing frame tires on Walk-Over tandem wheels (radial tire option available)
3-Section(6) 12.5-L-15 FI LR D tires

Transport Height (Without Rear Harrow)

Transport Height (Without Rear Harrow) - 3-Section13.83 ft (4.22 m)

Horsepower Required

Horsepower Required8 to 12 hp/ft (19.6 to 29.4 kW/m)
