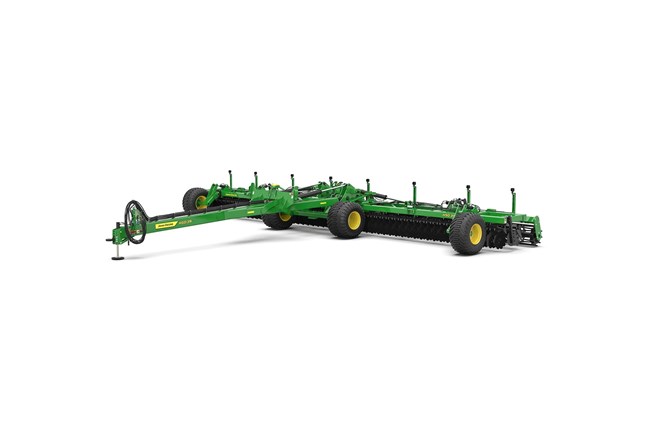

John Deere HSD39
Double tap to zoom
HSD39
Disks
Overview:
The HSD39 High Speed Disk delivers wide coverage with consistent residue management and soil engagement, supporting uniform field preparation across large fields.
- Autonomy-Ready Components In-Base Prepare You for the Future — Now
- High Working Speeds of Up to 14 mph (22.5 km/h)
- Improved* Residue Flow Helps Reduce Plugging in Tough Tillage Conditions
- Improved* Reliability and a Three-Year Frame Warranty *Compared to the 2680H
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Autonomy-Ready Tillage
Autonomy should be as straightforward as technology. With integrated components like implement lights, a receiver mast, and an implement receiver harness, autonomy-ready tillage equipment helps customers save time and money by ensuring today’s purchases are prepared for future autonomous operation.
Improved Reliability Backed by Warranty
The HSD Series introduces a new large cast pivot hinge and larger frame tubes, enhancing load distribution, durability, and ease of maintenance. It features a three-year frame warranty and individually serviceable pivot joints with integrated seals and composite bushings for improved uptime and reduced contamination.
Expanded Narrow Transport Offerings
The HSD Series provides eleven configurations of narrow transport tools, ideal for navigating narrow roads and bridges. It enhances maneuverability in width-restricted areas, making transport more efficient.
Specifications
Ground Engaging
| Front Rank Angle | 17 degree (angle) |
| Arm Travel | 22.9 cm |
| Rear Rank Tilt | 0 degree (angle) |
| Working Depth | 2 - 6 in. |
| Disk Spacing | 10 in. |
| Arm Suspension | Compressed rubber elements |
| Weight Per Blade | 148 kg |
| Standards | Independent disk arms |
| Front Rank Tilt | 0 degree (angle) |
| Arm Travel | 9 in. |
| Working Depth | 5.1 - 15.24 cm |
| Disk Spacing | 25.4 cm |
| Number Of Disks | 94 |
| Rear Rank Angle | 14 degree (angle) |
| Weight Per Blade | 327 lb. |
Dimensions
| Transport Height | 13, 6 ft, in. |
| Transport Width | 4.85 m |
| Working Width | 38, 7 ft, in. |
| Unfolded Width | 12.32 m |
| Unfolded Length | 32, 4 ft, in. |
| Transport Length | 29, 1 ft, in. |
| Track Width | 314.96 cm |
| Transport Height | 4.11 m |
| Transport Width | 15, 11 ft, in. |
| Working Width | 11.76 m |
| Unfolded Width | 40, 5 ft, in. |
| Unfolded Length | 9.86 m |
| Transport Length | 8.86 m |
| Track Width | 124 in. |
Compatibility
| Recommended Engine Power | 432.5 kW |
| Recommended Engine Power | 580 hp |
| Hitch Connection | Cat. V |
| Hitch Type | Pintle style drawn hitch |
Frame
| Degrees Of Wing Flex - Down | 7.5 degree (angle) |
| Degrees Of Wing Flex - Up | not limited |
| Frame Clearance | 55.9 cm |
| Frame Clearance | 22 in. |
Wheels And Tires
| Center Frame Tires | 710/40R22.5 |
| Wing Frame Tires | 600/50R22.5 |
