John Deere 2680H - Integral, 10 ft
Double tap to zoom
2680H - Integral, 10 ft
Disks
Overview:

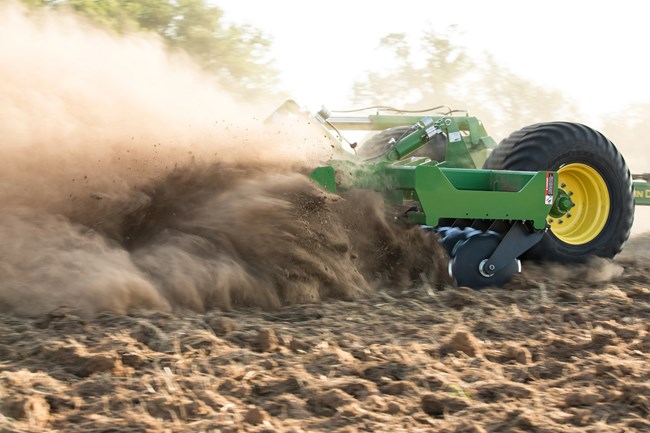

The John Deere 2680H 3pt. Integral, 10 ft, Mounted High-Performance Disk provides farmers with exceptional productivity and efficiency by offering a robust tillage solution that operates at speeds up to 14 mph, producing a high-quality seedbed finish with customizable rear attachments and adjustable blade settings.
- Cover More Acres at 10-14 mph (16-22.5 km/h)
- Mix and Bury Residue for Faster Breakdown
- Individually Mounted Blades
- Provides a Consistent Field Finish in Spring or Fall
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Wide Range of Working Widths
The 2680H High-Performance Disk offers various working widths from 2.5 to 3.6 m, allowing operators to cover acres swiftly, enhancing productivity. It operates at speeds up to 22.5 km/h and requires 34.25 kW/m, though conditions like hills may demand more horsepower.
Individually Mounted Blades
Equipped with individually mounted blades supported by rubber torsion elements, these blades can travel up to 22.9 cm (9 in.) over obstructions, maintaining soil contact and working pace. Replacing a single blade instead of an entire gang is also simplified.
Hydraulic Jack and Quick Couplers
The 2680H High-Performance Disk features a hydraulic jack for easier tractor disconnection with a lift capacity of 17,500 lb. It employs color-coded quick couplers for user-friendly implement connections.
Specifications
Ground Engaging
| Disk Spacing | 10 in. |
| Disk Spacing | 25.4 cm |
| Number Of Disks | 24 |
| Working Depth | 2 - 6 in. |
| Working Depth | 5.1 - 15.2 cm |
| Standards | Independent disk arms |
| Arm Suspension | Compressed rubber elements |
| Arm Travel | 9 in. |
| Arm Travel | 22.9 cm |
| Front Rank Angle | 17 degree (angle) |
| Front Rank Tilt | 0 degree (angle) |
| Rear Rank Angle | 14 degree (angle) |
| Rear Rank Tilt | 0 degree (angle) |
Dimensions
| Working Width | 10 ft, in. |
| Working Width | 3.05 m |
| Unfolded Width | 10, 11 ft, in. |
| Unfolded Width | 3.3 m |
| Transport Width | 10, 11 ft, in. |
| Transport Width | 3.3 m |
| Unfolded Length | 8, 3 ft, in. |
| Unfolded Length | 2.51 m |
| Transport Length | 8, 3 ft, in. |
| Transport Length | 2.51 m |
Compatibility
| Hitch Type | Integral 3-point connection (with quick hitch) |
| Hitch Connection | Category 2 and 3 |
| Recommended Engine Power | 150 hp |
| Recommended Engine Power | 111.9 kW |
Frame
| Frame Clearance | 22 in. |
| Frame Clearance | 55.9 cm |
