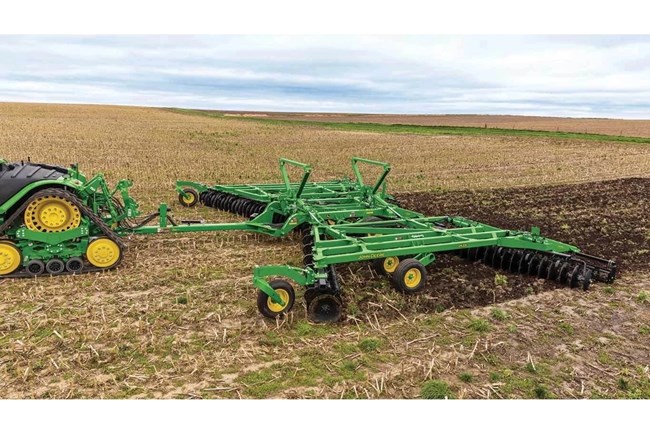

John Deere 2635 - 26 ft, 5 in.

New Products / John Deere / John Deere Products / Tillage Equipment / Disks / 2635 - 26 ft, 5 in.

Double tap to zoom



Features

TruSet™ Side-to-Side Feature

Logo with the words ‘TruSet Tillage’ in bold yellow text on a green and black background

Equipped with John Deere's TruSet system, the 2630 Series Disks provide advanced side-to-side section leveling. This feature allows operators to manage depth control conveniently from the tractor cab, increasing productivity and precision.

Hydraulic Fore-Aft Leveling

Close‑up of a green folding disk frame showing springs, hydraulic lines, and structural components above the wheels

This feature enables operators to level the disk from the tractor cab, enhancing convenience and precision. The hydraulic fore-aft leveling of the 2630 Series Disk helps maintain consistent depth across different terrains, optimizing field operations.

Multiple Hitch Options

Green tillage implement with a front hitch and hydraulic lines, showing angled disc blades arranged in rows behind the frame

Both Category 4 and 5 hitches are offered providing flexibility for different tractor drawbars. These options ensure compatibility with various widths, ranging from 6.3 m to 15 m, allowing for extensive adaptability across fields.

Specifications

Number of blades

Number of Front BladesOption 1: 30 with front and rear spacing of 280 mm (11 in.); Option 2: 33 with front spacing of 230 mm (9 in.) and rear spacing of 280 mm (11 in.)
Number of Rear BladesOption 1: 30 with front and rear spacing of 280 mm (11 in.); Option 2: 33 with front spacing of 230 mm (9 in.) and rear spacing of 280 mm (11 in.)
Total Number of BladesOption 1: 60 with front and rear spacing of 280 mm (11 in.); Option 2: 66 with front spacing of 230 mm (9 in.) and rear spacing of 280 mm (11 in.)

Machine

Working Width26.42 ft
Working Width8.05 m
Transport Width13.5 ft
Transport Width4.1 m
Transport Height12 ft
Transport Height3.7 m
Gang StandardsC-spring
Gang Angle21/19 degree degree (angle)
PurposePrimary
Working Depth8 in. in.
Working Depth20.3 cm cm
Weight Per Blade283 lb.
Weight Per Blade128.4 kg
Blade Size24 in.
Blade Size60.96 cm
Blade Spacing11; 9/11 in.
Blade Spacing27.9; 22.9/27.9 cm
Horsepower Per Foot8 to 11 hp hp/ft
Horsepower Per Foot5.97 to 8.2 kW kwPerMeter
Operating Speed5 to 7 mph mph
Operating Speed8.05 to 11.3 km/h km/h

Number of C-Springs

Main Frame FrontOption 1: 4 with spacing of 280 mm (11 in.); Option 2: 4 with front spacing of 230 mm (9 in.) and rear spacing of 280 mm (11 in.)
Main Frame RearOption 1: 4 with spacing of 280 mm (11 in.); Option 2: 4 with front spacing of 230 mm (9 in.) and rear spacing of 280 mm (11 in.)
1st Wing FrontOption 1: 4 with spacing of 280 mm (11 in.); Option 2: 6 with front spacing of 230 mm (9 in.) and rear spacing of 280 mm (11 in.)
1st Wing RearOption 1: 6 with spacing of 280 mm (11 in.); Option 2: 8 with front spacing of 230 mm (9 in.) and rear spacing of 280 mm (11 in.)
Total Number of C-SpringsOption 1: 20 with spacing of 280 mm (11 in.); Option 2: 22 with front spacing of 230 mm (9 in.) and rear spacing of 280 mm (11 in.)
