Features

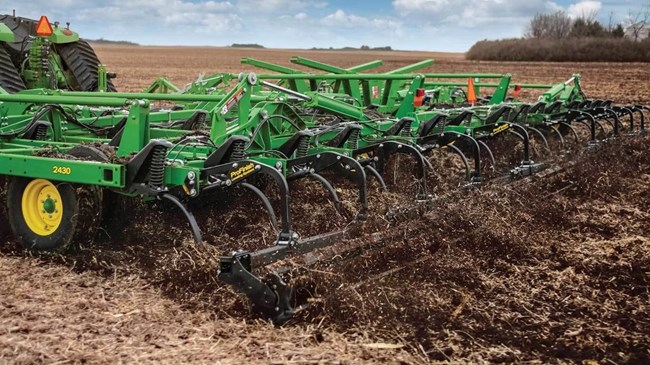

Autonomy Ready Tillage
Extend your day without putting in more hours and hit critical operating windows with autonomous tillage. Autonomy allows you complete other tasks like machine maintenance, grain hauling, and seed tendering while the tractor runs in the field.
Variety of Sweeps, Shovels, and Chisel Available
With six different ground engaging tools available to order, you can be sure that there is a tool that fits your residue management and field finish needs.
Adjust from the Cab with TruSet™
With TruSet™ Premium, you can adjust set depth, basket pressure, and level side-to-side from the cab and on-the-go. By responding to field conditions as they change, TruSet enables you to perform at a higher level and cover more acres per day.
Specifications
Transport Height
| 5-Section - Option 2 | 14.42 - 17.42 ft |
| 5-Section - Option 2 | 4.4 - 5.3 m |
| 5-Section - Option 2 Mainframe | 15 ft |
| 5-Section - Option 2 Mainframe | 4.57 m |
Standard Options
| Option 2 | TruPosition |
| Option 2 - Trip Height | 10 in. |
| Option 2 - Trip Height | 25.4 cm |
| Option 2 - Maximum Operating Depth | 12 in. |
| Option 2 - Maximum Operating Depth | 30.5 cm |
| Option 2 - Underframe Clearance | 28 in. |
| Option 2 - Underframe Clearance | 71.1 cm |
| Option 3 | TruDepth |
| Option 3 - Spec | 1.25x2x32 in. |
| Option 3 - Spec | 3.2x5.08x81.3 cm |
| Option 3 - Trip Height | 11 in. |
| Option 3 - Trip Height | 27.9 cm |
| Option 3 - Maximum Operating Depth | 12 in. |
| Option 3 - Maximum Operating Depth | 30.5 cm |
| Option 3 - Underframe Clearance | 32 in. |
| Option 3 - Underframe Clearance | 81.3 cm |
| Option 3 - Spacing | 12, 16 in. |
| Option 3 - Spacing | 30.5, 40.6 cm |
Working Widths
| 5-Section - Option 2 | 47 - 63 ft |
| 5-Section - Option 2 | 14.33 - 19.2 m |
| 5-Section - Option 2 Mainframe | 15 ft |
| 5-Section - Option 2 Mainframe | 4.57 m |
Rear Hitch
| Tubing Size | Rectangular box construction: 7.62x12.7 cm (3x5 in.) |
| Telescoping | Yes |
| Tongue Weight Rating | 100 lb. |
| Tongue Weight Rating | 45.4 kg |
| Wiring Harness For Transport Lights | Includes Y-harness, allowing both the chisel plow and towed implement lights to work simultaneously |
| Hydraulic Hoses And Couplers | Available as field attachment |
Standard Spacings
| Standard Spacings | 12, 16 in. |
| Standard Spacings | 30.5, 40.6 cm |
Transport Width
| 5-Section - Option 2 | 20 ft |
| 5-Section - Option 2 | 6.1 m |
| 5-Section - Option 2 Mainframe | 15 ft |
| 5-Section - Option 2 Mainframe | 4.57 m |
Operating Speed
| Operating Speed | 5 - 7 mph |
| Operating Speed | 8 - 11.3 km/h |
Horsepower Required
| Horsepower Required | 14.7 to 24.5 kW/m (6.0 to 10 hp/ft); Rigid and TruPosition standards on spacing: 30.5 cm (12 in.)- 11 to 18.35 kW/m (4.5 to 7.5 hp/ft); Rigid and TruPosition standards on spacing of: 40.6 cm (16 in.) |
Frame
| Tubing | High strength, box beam steel cross tubes: 10.2x10.2 cm (4x4 in.); End tubes, patented four-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm (2x5 in.) |
| Fore-And-Aft | 134 in. |
| Fore-And-Aft | 340.4 cm |
| Underframe Clearance | Rigid and TruPosition: 71.1 cm (28 in.); TruDepth: 81.3 cm (32 in.) |
Operation Depth
| Maximum Operating Depth | Rigid, TruPosition: 20.32 cm (8 in.); TruDepth: 30.5 cm (12 in.) |
Wheels
| Centerframe Depth Control Wheels And Tires - Option 1 | Drawn rigid: Castering front and Walk-Over tandem rear with six IF280/70R15 134D tires |
| Centerframe Depth Control Wheels And Tires - Option 5 | 5-section: 13.4 to 16.8 m (44 to 55 ft); Castering front and Walk-Over™ tandem rear with six IF 320/70R15 144D tires on center frame |
| Centerframe Depth Control Wheels And Tires - Option 6 | 5-section: 18.6 m (61 ft); Castering front and Walk-Over™ tandem rear with two IF 320/70R15 144D Tires on center frames, four 285/70R19.5 |
| Wing Frame Wheels And Tires - Option 2 | 5-section: 13.4 to 16.8 m (44 to 55 ft); Castering front with two 11L-15FI load range D and Walk-Over™ tandem rear with four 12.5L-15FI load range F on inner wing frames; Castering front and Walk-Over™ tandem rear with six 11L-15FI load range D on outer wing frames |
| Wing Frame Wheels And Tires - Option 3 | 5-section: 18.6 m (61 ft); Castering Front (2) 280/70R15 and Walk-over™ Tandem Rear with (4) 320/70R15 on Inner Wing Frames; Castering Front and Walk-over™ Tandem Rear with (6) 280/70R15 on Outer Wing Frames |
Hitch
| Hitch Description | Floating tubular T-hitch: on Rigid and 3-section: 15.2x25.4 cm (6x10 in.); On 5-section: 15.2x30.5 cm (6x12 in.) |
Additional Feature
| Option 1 | Coil-tine harrow |
| Option 2 | Hydraulic knife-edge rolling basket |
Depth Control
| Option 1 | TruSet™ Tillage in-cab controls and single-point crank-adjust |
| Option 2 | Single-point crank-adjust |
Warranty
| Warranty Description | 3-year frame and standard warranty |
Ground-Engaging Components
| Ground-Engaging Component Choices | Variety of sweeps, shovels, and chisel points |
