Features

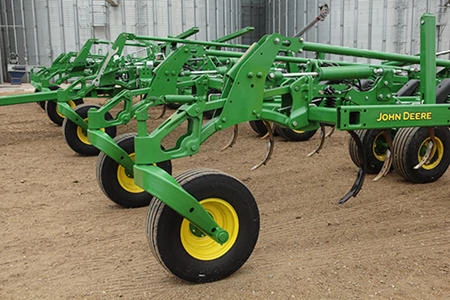

Robust Structural Design
The chisel plow is constructed with a high-strength, box beam steel frame. This design provides exceptional durability and supports efficient operation by minimizing flex under heavy loads, ensuring longevity and consistent performance.
Variety of Sweeps, Shovels, and Chisel Available
With six different ground engaging tools available to order, you can be sure that there is a tool that fits your residue management and field finish needs.
Adjust from the Cab with TruSet™
With TruSet™ Premium, you can adjust set depth, basket pressure, and level side-to-side from the cab and on-the-go. By responding to field conditions as they change, TruSet enables you to perform at a higher level and cover more acres per day.
Specifications
Operation Depth
| Maximum Operating Depth | Rigid, TruPosition: 20.32 cm (8 in.); TruDepth: 30.5 cm (12 in.) |
Standard Options
| Option 2 | TruPosition |
| Option 2 - Trip Height | 10 in. |
| Option 2 - Trip Height | 25.4 cm |
| Option 2 - Maximum Operating Depth | 12 in. |
| Option 2 - Maximum Operating Depth | 30.5 cm |
| Option 2 - Underframe Clearance | 28 in. |
| Option 2 - Underframe Clearance | 71.1 cm |
| Option 3 | TruDepth |
| Option 3 - Spec | 1.25x2x32 in. |
| Option 3 - Spec | 3.2x5.08x81.3 cm |
| Option 3 - Trip Height | 11 in. |
| Option 3 - Trip Height | 27.9 cm |
| Option 3 - Maximum Operating Depth | 12 in. |
| Option 3 - Maximum Operating Depth | 30.5 cm |
| Option 3 - Underframe Clearance | 32 in. |
| Option 3 - Underframe Clearance | 81.3 cm |
| Option 3 - Spacing | 12, 16 in. |
| Option 3 - Spacing | 30.5, 40.6 cm |
Operating Speed
| Operating Speed | 5 - 7 mph |
| Operating Speed | 8 - 11.3 km/h |
Wheels
| Centerframe Depth Control Wheels And Tires - Option 1 | Drawn rigid: Castering front and Walk-Over tandem rear with six IF280/70R15 134D tires |
Rear Hitch
| Tubing Size | Rectangular box construction: 7.62x12.7 cm (3x5 in.) |
| Telescoping | Yes |
| Tongue Weight Rating | 100 lb. |
| Tongue Weight Rating | 45.4 kg |
| Wiring Harness For Transport Lights | Includes Y-harness, allowing both the chisel plow and towed implement lights to work simultaneously |
| Hydraulic Hoses And Couplers | Available as field attachment |
Working Widths
| Drawn Rigid Fold - Option 1 | 11.67 - 17.33 ft |
| Drawn Rigid Fold - Option 1 | 3.56 - 5.28 m |
Hitch
| Hitch Description | Floating tubular T-hitch: on Rigid and 3-section: 15.2x25.4 cm (6x10 in.) |
Standard Spacings
| Standard Spacings | 12, 16 in. |
| Standard Spacings | 30.5, 40.6 cm |
Additional Feature
| Option 1 | Coil-tine harrow |
| Option 2 | Hydraulic knife-edge rolling basket |
Frame
| Tubing | High strength, box beam steel cross tubes: 10.2x10.2 cm (4x4 in.); End tubes, patented four-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm (2x5 in.) |
| Fore-And-Aft | 134 in. |
| Fore-And-Aft | 340.4 cm |
| Underframe Clearance | Rigid and TruPosition: 71.1 cm (28 in.); TruDepth: 81.3 cm (32 in.) |
Depth Control
| Option 1 | TruSet™ Tillage in-cab controls and single-point crank-adjust |
| Option 2 | Single-point crank-adjust |
Transport Width
| Drawn Rigid Fold - Option 1 | 11 - 16 ft |
| Drawn Rigid Fold - Option 1 | 3.35 - 4.88 m |
Warranty
| Warranty Description | 3-year frame and standard warranty |
Fold
| Type | Drawn Rigid |
Ground-Engaging Components
| Ground-Engaging Component Choices | Variety of sweeps, shovels, and chisel points |
Horsepower Required
| Horsepower Required | 14.7 to 24.5 kW/m (6.0 to 10 hp/ft); Rigid and TruPosition standards on spacing: 30.5 cm (12 in.)- 11 to 18.35 kW/m (4.5 to 7.5 hp/ft); Rigid and TruPosition standards on spacing of: 40.6 cm (16 in.) |
