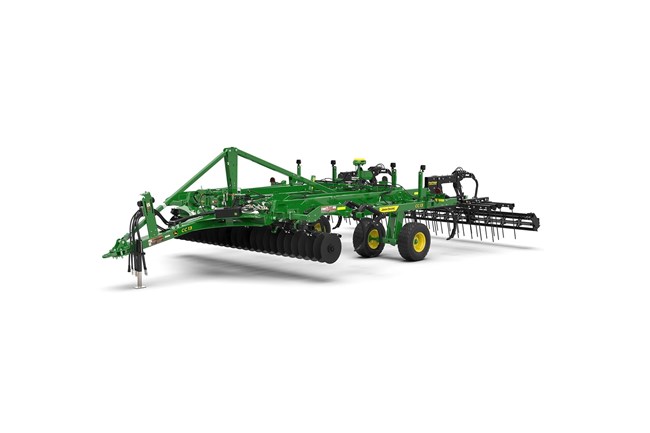

John Deere CC13
Double tap to zoom
CC13
Chisel Plows and Coulter Chisels
Overview:
The CC13 Coulter Chisel provides consistent residue sizing and soil mixing, helping create more uniform field conditions and support efficient coverage across each pass.
- 13 Standards
- Autonomy Ready In-Base
- Truset™ Active In-Base
- Tackle Varying Crop Conditions With Minimal Operator Input
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Fall Tillage Faster
The CC Series gives you the ability to work wider and faster. By putting the CC Series in the field for primary tillage, you can finish faster and tackle whatever challenge is next.
Tech for the Future. Now.
The simplicity and uptime of the CC Series makes every model an ideal primary tillage tool to run autonomously. With little to no adjustment needed as conditions change, you can have peace of mind knowing the CC Series is getting work done.
Any Operator. Anytime.
The CC Series adapts easily to changing crop conditions with minimal input, and TruSet™ enables quick adjustments at the push of a button to maximize daily coverage.
Specifications
Weight
| Weight - With Coil-Tine Harrow And Rolling Basket | 14000 lb. |
| Weight - With Coil-Tine Harrow And Rolling Basket | 6350 kg |
| Weight - With Coil-Tine Harrow Only | 5897 kg |
| Weight - With Coil-Tine Harrow Only | 13000 lb. |
Standard Spacing
| Standard Spacing | 15 in. |
| Standard Spacing | 38.1 cm |
Standards
| Trip Height | 30.5 cm |
| Trip Height | 12 in. |
| Underframe Clearance | 81.3 cm |
| Underframe Clearance | 32 in. |
| Maximum Operating Depth | 25.4 cm |
| Maximum Operating Depth | 10 in. |
| Spacing | 38.1 cm |
| Spacing | 15 in. |
Frame
| Tubing | High strength, box beam steel cross tubes: 10.2x10.2 cm (4x4 in.); End tubes, patented four-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm (2x5 in.) |
| Fore-And-Aft | 134 in. |
| Fore-And-Aft | 340.4 cm |
| Underframe Clearance | 81.3 cm |
| Underframe Clearance | 32 in. |
Hitch
| Size | 15.2x25.4 cm |
| Size | 6x10 in. |
| Description | Floating tubular T-hitch |
Working Width
| Working Width | 16, 3 ft, in. |
| Working Width | 4.95 m |
Warranty
| Description | 3-year frame and standard warranty |
Operating Speed
| Operating Speed | 6-7 mph |
| Operating Speed | 9.6-11.3 km/h |
Operation Depth
| Recommended Operating Depth | 6-8 in. |
| Recommended Operating Depth | 15.2-20.3 cm |
| Maximum Depth | 10 in. |
| Maximum Depth | 25.4 cm |
Wheels
| Centerframe Wheels And Tires | 320/70R15 |
Horsepower Required
| Horsepower Required | 48.95-61.2 kwPerMeter |
| Horsepower Required | 20-25 hp/ft |
Depth Control
| Option 1 | TruSet™ Active in-cab controls and single-point crank-adjust |
Ground-Engaging Components
| Choice Of Ground-Engaging Components | Variety of shovels and chisel points |
Transport Width
| Maximum Transport Width | 18, 10 ft, in. |
| Maximum Transport Width | 5.8 m |
Fold
| Type | Rigid |
