Features
Choice of Rigid, TruPosition™, and Tru-Depth™ Standards
Offers options in standards: rigid for fewer obstructions, TruPosition™ with replaceable shanks for rocky terrains, and Tru-Depth™ for heavy draft conditions with increased trip force. These options cater to diverse soil needs and ensure customizable tillage efficiency.
Strong Mainframe Withstands Demanding Field Conditions

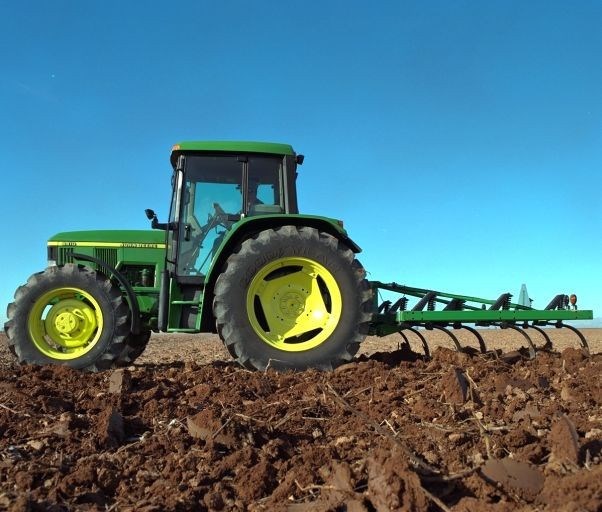

The 610 Chisel Plow features a large 4-in. x 4-in. (102-mm x 102-mm) tubular steel mainframe. Welded construction adds the inner strength that withstands twisting and pulling through demanding field conditions.
Offers a Variety of Sizes and Excellent Residue Flow
The 610 Chisel Plow is designed to match various tractor horsepower needs and field designs, with working widths ranging from 8 to 20 ft (2.4 to 6.1 m). Multiple standard options, such as Rigid, TruPosition™, and Tru-Depth™, enable it to handle diverse cropping conditions and residue levels.
Specifications
Standard Options
| Option 1 | Rigid standard |
| Option 1 - Spec | 1.5x2x28 in. |
| Option 1 - Spec | 3.2x5.1x71.1 cm |
| Option 1 - Maximum Operating Depth | 8 in. |
| Option 1 - Maximum Operating Depth | 20.3 cm |
| Option 1 - Underframe Clearance | 28 in. |
| Option 1 - Underframe Clearance | 71.1 cm |
| Option 1 - Spacing | 12, 16 in. |
| Option 1 - Spacing | 30.5, 40.6 cm |
| Option 2 | Standard: TruPosition |
| Option 2 - Spec | 1.25x2x28 in. |
| Option 2 - Spec | 3.2x5.1x71.1 cm |
| Option 2 - Trip Force | 550 lb. |
| Option 2 - Trip Force | 249.5 kg |
| Option 2 - Trip Height | 10 in. |
| Option 2 - Trip Height | 25.4 cm |
| Option 2 - Maximum Operating Depth | 12 in. |
| Option 2 - Maximum Operating Depth | 30.5 cm |
| Option 2 - Underframe Clearance | 28 in. |
| Option 2 - Underframe Clearance | 71.1 cm |
| Option 2 - Spacing | 12 in. |
| Option 2 - Spacing | 30.5 cm |
| Option 3 | Standard: Tru-Depth |
| Option 3 - Spec | 2x1.25x32 in. |
| Option 3 - Spec | 5.1x3.2x81.3 cm |
| Option 3 - Trip Force | 1250 lb. |
| Option 3 - Trip Force | 567 kg |
| Option 3 - Trip Height | 11 in. |
| Option 3 - Trip Height | 27.9 cm |
| Option 3 - Maximum Operating Depth | 12 in. |
| Option 3 - Maximum Operating Depth | 30.5 cm |
| Option 3 - Underframe Clearance | 32 in. |
| Option 3 - Underframe Clearance | 81.3 cm |
| Option 3 - Spacing | 12, 16 in. |
| Option 3 - Spacing | 30.5, 40.6 cm |
No Basket Harrows
| Option 1 | 3-bar coil tine |
| Option 1 - Rank Spacing | 12 in. |
| Option 1 - Rank Spacing | 30.5 cm |
| Option 1 - Spike/Coil Dimensions | 12 in. |
| Option 1 - Spike/Coil Dimensions | 30.5 cm |
Transport Width
| Rigid Frame - Option 1 | 9.83-19.58 ft |
| Rigid Frame - Option 1 | 2.99-5.97 m |
Standard Spacings
| Standard Spacings | 12 in. |
| Standard Spacings | 30.5 cm |
Working Widths
| Rigid Frame - Option 1 | 8 ft |
| Rigid Frame - Option 1 | 2.44 m |
Operating Speed
| Operating Speed | 5-7 mph |
| Operating Speed | 8-11.3 km/h |
Horsepower Required
| Horsepower Required | Rigid and spring-reset standards: 14.7 to 24.5 kW/m (6 to 10 hp/ft); Tru-Depth standards: 14.7 to 34.3 kW/m (6 to 14 hp/ft) |
Frame
| Tubing | High strength, box beam steel cross members: 10.2x10.2 cm (4x4 in.); Steel end tubes, welded construction: 5.1x10.2 cm (2x4 in.) |
| Fore-And-Aft | 72 in. |
| Fore-And-Aft | 182.9 cm |
| Underframe Clearance | Rigid and TruPosition standards: 71.1 cm (28 in.); Tru-Depth: 81.3 cm (32 in.) |
Operation Depth
| Maximum Operating Depth | 30.5 cm (12 in.) |
Wheels
| Stabilizer Wheels - Option 1 | Stabilizer wheel frames with 5.90 - 15 4PR implement tires (optional on 2.4-m [8-ft] base models, standard on 4.9-m [16-ft] base models) |
Depth Control
| Option 1 | Tractor 3-point hitch |
Fold
| Type | Non-fold (integral) |
Ground-Engaging Components
| Ground-Engaging Component Choices | Variety of sweeps, shovels, and chisel points |
