Features
Strong Mainframe Withstands Demanding Field Conditions

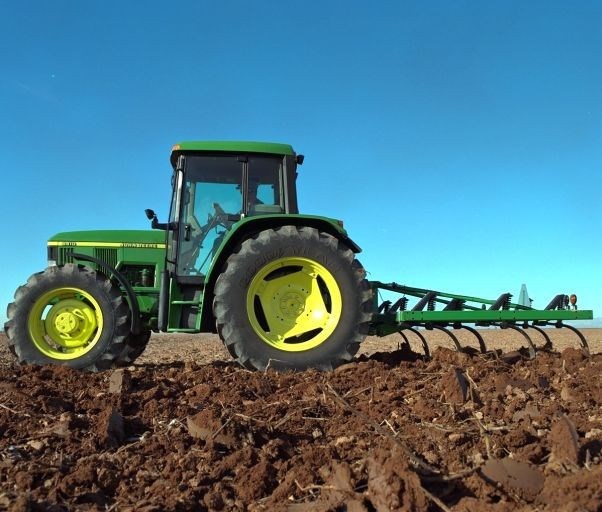

The 610 Chisel Plow features a large 4-in. x 4-in. (102-mm x 102-mm) tubular steel mainframe. Welded construction adds the inner strength that withstands twisting and pulling through demanding field conditions.
Choice of Rigid, TruPosition™, and Tru-Depth™ Standards
Offers options in standards: rigid for fewer obstructions, TruPosition™ with replaceable shanks for rocky terrains, and Tru-Depth™ for heavy draft conditions with increased trip force. These options cater to diverse soil needs and ensure customizable tillage efficiency.
Offers a Variety of Sizes and Excellent Residue Flow
The 610 Chisel Plow is designed to match various tractor horsepower needs and field designs, with working widths ranging from 8 to 20 ft (2.4 to 6.1 m). Multiple standard options, such as Rigid, TruPosition™, and Tru-Depth™, enable it to handle diverse cropping conditions and residue levels.
Specifications
Standard Options
| Option 1 | Rigid standard |
| Option 1 - Spec | 1.5x2x28 in. |
| Option 1 - Spec | 3.2x5.1x71.1 cm |
| Option 1 - Maximum Operating Depth | 8 in. |
| Option 1 - Maximum Operating Depth | 20.3 cm |
| Option 1 - Underframe Clearance | 28 in. |
| Option 1 - Underframe Clearance | 71.1 cm |
| Option 1 - Spacing | 12, 16 in. |
| Option 1 - Spacing | 30.5, 40.6 cm |
| Option 2 | Standard: TruPosition |
| Option 2 - Spec | 1.25x2x28 in. |
| Option 2 - Spec | 3.2x5.1x71.1 cm |
| Option 2 - Trip Force | 550 lb. |
| Option 2 - Trip Force | 249.5 kg |
| Option 2 - Trip Height | 10 in. |
| Option 2 - Trip Height | 25.4 cm |
| Option 2 - Maximum Operating Depth | 12 in. |
| Option 2 - Maximum Operating Depth | 30.5 cm |
| Option 2 - Underframe Clearance | 28 in. |
| Option 2 - Underframe Clearance | 71.1 cm |
| Option 2 - Spacing | 12 in. |
| Option 2 - Spacing | 30.5 cm |
| Option 3 | Standard: Tru-Depth |
| Option 3 - Spec | 2x1.25x32 in. |
| Option 3 - Spec | 5.1x3.2x81.3 cm |
| Option 3 - Trip Force | 1250 lb. |
| Option 3 - Trip Force | 567 kg |
| Option 3 - Trip Height | 11 in. |
| Option 3 - Trip Height | 27.9 cm |
| Option 3 - Maximum Operating Depth | 12 in. |
| Option 3 - Maximum Operating Depth | 30.5 cm |
| Option 3 - Underframe Clearance | 32 in. |
| Option 3 - Underframe Clearance | 81.3 cm |
| Option 3 - Spacing | 12, 16 in. |
| Option 3 - Spacing | 30.5, 40.6 cm |
No Basket Harrows
| Option 1 | 3-bar coil tine |
| Option 1 - Rank Spacing | 12 in. |
| Option 1 - Rank Spacing | 30.5 cm |
| Option 1 - Spike/Coil Dimensions | 12 in. |
| Option 1 - Spike/Coil Dimensions | 30.5 cm |
Transport Width
| Rigid Frame - Option 1 | 9.83 - 19.58 ft |
| Rigid Frame - Option 1 | 2.99 - 9.83 m |
Standard Spacings
| Standard Spacings | 12 in. |
| Standard Spacings | 30.5 cm |
Working Widths
| Rigid Frame - Option 1 | 20 ft |
| Rigid Frame - Option 1 | 6.1 m |
Operating Speed
| Operating Speed | 5 - 7 mph |
| Operating Speed | 8 - 11.3 km/h |
Horsepower Required
| Horsepower Required | Rigid and spring-reset standards: 14.7 to 24.5 kW/m (6 to 10 hp/ft); Tru-Depth standards: 14.7 to 34.3 kW/m (6 to 14 hp/ft ) |
Frame
| Tubing | High strength, box beam steel cross members: 10.2x10.2 cm (4x4 in.); Steel end tubes, welded construction: 5.1x10.2 cm (2x4 in.) |
| Fore-And-Aft | 72 in. |
| Fore-And-Aft | 182.9 cm |
Operation Depth
| Maximum Operating Depth | 12 in. (30.5 cm) |
Wheels
| Stabilizer Wheels - Option 1 | Stabilizer wheel frames with 5.90 - 15 4PR implement tires (optional on 2.4-m [8-ft] base models, standard on 4.9-m [16-ft] base models) |
Depth Control
| Option 1 | Tractor 3-point hitch |
Fold
| Type | Non-fold (integral) |
Ground-Engaging Components
| Ground-Engaging Component Choices | Variety of sweeps, shovels, and chisel points |
