Features
Improved Transport Dimensions
Redesigned folding and wing placement lower height and narrow width in transport, making it simpler to move the 2430C between fields and under obstacles.
Proven Frame Design
The robust frame design with a 3.4 m front-to-back span allows high residue flow and precise nutrient placement. The design offers structural integrity and accessibility, providing consistent operating depth and reduced maintenance time.

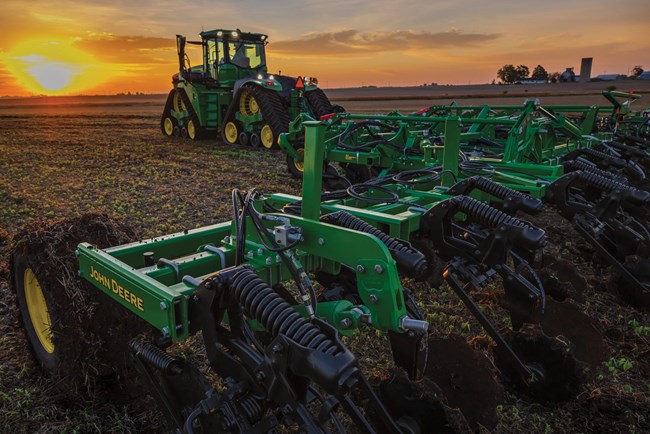

TruSet™ Tillage Technology
TruSet™ Tillage Technology provides precise depth control, essential for moisture conservation and optimal fertilizer placement. It allows for depth adjustments on-the-go, enhancing productivity and soil management.
Specifications
Tires and Wheels
| Wheel Mounting | Castering front with walk-over tandem rear |
| Tire Configuration | Mainframe tires: 320/70R15 145D (six); Inner wing tires: 320/70R15 145D (two), 280/70R15 134D (four); Outer wing tires: 280/70R15 134D (six) |
Standards
| Number Of Standards | 19 |
| Standard Trip Height | 280 cm |
| Standard Options | Tru-Depth™ conventional |
| Standard Trip Height | 11 in. |
| Standard Spacing | 76.2 cm |
| Standard Spacing | 30 in. |
| Standard Trip Force | 1250 lbf |
| Standard Operating Depth Range | 3 - 12 in. |
| Standard Options - Conventional Knife Options With Coulters And Closing Disks | Conventional or mole knife |
| Standard Trip Force | 5560 N |
| Standard Operating Depth Range | 76 - 305 cm |
Coulters
| Coulter Downforce | 600 lbf |
| Coulter Downforce | 2669 N |
| Blade Diameter | 560 x 4.5 mm |
| Blade Diameter | 22 x 0.177 in. |
| Blade Spacing | 76.2 cm |
| Blade Spacing | 30 in. |
Dimensions
| Overall Length | 32 ft |
| Overall Length | 9.75 m |
| Working Width | 47.5 ft |
| Working Width | 14.5 m |
| Transport Height | 14 ft, 1 in. (4.3 m) |
| Centerframe Width | 12 ft |
| Centerframe Width | 3.66 m |
| Transport Width | 19 ft, 8 in. (6 m) |
Clearance
| Fore-And-Aft Clearance | 11.17 ft |
| Fore-And-Aft Clearance | 3.4 m |
| Underframe Clearance | 110 cm |
| Underframe Clearance | 44 in. |
Tractor Compatibility
| Selective Control Valves (SCVs) Required | 2 |
| Engine Horsepower Requirement | 268.5 - 387.8 kW |
| Engine Horsepower Requirement | 360 - 520 hp |
| Operating Speed | 5 - 10 mph |
| Operating Speed | 8 - 16 km/h |
Closing Disks
| Trip Height | 465 cm |
| Trip Height | 19.5 in. |
| Side To Side Adjustment Range | 220 - 460 cm |
| Disk Blade Diameter | 460 x 3 mm |
| Disk Blade Diameter | 18 x 0.118 in. |
| Side To Side Adjustment Range | 8.8 - 17 in. |
| Mounting | Independently mounted arms with pin adjustment |
| Blade Type | Concave notched |
| Maximum Down Pressure | 50 lbf |
| Maximum Down Pressure | 222 N |
Hitch And Frame
| Frame Flex - Up | 10 degree (angle) |
| Rear Hitch Maximum Gross Vehicle Weight (GVW) | 25000 lb. |
| Rear Hitch | Fore/aft and side-to-side adjustable drawbar |
| Rear Hitch Maximum Gross Vehicle Weight (GVW) | 11300 kg |
| Hitch Link | Category 4 or 5 |
| Depth Control System | TruSet depth control system and single-point depth control system |
| Frame Flex - Down | 15 degree (angle) |
| Hitch System | Pull type: Floating hitch; Rigid T-hitch - 6 x 12 in. (152 x 305 mm) |
Machine Configuration
| Row Spacing | 76.2 cm |
| Row Spacing | 30 in. |
| Number Of Rows | 19 |
| Fold Type | Five-section fold |
Weight
| Conventional Machine Weight | 26320 lb. |
| Conventional Machine Weight | 11939 kg |
