John Deere 2530L - 60 ft 2600 Gallon
Double tap to zoom
2530L - 60 ft 2600 Gallon
Applicators
Overview:

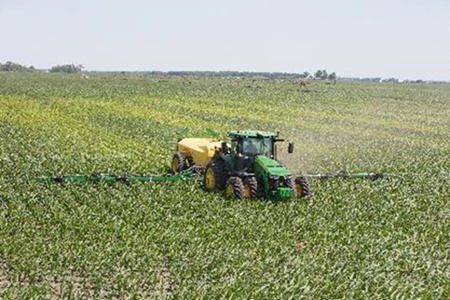

The 2530L - 60 ft 2600 gal. Nutrient Applicator is designed to support reliable performance, efficient operation, and operator confidence, combining practical features and integrated technology to help customers work productively across a wide range of conditions.
- Reduce Crop Damage With Hydraulic, High-Clearance Wing Kick
- Narrow Transport Width: Less Than 12 ft
- Heavy-Duty Coulters With Knife or Injector
- Hydraulic Wing Down Pressure, Flex-Hinge Design
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

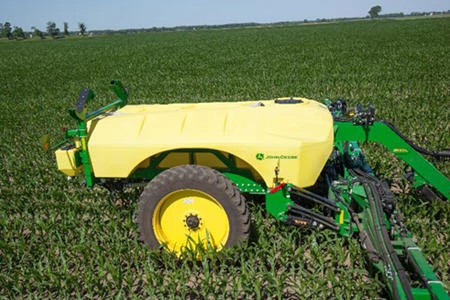

Compact Stealth Tank Design
The low-profile stealth tank offers 1050-gal. to1800-gal. (3975-L to 6814-L) capacity, creating even weight distribution for enhanced stability. Its design allows for improved visibility, quick cleanout, and an operating capability in varied row spaces, thus maximizing productivity.
Hydraulic Wing Down Pressure & Flex-Hinge Design
Ensures accuracy with dual-wing hydraulic down pressure and flex-hinge design, keeping coulters in the ground for consistent application. This feature aids in optimal penetration, even in hard soil, maintaining even depth across all ground conditions.

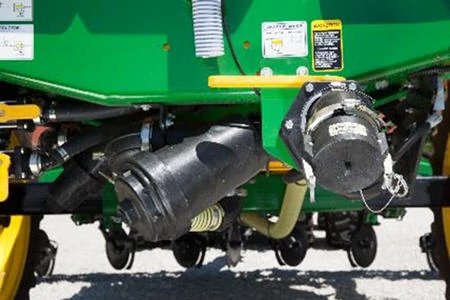

Standard Rinse Tank
A 10-gal. (37.9-L) fresh water rinse tank comes standard, providing convenience for washing hands and cleaning other parts. This feature enhances operational efficiency and hygiene, ensuring equipment stays clean and functional.
Specifications
Dimensions
| Working Width | 18.3, 20.1 m |
| Working Width | 60, 66 ft |
| Transport Height | With folding gauge wheel: 12 ft (3.66 m); Without: 12 ft, 7 in. (3.83 m) |
| Transport Length | 25 ft |
| Transport Width | With folding gauge wheel: 11ft, 10 in. (3.6 m); Without: 14 ft, 2 in (4.3 m) |
| Transport Length | 7.62 m |
Coulters
| Blade Diameter | 508 mm |
| Blade Diameter | 20 in. |
Weight
| Empty Weight - Transport Position | 19250 lb. |
| Empty Weight - Transport Position | 8731.7 kg |
Tractor Compatibility
| Engine Horsepower Requirement | 208.8 kW |
| Engine Horsepower Requirement | 280 hp |
| Operating Speed | 10 mph |
| Operating Speed | 16.1 km/h |
Hitch And Frame
| Frame Flex - Up | 8 degree (angle) |
| Hitch Link | Category 4 Pintle |
| Frame Flex - Down | 8 degree (angle) |
| Hitch System | Single Reach Drawn Tongue |
Clearance
| Underframe Clearance | 29.5 in. |
| Underframe Clearance | 74.9 cm |
Tires and Wheels
| Tire Configuration | Gauge Wheels: High flotation (standard); Hydraulic folding (option) |
Standards
| Standard Operating Depth Range | 5 in. |
| Standard Operating Depth Range | 12.7 cm |
Machine Configuration
| Fold Type | Side fold |
Capacities
| Solution System - Tank Size | 9842 L |
| Solution System - Tank Size | 2600 gal. |
