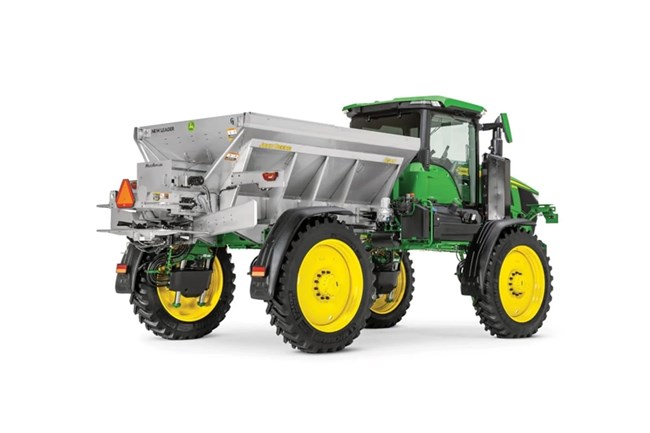

John Deere DS20
Double tap to zoom
DS20
Sprayer Attachments, Accessories and Implements
Overview:
When operations need efficient nutrient application without dedicated equipment, the Dry Nutrient Spinner Spreader Box enables quick conversion and delivers precise, wide-coverage application - including multi-product capability - supporting reduced passes, improved efficiency, and consistent performance across the application season.
- In as Few as 4 Hours, Convert Your Self-Propelled Sprayer Into a 3-Season Applicator
- Spread Up to 10 Tons of Fertilizer, With Spread Widths Up to 105 Feet Wide — 25% to 50% Wider Than Leading Competitors
- Apply Two Products Simultaneously at Predetermined or Variable Rates, Reducing Time in the Field, Compaction, and Fuel
- For 408R, 410R, 412R, 612R and 616R Sprayers (200 cu ft Capacity)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Turn Application Data Into Confident Decisions

Application doesn’t end at the field - it continues with the insights you gain. John Deere Operations Center connects your machines and data, giving you near real-time visibility into job progress, performance, and outcomes. With clear records and actionable insights, you can verify results, make informed adjustments, and continuously improve your application strategy for stronger performance season after season.
Stay Ahead of the Application Window

Application timing can make or break yield potential, but unpredictable weather and tight windows make it difficult to execute at the right moment. John Deere application solutions help you stay prepared and ready, with integrated technology and equipment that streamline setup, reduce delays, and keep you moving - so you can apply when conditions are right and protect crop performance across every acre.
Make Every Drop and Pass Count

Achieving consistent results across every acre requires precision you can trust. John Deere application equipment and technology deliver uniform coverage, accurate placement, and reliable rate control - helping ensure every pass is productive. By reducing overlap, minimizing waste, and maximizing efficiency, you can cover more acres per day while protecting inputs and maintaining high-quality application results.
Specifications
Capacity
| Capacity Without Second Product Bin | 200 cu ft |
| Capacity Without Second Product Bin | 5.6 m³ |
| Capacity With Second Product Bin | 106 cu ft |
| Capacity With Second Product Bin | 3 m³ |
| Capacity Of Second Product Bin | 66 cu ft |
| Capacity Of Second Product Bin | 1.9 m³ |
Dimensions
| Feedgate Height | 5.0 or 11.0 in. |
| Feedgate Height | 12.7 or 28.0 cm |
| Body Length | 132 in. |
| Body Length | 335.3 cm |
| Body Length - With Spinner Frame | 172 in. |
| Body Length - With Spinner Frame | 437.5 cm |
| Body Length Of Second Bin Insert | 60 in. |
| Body Length Of Second Bin Insert | 152.4 cm |
| Body Width | 96 in. |
| Body Width | 243.8 cm |
| Body Width - With Spinner Frame | 127 in. |
| Body Width - With Spinner Frame | 321.6 cm |
| Body Height | 56.85 in. |
| Body Height | 144.4 cm |
Spread width range
| Spread Pattern Width With Single-Product Bin | 60 to 105 ft |
| Spread Pattern Width With Single-Product Bin | 18.3 to 32 m |
| Spread Pattern Width With Second-Product Bin | 60 to 84 ft |
| Spread Pattern Width With Second-Product Bin | 18.3 to 25.6 m |
Weight
| Estimated Spreader Weight | 3240 lb. |
| Estimated Spreader Weight | 1467 kg |
| Second Product Bin Weight | 950 lb. |
| Second Product Bin Weight | 431 kg |
Application system
| Compatible Series | 408R, 410R, 412R, 612R and 616R Self-Propelled Sprayers and 400R and 600R Dry Spinner Spreaders |
| Product Spread | Dry fertilizer or lime |
| Second Product Bin | Optional |
| Spreader Material | 304 or painted 409 stainless steel |
| Conveyor System | #4 belt over chain |
| Rate Control Make | SpreadStar™ rate controller |
Spinner
| Disk Diameter | 24 in. |
| Disk Diameter | 61 cm |
| Fins Per Disk | 4 |
Additional Information
| Date Collected | 2021-03-01 |
