Features
Turn Application Data Into Confident Decisions
Application doesn’t end at the field - it continues with the insights you gain. John Deere Operations Center connects your machines and data, giving you near real-time visibility into job progress, performance, and outcomes. With clear records and actionable insights, you can verify results, make informed adjustments, and continuously improve your application strategy for stronger performance season after season.
Stay Ahead of the Application Window

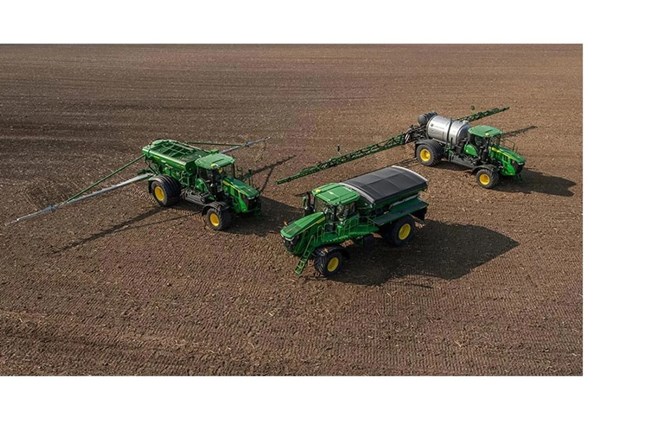

Application timing can make or break yield potential, but unpredictable weather and tight windows make it difficult to execute at the right moment. John Deere application solutions help you stay prepared and ready, with integrated technology and equipment that streamline setup, reduce delays, and keep you moving - so you can apply when conditions are right and protect crop performance across every acre.
Make Every Drop and Pass Count
Achieving consistent results across every acre requires precision you can trust. John Deere application equipment and technology deliver uniform coverage, accurate placement, and reliable rate control - helping ensure every pass is productive. By reducing overlap, minimizing waste, and maximizing efficiency, you can cover more acres per day while protecting inputs and maintaining high-quality application results.
Specifications
Powertrain
| Power Bulge | 298 kW |
| Peak Rated Power | 272 kW |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 29.5 L |
| Fuel Tank Capacity | 586 gal. |
| Transport Speed Range | 0 to 74 km/h |
| Displacement | 9 L |
| Power Bulge | 400 hp |
| Peak Rated Power | 365 hp |
| Displacement | 584 cu in. |
| Fuel Tank Capacity | 155 L |
| Transport Speed Range | 0 to 46 mph |
| Number Of Cylinders | 6 |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 7.8 gal. |
Air Boom
| Conveyor | Dual conveyors (left and right) with stainless-steel chain |
| Metering Application Rates | 6.7-139 kg/ha, 6-124 lb per acre, *Assuming a yellow metering roller, 16.1-km/h (10-mph) vehicle speed, and 1041.2 kg/m3 (65 lb/cu ft) material. This also assumes a CFR of 0.0442. |
| Conveyor Application Rates | 56-1345 kg/ha, 50-1200 lb per acre, *Assuming 16.1-km/h (10-mph) vehicle speed, 1041.2 kg/m3 (65 lb/cu ft) material, and 3.8-cm (1.5-in.) gate height. This also assumes CFR 0.2758. NOTE: 1345 kg/ha (1200 lb/acre) is the maximum rate between all bins with the assumptions listed above. 56 kg/ha (50 lb/acre) is the minimum rate from a single bin (1 or 2) with the assumptions listed above. |
| Box Options | Two-bin capable of 50/50 or 60/40 split |
| Box Length | 3.66 m |
| Air Boom Capacity | 300 cu ft |
| Automatic Section Control | John Deere Section Control |
| Controllable Metering RPM | Bin 3 (granular bin): 3-61 rpm |
| Gate Height Physical Adjustable Range | 2.5-5.3 cm, 1-2.1 in., NOTE: The gate is set from the factory at 3.8 cm (1.5 in.). It is not recommended to adjust the gate height below 3.8 cm (1.5 in.) as operators may experience conveyor performance issues such as belt stalling or it may affect rate accuracy. |
| Controllable Conveyor RPM Range | Bin 1 and Bin 2 running separately: 2-70 rpm, Bin 1 and Bin 2 running at the same time: 2-40 rpm |
| Air Boom Spread Width | 21.3 m |
| Oiler | None |
| Box Material | 304 painted stainless steel, 409 painted stainless steel |
| Volumetric Flow Rate | Less than 0.74 m3/min, 26.1 cu ft/min NOTE: Plugging of booms may occur if the sum of the flow rate of all bins is greater than spec. NOTE: To calculate the volumetric flow rate per bin: volumetric flow rate (cu ft/min) = (rate (lb/acre) x speed (MPH) x 0.1414)/density (cu ft). Constant of 0.1414 assumes 21.3-m (70-ft) spreading width. |
| Box Length | 12 ft |
| Air Boom Capacity | 8.49 m³ |
| Air Boom Type | AB485 Air Boom |
| Air Boom Spread Width | 70 ft |
Dry Spinner Spreader
| Conveyor | Single bin - belt-over chain, MultApplier and MultiBin - belt-over, stainless-steel chain |
| Oiler | Electric |
| Box Material | 409 painted stainless steel 304 stainless steel (option) |
| Box Options | Single bin, Two-bin MultApplier insert (option), Four-bin MultiBin insert (option) |
| Box Length | 4.27 m |
| Box Length | 14 ft |
| Dry Spinner Spreader Capacity | 9.34 m³ |
| Dry Spinner Spreader Capacity | 330 cu ft |
| Automatic Section Control | John Deere Section Control (G5 box) |
| Dry Spinner Spreader Spread Width Range | 18.29 to 27.43 m |
| Dry Spinner Spreader Spread Width Range | 60 to 90 ft |
| Dry Spinner Spreader Type | DN495 Dry Spinner Spreader |
Chassis, Frame, And Tires
| Rear Tires | 1050/50R32 tires - Alliance or Michelin (option) |
| Empty Weight With Single Bin | 31 lb. |
| Air Compressor | On-board air compressor |
| Steering | Front wheel |
| Turning Radius | 39 ft |
| Chassis | Dual c-channel frame |
| Front Tires | 750/50R26 tires - Alliance, Michelin®, or Trelleborg® (option) |
| Primary Brakes | IVT and four-wheel pneumatic brakes |
| Empty Weight With Single Bin | 14.061 kg |
| Ladder Raise/Lower | Automatic |
| Parking Brakes | IVT and two-wheel (rear) pneumatic parking brake |
| Turning Radius | 10.5 m |
| Suspension | Four-wheel leaf spring and front axle dampers |
Cab And Controls
| Display | 4600 CommandCenter |
| Lighting | Deluxe halogen lighting package Light-emitting diode (LED) lighting package (option) |
Additional Information
| Date Collected | 2017-10-10 |
| Beacon Lights | Front- and rear-mounted beacon lights |
