Features

Turn Application Data Into Confident Decisions

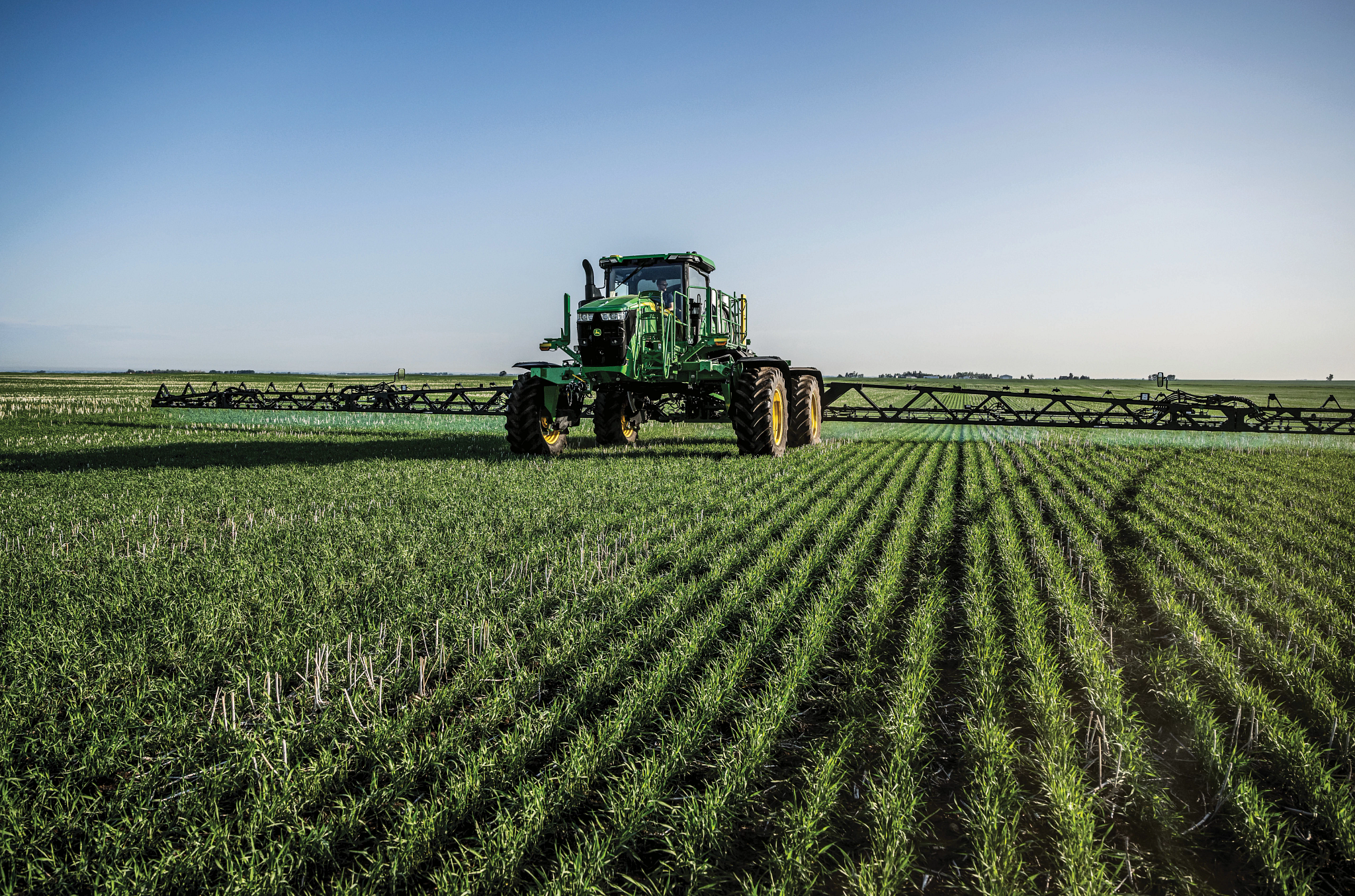

Wide view of a green agricultural sprayer driving through a large, neatly planted field, with long rows of crops stretching into the distance under a clear blue sky

Application doesn’t end at the field - it continues with the insights you gain. John Deere Operations Center connects your machines and data, giving you near real-time visibility into job progress, performance, and outcomes. With clear records and actionable insights, you can verify results, make informed adjustments, and continuously improve your application strategy for stronger performance season after season.

Stay Ahead of the Application Window

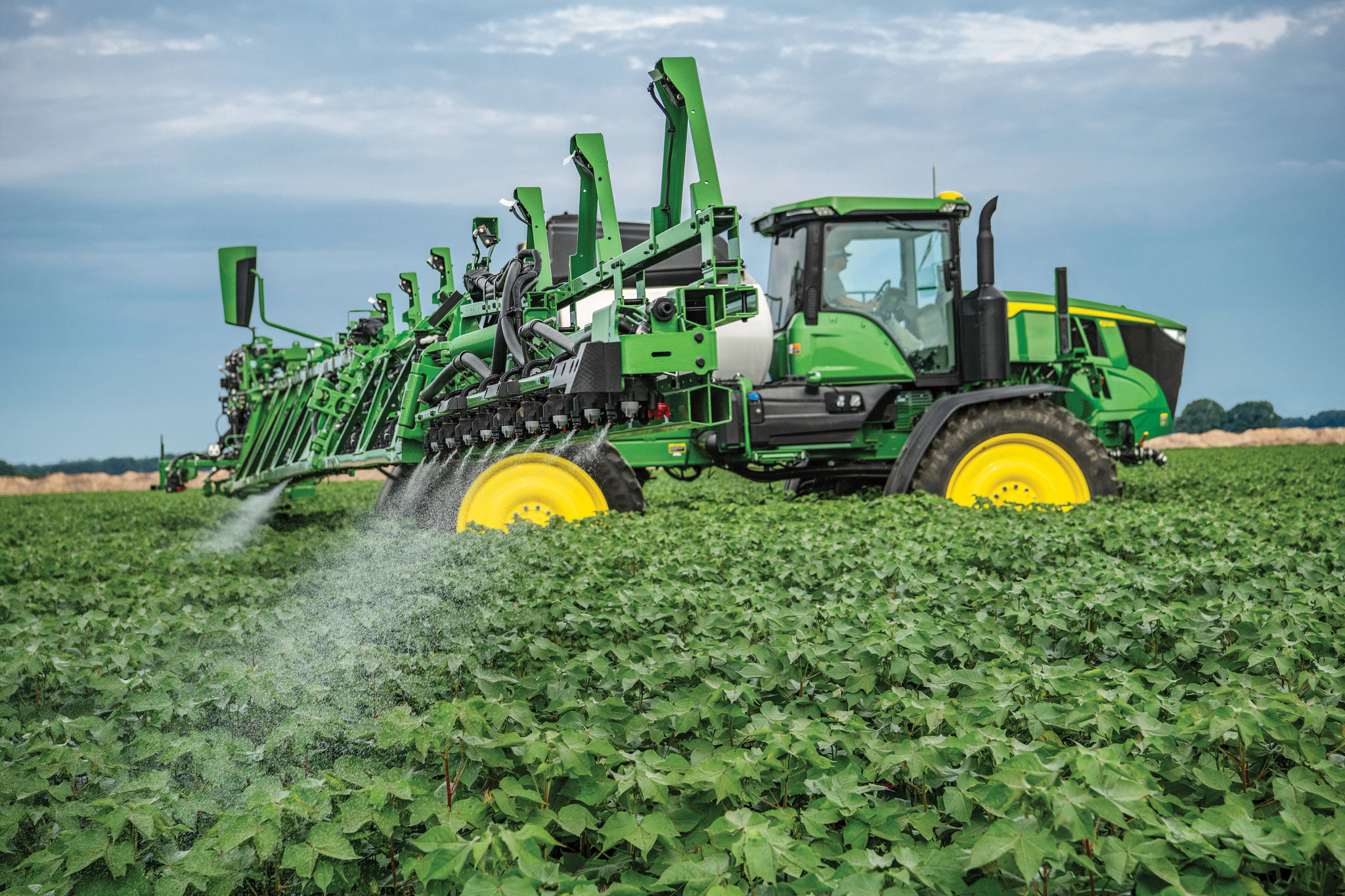

Large green agricultural sprayer with wide extended booms applying liquid across a dense, leafy crop field, with fine mist spraying onto the plants under an overcast sky

Application timing can make or break yield potential, but unpredictable weather and tight windows make it difficult to execute at the right moment. John Deere application solutions help you stay prepared and ready, with integrated technology and equipment that streamline setup, reduce delays, and keep you moving - so you can apply when conditions are right and protect crop performance across every acre.

Make Every Drop and Pass Count

Two people standing in a green crop field look at a smartphone together, while a large green agricultural sprayer with yellow wheels is parked nearby under a partly cloudy sky

Achieving consistent results across every acre requires precision you can trust. John Deere application equipment and technology deliver uniform coverage, accurate placement, and reliable rate control - helping ensure every pass is productive. By reducing overlap, minimizing waste, and maximizing efficiency, you can cover more acres per day while protecting inputs and maintaining high-quality application results.

Specifications

Engine

Rated Engine Power375 hp
Rated Engine Power280 kW
Maximum Engine Power415 hp
Maximum Engine Power309 kW
EmissionsFinal Tier 4 (FT4)
Number Of Cylinders6
Displacement549 cu in.
Displacement9 L
Alternator250 amp
Fuel Tank Capacity149.2 gal.
Fuel Tank Capacity565 L
Diesel Exhaust Fluid (DEF) Tank Capacity7.8 gal.
Diesel Exhaust Fluid (DEF) Tank Capacity29.5 L

Chassis

Dry CompatibleYes
Dry Compatible - Capacity200 cu ft
Dry Compatible - Capacity5.7 m³
SuspensionDual-strut independent wheel air-ride suspension
Crop Clearance With Standard Tires58 in.
Crop Clearance With Standard Tires147.3 cm
Front Tires380/105 R50, 420/95 R50, or 480/80 R50
Rear Tires380/105 R50, 420/95 R50, or 480/80 R50
Flotation Tires620/70 R46 or 800/55 R46
Hydraulic Tread AdjustStandard
Wheel Tread Spacing120 to 160 in.
Wheel Tread Spacing305 to 406.4 cm
Wheelbase169.3 in.
Wheelbase430 cm
Turning Radius30.2 ft
Turning Radius9.2 m
Parking BrakeSpring-engaged, hydraulically disengaged wet disk pack
Primary BrakesHydrostatic
Ladder Raise/LowerAutomatic
Weight (Empty) - With DS3031691 lb.
Weight (Empty) - With DS3014375 kg

Drivetrain

TypeHydrostatic
DriveFull-time, four-wheel drive (4WD)
ShiftingElectrohydraulic
Hydraulic Reservoir Capacity26 gal.
Hydraulic Reservoir Capacity98.4 L
Spread Speed Range0 to 25 mph
Spread Speed Range0 to 40.2 km/h
Maximum Transport Speed35 mph
Maximum Transport Speed56.3 km/h
