Features
Put Product Where You Intend - Even in Varying Fields
Every pound counts. Precision metering, section control, and curve compensation help reduce skips, overlap, and guesswork - so you can trust what you’re placing, protect your investment, and feel confident you didn’t miss acres when the day gets long and the field gets awkward.

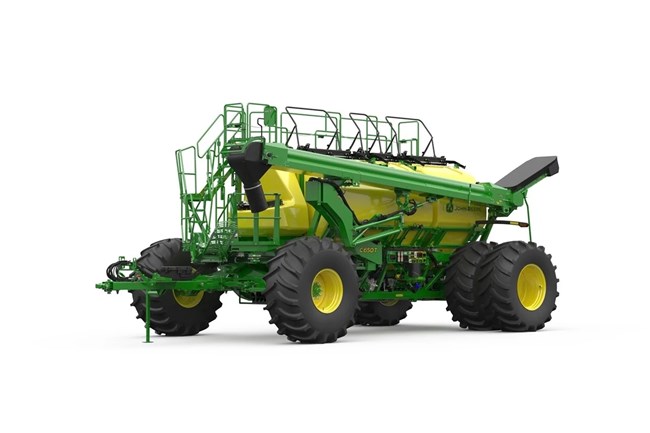

Bigger Options for Bigger Days: New XL C‑Series Carts
Some operations measure success in acres per day, not stops per hour. The C‑Series lineup now expands to the new XL carts - C1100T and C1450T - built for long run time and high productivity when your window is tight and your acres are anything but small.
Stay Seeding Longer Between Tender Stops
When the weather finally breaks, you don’t want to spend it refilling. John Deere air carts are built to keep the drill moving with more acres per fill and better visibility to what’s left - so you can push through the good conditions, not waste them waiting on the tender truck.
Specifications
Conveyance
| Conveyor Belt Width | 19 in. |
| Conveyor Belt Width | 48.3 cm |
| Conveyor Tube Diameter | 12 in. |
| Conveyor Tube Diameter | 30.5 cm |
| Conveyor Capacity (Wheat) | 100 buMin |
| Conveyor Capacity (Wheat) | 3523.9 L/min |
Tires
| Front Tires- Base Equipment | IF800/70R38 CFO/CHO |
| Front Tires- High Flotation Option | IF900/75R32 CFO/CHO |
| Rear Tires- Base Equipment | 650/85R38 (Duals) |
| Rear Tires- High Flotation Option | 800/70R38 (Duals) |
Air System
| Blower Options | Standard capacity or high capacity |
| Number of Blowers | Single or dual |
| Max Meter Delivery Rate per Blower - High Capacity Blower | 410 lb/acre |
| Max Meter Delivery Rate per Blower - High Capacity Blower | 459.55 kgPerHa |
| Max Meter Delivery Rate Per Blower - Standard Capacity Blower | 345 lb/acre |
| Max Meter Delivery Rate per Blower - Standard Capacity Blower | 386.7 kgPerHa |
| Drive | Hydraulic, per blower: up to 98.4 L/min (26 gpm) |
| Product Delivery Hoses | 2.5, 3 in. |
| Product Delivery Hoses | 6.35, 7.6 cm |
Dimensions
| Height (Transport) | 13.33 ft |
| Height (Transport) | 4.05 m |
| Height (Field) | 16.25 ft |
| Height (Field) | 4.94 m |
| Length Overall | 38.92 ft |
| Length Overall | 11.86 m |
| Width With Base Equipment Tires | 17.67 ft |
| Width With Base Equipment Tires | 5.38 m |
| Width With High Flotation Tires | 20.17 ft |
| Width With High Flotation Tires | 6.16 m |
| Ground Clearance (Empty) | 23 in. |
| Ground Clearance (Empty) | 58.4 cm |
Cart Capacity
| Total | 650 bu |
| Total | 22905.4 L |
| Number of Tanks | 4 |
| Tank Splits | 50, 130, 210, 260 bu |
| Tank Splits | 1762, 4581.1, 7400.2, 9162.2 L |
| Liquid Capable Middle Tank | 1268 gal. |
| Liquid Capable Middle Tank | 4800 L |
Metering
| Number of Meters | 6 or 8 per tank |
| Meter Housing Material | Stainless steel |
| Type | Individual motor control per primary |
| Metering Drive | Electric: 56 V |
Shipping Weight
| Base Equipment | 32761 lb. |
| Base Equipment | 15650 kg |
| Shipping Weight - High Flotation Option | 34839 lb. |
| Shipping Weight - High Flotation Option | 16594 kg |
Brakes
| Brake Type | Hydraulic disc |
Additional Information
| Date Collected | 2024-02-28 |
