Features
RelativeFlow™ Blockage Sensing
RelativeFlow™ Blockage sensing monitors seed and fertilizer flow in the tractor cab, preventing potential blockages. Sensors on secondary hoses provide real-time flow data row by row, ensuring early problem detection and consistent application rates.
ProSeries™ Opener Technology

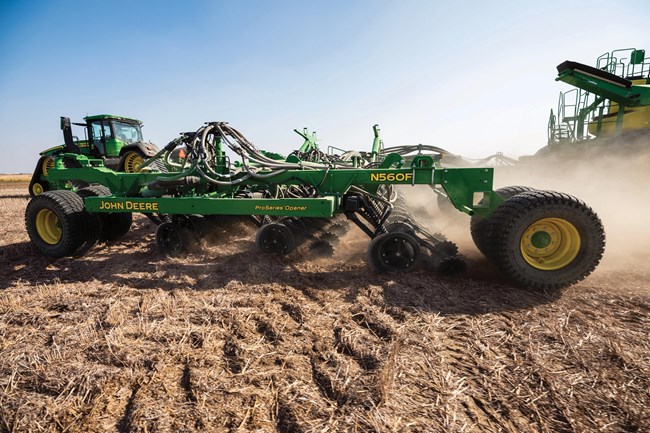

This air drill is equipped with ProSeries™ Openers, which provide consistent seed depth and uniform emergence across varied field conditions. These openers minimize maintenance with reduced grease points and cause less soil disturbance with a narrow seed boot.
Advanced Separate Fertilizer Placement
Precise nutrient placement is offered with the Separate Fertilizer Placement (SFP) feature. This allows nutrients to be positioned at an optimal 5- or 7-degree angle minimizing soil disturbance and promoting effective nutrient absorption.
Specifications
Sizes
| Working Widths | 60 ft |
| Working Widths | 18.3 m |
| Spacing - Seed Rank | 10 in. |
| Spacing - Seed Rank | 25.4 cm |
| Spacing - Separate Fertilizer Rank | 20 in. |
| Spacing - Separate Fertilizer Rank | 50.8 cm |
| Number Of Ranks | Two seed ranks and one separate fertilizer rank |
| Number Of Sections | 5 |
Openers
| Rank Lock-Up | Front, middle, and rear |
| Disk | Single blade with beveled edge |
| Disk Diameter | 18 in. |
| Disk Diameter | 45.72 cm |
| Disk Angle | Seed at 7 degree (angle); Fertilizer (dry only) at 5 or 7 degree (angle) |
| Down Pressure | Hydraulic |
| Down Pressure - Style | Active hydraulic downforce |
| Down Pressure - 10-in. Space | 165 to 400 lb., 75 to 181 kg |
| Depth Control | Gauge wheel |
| Depth Control - Gauge Wheel Size | 4.5 x 16, 3 x 16 in. |
| Depth Control - Gauge Wheel Size | 11.43 x 40.64, 7.62 x 40.64 cm |
| Depth Control - Range | 0.5 - 3.5 in. |
| Depth Control - Range | 1.3 - 8.9 cm |
| Depth Control - Increments | 0.25 in. |
| Depth Control - Increments | 0.64 cm |
| In-Furrow Press Wheel | 0.71 x 10 in. (1.8 x 25.4 cm) |
| Furrow Closing - Material | Cast iron |
| In-Furrow Press Wheel - Packing Force | 5 to 45 lb., 2.3 to 21 kg |
| Furrow Closing | Yes |
| Furrow Closing - Description | Closing wheel - vertical 15 degree (angle) |
| Furrow Closing - Size | 1 x 12 in., 2.54 x 30.5 cm |
| Furrow Closing - Down Force | 26 - 43 lb. |
| Furrow Closing - Down Force | 12 - 20 kg |
| Double-Shoot Capable | Yes - front ranks apply fertilizer |
Dimensions
| Transport Height | 16.92 ft |
| Transport Height | 5.2 m |
| Transport Width | 18.83 ft |
| Transport Width | 5.7 m |
| Road Clearance | 8.5 in. |
| Road Clearance | 21.6 cm |
| Overall Length | 38.17 ft |
| Overall Length | 11.6 m |
| Centerframe Width | 14.9 ft |
| Centerframe Width | 4.55 m |
| Weight Before Ballast | 62200 lb. |
| Weight Before Ballast | 28213 kg |
| Available Ballast | 3,200 lb. (1,451.5 kg) |
| Frame - Cross Members | 4 x 6 in. |
| Frame - Cross Members | 102 x 152 mm |
| Frame - End Tubes | 2 x 6 in. |
| Frame - End Tubes | 51 x 152 mm |
| Frame - Hitch | 6 x 10 in. |
| Frame - Hitch | 152 x 254 mm |
| Clearance From Rank To Rank | 52.8 in. |
| Clearance From Rank To Rank | 134.1 cm |
Tires
| Mainframe Standard | (8) 42.1x 21.7x 22.5 in. 12PR |
| Mainframe Bolt Pattern | Duals with eight-bolt wheels |
| Wings Standard | (16) 33x15.5-16.5 in. 10PR |
| Wing Bolt Pattern | Duals with eight-bolt wheels |
