Features

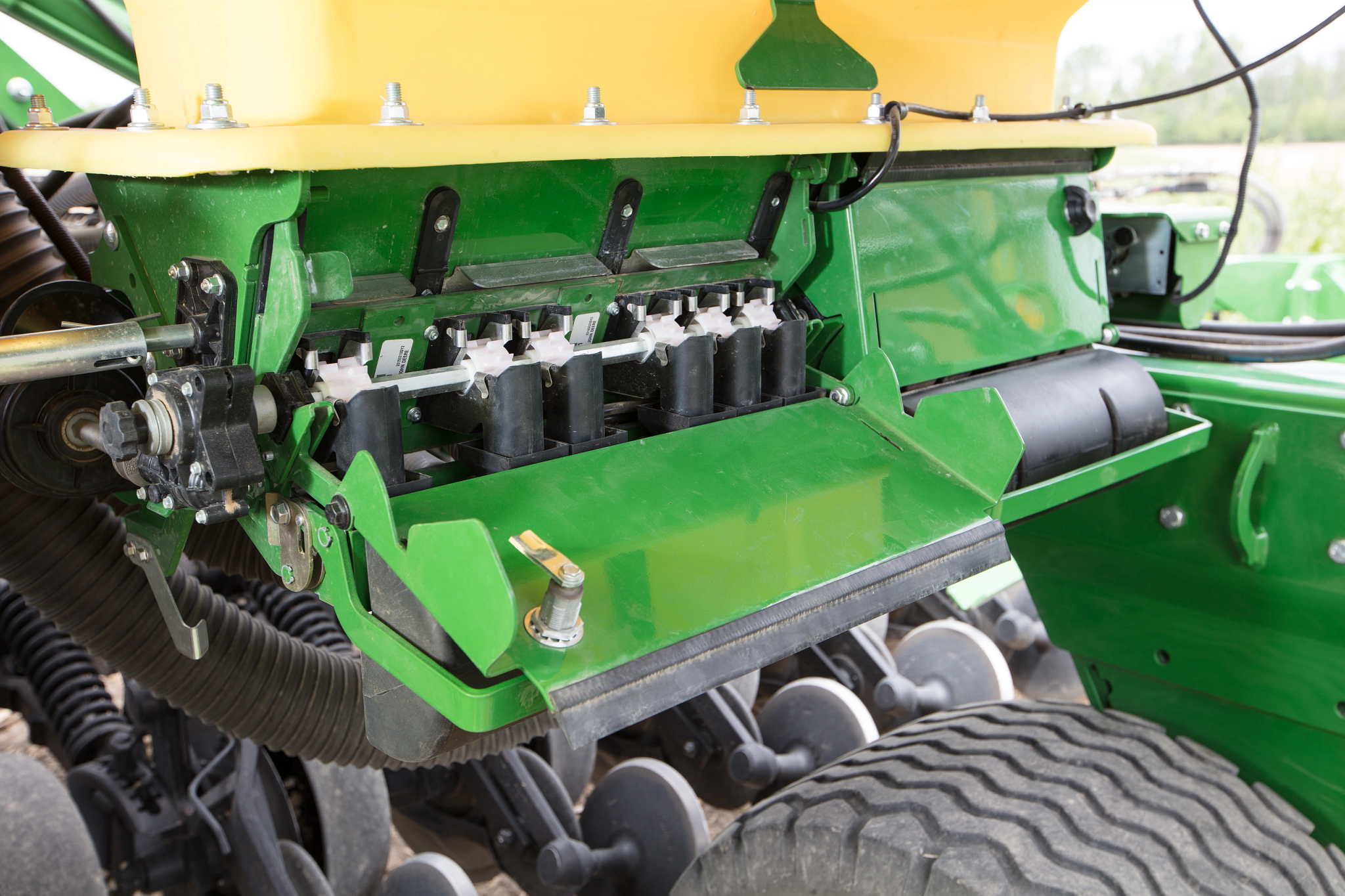

Improved Meter Access With New Frame Design
This model features an updated frame design with the tank positioned for better meter access. The tank's larger capacity and improved cleanout ease seed handling and maintenance, while electrical drive metering enhances calibration and precision.

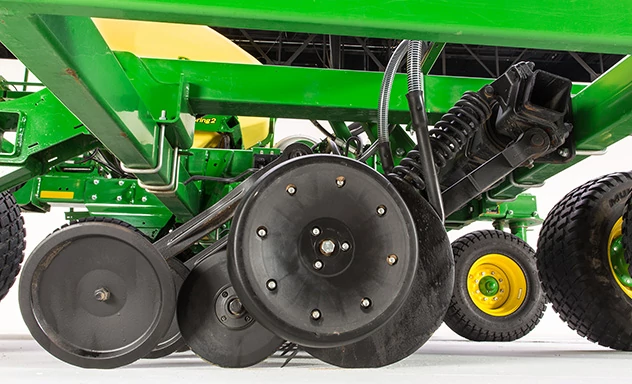

ProSeries™ Openers Reduce Maintenance
ProSeries™ openers are standard on all N500C integrated tank drills. These openers feature quick-change blades, sealed bushings, a high-wear seed boot, and a narrow and flexible press wheel. These features increase the service life of the openers, keeping you in the field longer.

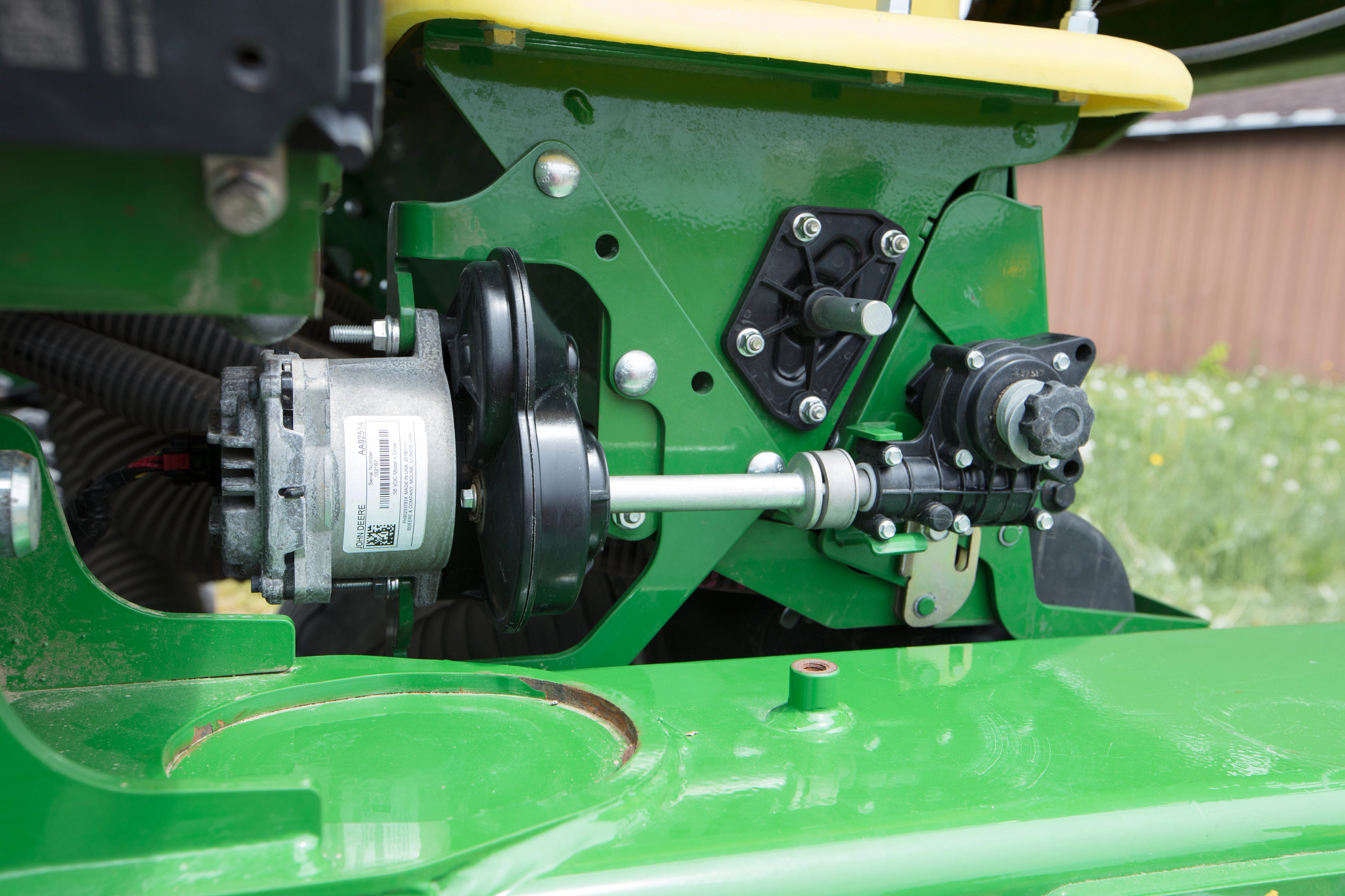

Electric Drives With SectionCommand™
Individual electric drive motors on each meter section enable SectionCommand™ for efficient variable and prescription seeding. This upgrade replaces traditional hydraulic or ground drives, potentially saving 4 to 6% in seed based on field variability.
Specifications
Sizes
| Working Widths | 40 ft |
| Working Widths | 12.2 m |
| Spacing - Single Rank | 15 in. |
| Spacing - Single Rank | 38.1 cm |
| Spacing - Double Rank | 7.5, 10 in. |
| Spacing - Double Rank | 19.1, 25.4 cm |
| Number Of Ranks | Single; Dual |
Seed Metering
| Description | Central volumetric metering |
| Crops | Barley, oats, rice, sorghum, soybean, wheat |
| Maximum Volumetric Seeding Rates - Barley | ≤ 1,000,000 seeds per acre (2,470,000 seeds per hectare) |
| Maximum Volumetric Seeding Rates - Oats | ≤ 2,500,000 seeds per acre (6,180,000 seeds per hectare) |
| Maximum Volumetric Seeding Rates - Rice | ≤ 1,700,000 seeds per acre (4,200,000 seeds per hectare) |
| Maximum Volumetric Seeding Rates - Milo/Sorghum | ≤ 100,000 seeds per acre (247,000 seeds per hectare) |
| Maximum Volumetric Seeding Rates - Soybean | ≤ 250,000 seeds per acre (618,000 seeds per hectare) |
| Maximum Volumetric Seeding Rates - Wheat | ≤ 2,970,000 seeds per acre (7,300,000 seeds per hectare) |
| Metering Drive Type | Electric |
Tires
| Mainframe Standard | (4) 33x15.5-16 on front, (4) 33x15.5-16 on rear |
| Wings Standard | (4) 31x13.5-15 NHS |
| Centerframe Tires And Wheels | (4) 500/40R16 on front, (4) 500/40R16 on rear |
| Wing Tires And Wheels | (8) 33x15.5-16 |
| Wheel Spacing - Width Of Duals, Center To Center | 126.8 in. |
| Wheel Spacing - Width Of Duals, Center To Center | 322.1 cm |
| Wheel Spacing - Width Outside To Outside Of Front Dual Pair, Largest Tire Option | 51.5 in. |
| Wheel Spacing - Width Outside To Outside Of Front Dual Pair, Largest Tire Option | 130.8 cm |
| Wheel Spacing - Width Outside To Outside Of Rear Dual Pair | 51.5 in. |
| Wheel Spacing - Width Outside To Outside Of Rear Dual Pair | 130.8 cm |
| Wheel Spacing - Front Tire Width, Largest Tire Option | 20 in. |
| Wheel Spacing - Front Tire Width, Largest Tire Option | 50.8 cm |
| Wheel Spacing - Rear Tire Width, Largest Tire Option | 20 in. |
| Wheel Spacing - Rear Tire Width, Largest Tire Option | 50.8 cm |
Additional Information
| Tool-Mounted Alternator | 56 VDC; Optional: 56 VDC |
| Implement Harness Connection, 56 VDC | Power take-off (PTO) power gen |
| Implement Harness Connection, 12 VDC | 7-pin SAE, 9-pin ISO |
| Operator Interface | Description: QT / Gen 4; Language: English, Spanish, English/Spanish, English/French |
| Four-Section Seed On/Off | Standard |
| Fast Start/Quick Start | Standard |
| Seed Blockage Sensor Per Row | Standard |
| Date Collected | 2019-03-01 |
Dimensions
| Transport Height | 14.75 ft |
| Transport Height | 4.5 m |
| Transport Width | 18.5 ft |
| Transport Width | 5.64 m |
| Road Clearance | 7 in. |
| Road Clearance | 17.8 cm |
| Overall Length | 29.9 ft |
| Overall Length | 9.1 m |
| Centerframe Width | 15.2 ft |
| Centerframe Width | 4.6 m |
| Centerline Of Mainframe Wheel Support Tube To Centerline Of Wing Wheel Support Tubes | 10.4 ft |
| Centerline Of Mainframe Wheel Support Tube To Centerline Of Wing Wheel Support Tubes | 3.2 m |
| Weight Before Ballast - Dual Rank 7.5-in (19.1-cm) Spacing | 29800 lb. |
| Weight Before Ballast - Dual Rank 7.5-in (19.1-cm) Spacing | 13500 kg |
| Weight Before Ballast - Dual Rank 10-in. (25.4-cm) Spacing | 26400 lb. |
| Weight Before Ballast - Dual Rank 10-in. (25.4-cm) Spacing | 12000 kg |
| Weight Before Ballast - Single Rank 15-in. (38.1-cm) Spacing | 18500 lb. |
| Weight Before Ballast - Single Rank 15-in. (38.1-cm) Spacing | 8400 kg |
| Frame - Cross Members | 4 x 6 in. |
| Frame - Cross Members | 102 x 152 mm |
| Frame - End Tubes | 2 x 6 in. |
| Frame - End Tubes | 51 x 152 mm |
| Frame - Hitch | 10 x 6 in. |
| Frame - Hitch | 254 x 152 mm |
| Lateral Frame Clearance, Opener to Opener, For 7.5-in. (19.1-cm) Models | 15 in. |
| Lateral Frame Clearance, Opener to Opener, For 7.5-in. (19.1-cm) Models | 38.1 cm |
| Clearance From Rank To Rank | 52.8 in. |
| Clearance From Rank To Rank | 134.1 cm |
| From Ground To Top Of Lid | 122 in. |
| From Ground To Top Of Lid | 310 cm |
| From Ground To Platform | 85 in. |
| From Ground To Platform | 220 cm |
| From Ground To Top Of Safety Rail | 127 in. |
| From Ground To Top Of Safety Rail | 322.6 cm |
| From Ground To Top Of Lights | 122 in. |
| From Ground To Top Of Lights | 310 cm |
Openers
| Openers Style | No-till |
| Rank Lock-Up | Individual |
| Disk | 45.7 cm (18-in.) disk blade at 7-degree angle |
| Disk Diameter | 18 in. |
| Disk Diameter | 45.72 cm |
| Disk Angle | 7-degree angle |
| Down Pressure | 165-400 lb/opener (74.8-181.4 kg) |
| Down Pressure - Style | Hydraulic rank |
| Depth Control - Gauge Wheel Size | 4.5 x 16 in. |
| Depth Control - Gauge Wheel Size | 11.4 x 40.6 cm |
| Depth Control - Range | 0.5 - 3.5 in. |
| Depth Control - Range | 1.3 - 8.9 cm |
| Depth Control - Increments | 0.25 in. |
| Depth Control - Increments | 0.64 cm |
| In-Furrow Press Wheel | 1 x 10 in. (2.54 x 25.4 cm) |
| Furrow Closing - Material | Cast |
| In-Furrow Press Wheel - Packing Force | Adjustable down-pressure from 5 to 45 lb (2.3 to 20.4 kg) |
| Furrow Closing | Serrated or smooth cast closing wheel |
| Furrow Closing - Description | Cast wheel at 15-degree vertical angle; Serrated closing wheel at 15-degree vertical angle |
| Furrow Closing - Size | Cast wheel: 1 x 12 in. (2.54 x 30.5 cm) |
| Furrow Closing - Down Force | 26 - 43 lb. |
| Furrow Closing - Down Force | 11.8 - 19.5 kg |
Seed Storage
| Tank Description | Central, non-pressurized polyethylene tank |
| Total Tank Capacity | 120 bu |
| Total Tank Capacity | 4200 L |
| Tank Fill Screen | Optional; one per tank opening |
| Tank Scales | Optional; provides summed commodity weight |
| Type | Pneumatic |
| Blower | 17.7 in. (45 cm) diameter impeller |
| Blower Drive Type | Hydraulic |
| Distribution Hose Size | 1 in. (2.54 cm) ID for 15 in. (38.1 cm) row spacing; 1.13 in. (3.13 cm) ID primaries with 1 in. (2.54 cm) ID secondaries for 7.5 and 10 in. (19.1 and 25.4 cm) row spacings |
Equipment Compatibility (At 1.5-in. Seeding Depth And 8 mph)
| Tractor Drawbar Power Required - 7.5-in. (19.1-cm) Models | 373 hp |
| Tractor Drawbar Power Required - 7.5-in. (19.1-cm) Models | 278 kW |
| Tractor Drawbar Power Required - 10-in. (25.4-cm) Models | 301 hp |
| Tractor Drawbar Power Required - 10-in. (25.4-cm) Models | 225 kW |
| Tractor Drawbar Power Required - 15-in. (38.1-cm) Models | 222 hp |
| Tractor Drawbar Power Required - 15-in. (38.1-cm) Models | 166 kW |
Tractor Requirements
| Minimum Number Of SCVs | Three - one fold, one opener raise/lower, one seed distribution blower |
| Hydraulic Power Beyond | Required for in-cab opener downforce and electric power generation |
| Minimum Hydraulic Capacity | 28.7 gpm (109 L/min) at 2900 psi (200 bar) |
| Minimum Electrical Capacity | 48 A at 12 VDC |
