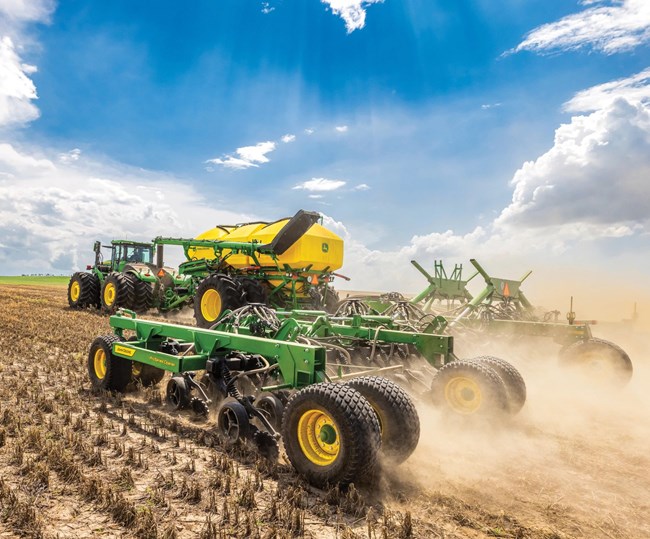

John Deere N540
Double tap to zoom
N540
Drills
Overview:
The N540 provides high‑productivity 40‑ft no‑till seeding with consistent depth and rate, plus section control and blockage monitoring to cut overlap and deliver uniform stands.
- Adjust Down Pressure With TruSet™ In-Cab Downforce
- See the Flow of Seed and Fertilizer From the Cab With RelativeFlow™ Blockage Monitoring
- Quick Change Blade Enhancement of the ProSeries™ Opener Reduces Change Time by up to 45%
- Convenient Dual-Row Spacing Hydraulics
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
ProSeries™ Opener Technology
This air drill is equipped with ProSeries™ Openers, which provide consistent seed depth and uniform emergence across varied field conditions. These openers minimize maintenance with reduced grease points and cause less soil disturbance with a narrow seed boot.
RelativeFlow™ Blockage Sensing
RelativeFlow™ Blockage sensing monitors seed and fertilizer flow in the tractor cab, preventing potential blockages. Sensors on secondary hoses provide real-time flow data row by row, ensuring early problem detection and consistent application rates.
TruSet™ Downforce Control
TruSet™ downforce allows operators to adjust pressures from inside the cab with a range of 74.8 kg (165 lb.) to 181.4 kg (400 lb.), enhancing seeding depth consistency and adapting easily to changing soil conditions.
Specifications
Sizes
| Working Widths | 40 ft |
| Working Widths | 12.2 m |
| Spacing | 7.5, 10 in. |
| Spacing | 19.05, 25.4 cm |
| Number Of Ranks | Two |
| Number Of Sections | 3 |
Dimensions
| Transport Height | 14.58 ft |
| Transport Height | 4.44 m |
| Transport Width | 18.33 ft |
| Transport Width | 5.59 m |
| Road Clearance | 8.5 in. |
| Road Clearance | 21.6 cm |
| Overall Length | 24.58 ft |
| Overall Length | 7.5 m |
| Weight Before Ballast | 22400, 19600 lb. |
| Weight Before Ballast | 10160, 8890 kg |
| Available Ballast | 1179 (12+14 x 45) kg; 2600 (12+14 x 100) lb |
| Frame - Cross Members | 4 x 6 in. |
| Frame - Cross Members | 10.2 x 15.2 mm |
| Frame - End Tubes | 2 x 6 in. |
| Frame - End Tubes | 5.1 x 15.2 mm |
| Frame - Hitch | 3 x 6 in. |
| Frame - Hitch | 7.6 x 15.2 mm |
| Clearance From Rank To Rank | 52.75 in. |
| Clearance From Rank To Rank | 134 cm |
Openers
| Openers Style | Single disk-beveled edge |
| Rank Lock-Up | Yes |
| Disk Diameter | 18 in. |
| Disk Diameter | 45.72 cm |
| Disk Angle | 7 |
| Down Pressure | Hydraulic |
| Down Pressure - Style | Active hydraulic-patented |
| Depth Control - Gauge Wheel Size | 4.5 x 16, 3 x 16 in. |
| Depth Control - Gauge Wheel Size | 11.43 x 40.64, 7.62 x 40.64 cm |
| Depth Control - Range | 0.5 - 3.5 in. |
| Depth Control - Range | 1.27 - 8.89 cm |
| Depth Control - Increments | 0.25 in. |
| Depth Control - Increments | 0.64 cm |
| In-Furrow Press Wheel | Standard |
| Furrow Closing - Material | Cast iron |
| In-Furrow Press Wheel - Packing Force | 5 to 45 lb., 2.3 to 21 kg |
| Furrow Closing | Standard |
| Furrow Closing - Description | Trailing wheel on 20-degree vertical angle, 7-degree horizontal angle |
| Furrow Closing - Size | 1 x 12 in., 2.54 x 30.48 cm |
| Furrow Closing - Down Force | 26 - 43 lb. |
| Furrow Closing - Down Force | 12 - 20 kg |
Tires
| Mainframe Standard | (8) 11L-15, 10PR |
| Wings Standard | (4) 11L-15, 8PR |
