Features

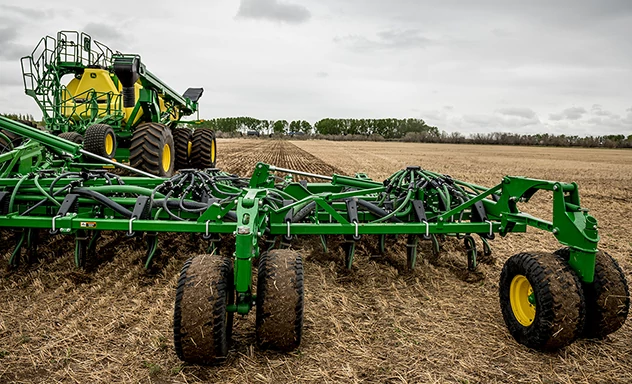

Flexible Frame Allows for Consistent Seed Depth
The John Deere H500 and H500F Air Hoe Drills, featuring diagonal mainframes and wing flexing, maintain seed depth over uneven terrain and offer a three-year frame warranty due to their proven durability and four times longer life requirement than previous models.
TouchSet™ Depth Control System
The TouchSet™ system allows for precise, in-cab depth control adjustments according to field conditions. Operators can easily match depth changes to achieve optimal yield, minimizing seed depth-related penalties, with a repeatability of +/- 6 mm to preset depth.
Advanced Hose Routing System
The hose routing system is specifically designed to minimize sharp bends and eliminate rub points. This increases hose life and reduces downtime caused by wear in the hoses, ensuring consistent seed and fertilizer delivery to the opener.
Specifications
Dimensions
| Road Clearance With Sweep | 16 in. |
| Road Clearance With Sweep | 40.6 cm |
| Transport Width | 20.3 ft |
| Transport Width | 6.2 m |
| Nominal Frame Width (Between Wing-Fold Pivots) | 13.75 ft |
| Nominal Frame Width (Between Wing-Fold Pivots) | 4.19 m |
| Number Of Seed Openers | Primary air package configurations for the 1830 |
| Spacing And Width #1 | Spacing - 19.05 cm 7.5 in. Width - 12.5 m 41 ft |
| Spacing And Width #1 - Working Width | 40.62 ft |
| Spacing And Width #1 - Working Width | 12.4 m |
| Spacing And Width #1 - Transport Height With Harrow | 19.22 ft |
| Spacing And Width #1 - Transport Height With Harrow | 5.86 m |
| Spacing And Width #1 - Transport Height Without Harrow | 18.28 ft |
| Spacing And Width #1 - Transport Height Without Harrow | 5.57 m |
| Spacing And Width #1 - Minimum Temporary Height Reduction With Sweeps | 18 in. |
| Spacing And Width #1 - Minimum Temporary Height Reduction With Sweeps | 457 mm |
| Spacing And Width #1 - Weight | 24800 lb. |
| Spacing And Width #1 - Weight | 11250 kg |
Press Wheels
| Steel | On 7.5-, 10- or 12.5-in. spacing: 7.6 x 53.3 cm (15.7 kg) 3 x 21 in. (34.7 lb) |
| Semi-Pneumatic | On 7.5-, 10- or 12.5-in. spacing: 7.6 x 53.3 cm (16.9 kg) 3 x 21 in. (37.2 lb) |
| Split | 81.2 lb. |
| Split | 36.8 kg |
Fore-Aft Dimensions
| Length | 32.67 ft |
| Length | 9.95 m |
| Hitch Pin To Rear Of Transport Wheels | 32.67 ft |
| Hitch Pin To Rear Of Transport Wheels | 9.95 m |
| Lateral Frame Clearance, Opener To Opener | 30 in. |
| Lateral Frame Clearance, Opener To Opener | 76.2 cm |
| Fore-Aft Frame Clearance Between Ranks | 29 in. |
| Fore-Aft Frame Clearance Between Ranks | 73.66 cm |
| Front Of Front Cross Member To Front Of Rear Cross Member (4 Ranks) | 7.25 ft |
| Front Of Front Cross Member To Front Of Rear Cross Member (4 Ranks) | 2.21 m |
Mainframe
| Centerframe Width | 13.75 ft |
| Centerframe Width | 4.19 m |
| Cross Members | 4 x 4 in. |
| Cross Members | 10.2 x 10.2 cm |
| End Tubes | 4 x 4 x 0.375 in. |
| End Tubes | 102 x 102 x 9.5 mm |
| Hitch | 2 in. |
| Hitch | 50.8 mm |
| Hitch Category | Category 4 |
| Seeding Tool Depth Control | Adjustable mechanical stop |
| Mainframe And Wing Flexibility | Diagonal flex |
Tractor Hydraulic Requirements
| Minimum SCVs | 2 |
| Tractor Hydraulic Circuit Requirements | One selective control for frame lift; one selective control for wing fold and transport wheels |
| Tractor Hydraulic Pressure Requirement | 2000 psiPerMin |
| Tractor Hydraulic Pressure Requirement | 138 barPerMin |
Seed Opener
| Type #1 | Tru-Position™ - 51 degree (angle) |
| Type #1 - Spacing | 7.5, 10, or 12.5 in. |
| Type #1 - Spacing | 19.05, 25.40, or 31.75 cm |
| Type #1 - Dimensions | 1.25 x 2 x 28 in. |
| Type #1 - Dimensions | 31.75 x 50.8 x 711 mm |
| Type #1 - Trip Force | 550 lb-ft |
| Type #1 - Trip Force | 2.45 kN |
| Underframe Clearance | 28 in. |
| Underframe Clearance | 71.12 cm |
Tires
| Tire Specifications | Tire link |
Freight
| Free On Board (F.O.B.) | Valley City, North Dakota |
Tractor Horsepower Requirements
| 41 Ft | 275 hp |
| 41 Ft | 205 kW |
Harrow
| Type | Optional two-bar tine-tooth |
