Features
TruSet™ Downforce Control
TruSet™ downforce allows operators to adjust pressures from inside the cab with a range of 74.8 kg (165 lb.) to 181.4 kg (400 lb.), enhancing seeding depth consistency and adapting easily to changing soil conditions.
ProSeries™ Opener Technology

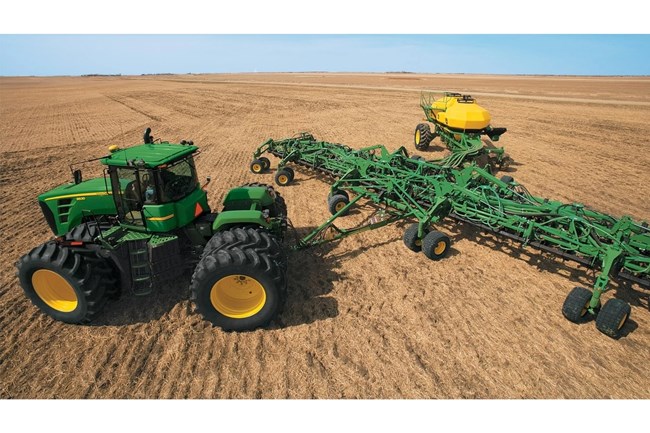

This air drill is equipped with ProSeries™ Openers, which provide consistent seed depth and uniform emergence across varied field conditions. These openers minimize maintenance with reduced grease points and cause less soil disturbance with a narrow seed boot.
RelativeFlow™ Blockage Sensing
RelativeFlow™ Blockage sensing monitors seed and fertilizer flow in the tractor cab, preventing potential blockages. Sensors on secondary hoses provide real-time flow data row by row, ensuring early problem detection and consistent application rates.
Specifications
Tractor Horsepower Requirements
| 40 Ft | 325 hp |
| 40 Ft | 242.4 kW |
| 50 Ft | 400 hp |
| 50 Ft | 298.3 kW |
| 60 Ft | 475 hp |
| 60 Ft | 354.2 kW |
Dimensions
| Road Clearance With Sweep | 15 in. |
| Road Clearance With Sweep | 38.1 cm |
| Transport Width | 20 ft |
| Transport Width | 6.1 m |
| Nominal Frame Width (Between Wing-Fold Pivots) | 13.75 ft |
| Nominal Frame Width (Between Wing-Fold Pivots) | 4.2 m |
| Number Of Seed Openers | Openers link |
| Spacing And Width #1 | Spacing: 25.4 cm 10 in. Width: 12.2 m 40 ft |
| Spacing And Width #1 - Working Width | 40 ft |
| Spacing And Width #1 - Working Width | 12.2 m |
| Spacing And Width #1 - Transport Height With Harrow | 19.01 ft |
| Spacing And Width #1 - Transport Height With Harrow | 5.79 m |
| Spacing And Width #1 - Minimum Temporary Height Reduction With Sweeps | 20 in. |
| Spacing And Width #1 - Minimum Temporary Height Reduction With Sweeps | 508 mm |
| Spacing And Width #1 - Weight | 29000 lb. |
| Spacing And Width #1 - Weight | 13150 kg |
Fore-Aft Dimensions
| Hitch Pin To Rear Of Transport Wheels | 33.2 ft |
| Hitch Pin To Rear Of Transport Wheels | 10.12 m |
| Lateral Frame Clearance, Opener To Opener | 30 in. |
| Lateral Frame Clearance, Opener To Opener | 76.2 cm |
| Fore-Aft Frame Clearance Between Ranks | 29 in. |
| Fore-Aft Frame Clearance Between Ranks | 73.66 cm |
| Front Of Front Cross Member To Front Of Rear Cross Member (4 Ranks) | 7.23 ft |
| Front Of Front Cross Member To Front Of Rear Cross Member (4 Ranks) | 2.21 m |
Fertilizer Opener
| Type #1 | Rolling disk |
| Type #1 - Spacing | 20 in. |
| Type #1 - Spacing | 50.8 cm |
| Type #1 - Blade Size | 18 in. |
| Type #1 - Blade Size | 457 mm |
| Type #1 - Fertilizer Compatibility | Anhydrous gas, liquid, dry |
Mainframe
| Centerframe Width | 13.75 ft |
| Centerframe Width | 4.2 m |
| Cross Members | 4 x 4 in. |
| Cross Members | 10.2 x 10.2 cm |
| End Tubes | 4 x 4 x 0.375 in. |
| End Tubes | 102 x 102 x 9.5 mm |
| Hitch | 2 in. |
| Hitch | 5038 mm |
| Hitch Category | Category 4: Pin: 50 mm 2 in. Category 5: 70 mm 2.75 in. |
| Seeding Tool Depth Control | Adjustable mechanical stop |
| Mainframe And Wing Flexibility | Diagonal flex |
Tractor Hydraulic Requirements
| Minimum SCVs | 3 |
| Tractor Hydraulic Circuit Requirements | One selective control for frame lift, one selective control for wing fold and transport wheels, and one for SFP rockshaft control |
| Tractor Hydraulic Pressure Requirement | 2500 psiPerMin |
| Tractor Hydraulic Pressure Requirement | 172.4 barPerMin |
Seed Opener
| Type #1 | TruPosition™: 51 degree (angle) |
| Type #1 - Spacing | 10 in. |
| Type #1 - Spacing | 25.4 cm |
| Type #1 - Dimensions | 1.25 x 2 x 28 in. |
| Type #1 - Dimensions | 31.75 x 50.8 x 711 mm |
| Type #1 - Trip Force | 2.4 kN |
| Underframe Clearance | 28 in. |
| Underframe Clearance | 71.12 cm |
Press Wheels
| Steel | 3x21 (34.7 lb) or 4x22 (35.9 lb) on 25.4-cm (10-in.) spacing |
| Semi-Pneumatic | 3x21 (37.2 lb), 4x21 (41.8 lb), or 5.5x21 (51.6 lb) on 25.4-cm (10-in.) spacing |
Warning Lights
| Standard | Yes |
Tires
| Tire Specifications | Tire link |
Freight
| Free On Board (F.O.B.) | Valley City, North Dakota |
