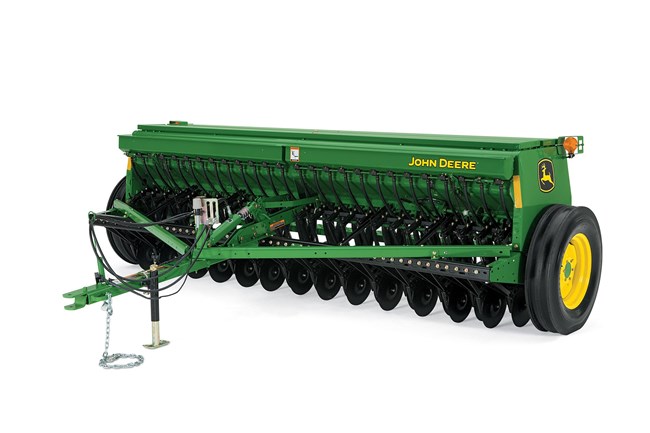

John Deere BD1113 - 7.5-in. Spacing

New Products / John Deere / John Deere Products / Seeding Equipment / Drills / BD1113 - 7.5-in. Spacing

Double tap to zoom



Features

Adjustable Depth Gauge Wheels

Close-up of multiple black gauge wheels on a BD11 End Wheel Grain Drill, showing their metal arms and mounting hardware

The adjustable depth gauge wheels allow for precision in furrow depth control from 0.5 to 3.5 in. (1.3 to 8.9 cm), ensuring optimal seed placement. Mounted to the double-disk opener, it also helps firm one furrow wall, preventing soil collapse.

Grass Seedbox Field Attachment Kit

Front left studio view of grass seedbox attached across the top front of a BD11 End-Wheel Grain Drill

Providing reliable fluted force feed, the grass seedbox field attachment kits support the seeding of fine grasses. They are designed for the BD11 Series End-Wheel Grain Drills, ensuring accurate and even seed distribution across various row spacings.

Seed/Fertilizer Meter Drive System

Studio view of fertilizer metering system on the left back of the BD11 End-Wheel Grain Drill

The seed and fertilizer metering systems are powered by the end wheel. A heavy-duty, high-strength no. 40 roller chain provides a positive drive. Spur gears and sprockets are machined to provide a more accurate fit for longer life. Gears can be interchanged for either a slow or fast speed.

Specifications

Box Capacity

100 Percent Grain Box Capacity1.265 m³
100 Percent Grain Box Capacity35.9 bu
60 Percent Grain Box Capacity23.6 bu
60 Percent Grain Box Capacity0.832 m³
Combo Box Capacity1.558 m³
Combo Box Capacity44.2 bu
40 Percent Grain Box Capacity0.617 m³
Plain Grain Box Capacity1.283 m³
40 Percent Grain Box Capacity17.5 bu
Plain Grain Box Capacity36.4 bu
Grass Seed Or Legume (Small Seed) Box Capacity1.7 bu
Grass Seed Or Legume (Small Seed) Box Capacity0.06 m³

Dimensions

Available Row Spacings7.5 in.
Available Row Spacings19.1 cm
Transport Width4.6 m
Transport Width15.1 ft
Transport Ground Clearance13.8 cm
Transport Ground Clearance5.5 in.
Working Width3.99 m
Working Width13.1 ft

Depth gauging press wheels size

Depth Gauging Press Wheels Size - Rubber2.5 x 30.5, 5.1 x 33, 10.2 x 30.5 cm
Depth Gauging Press Wheels Size - Rubber1 x 12, 2 x 13, 4 x 12 in.

Openers

Openers TypeDouble disk, staggered pattern: 13 in. (33.02 cm)
Openers Down Pressure56 kg
Openers Down Pressure124 lb.
Openers Quantity21

Metering

Metering TypeFluted feed
AcremeterStandard

Weight

Combo Box Weight (7.5-In. Spacing)1104 kg
Combo Box Weight (7.5-In. Spacing)2435 lb.
Plain Box Weight (7.5-In. Spacing)2225 lb.
Plain Box Weight (7.5-In. Spacing)1009 kg

Seedboot

Seedboot TypeCast aluminum or cast iron

Setup Time

Setup Time Labor Hours3 hr

Warranty

Warranty Time Period1 year

Hitch

Regular HitchYes

Attachments Available

Half-Speed DriveOptional
Grass Seed Or Small Seed Legume BoxOptional
Outside Disk ScrapersOptional

Tires

Tires - Implement7.5-20, 4 PR
Tires - Double-Rib, Implement7.5-20, 4 PR

Grain Agitator

Grain Agitator - Grain BoxStandard
