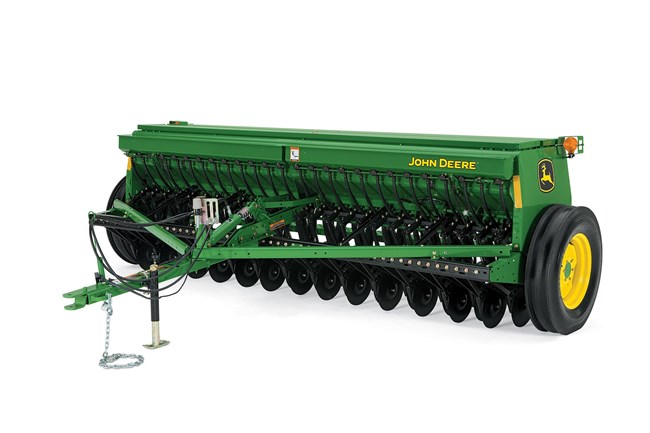

John Deere BD1113 - 6-in. Spacing
Double tap to zoom
BD1113 - 6-in. Spacing
Drills
Overview:
Simple, reliable small‑grain seeding—end‑wheel ground drive and adjustable rates deliver uniform placement with easy setup and low upkeep for fields or food plots.
- Optional Furrow Boots
- Seed/Fertilizer Meter Drive System
- Field-Installed Agitator Kits
- Depth Band Field Conversion Kits
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

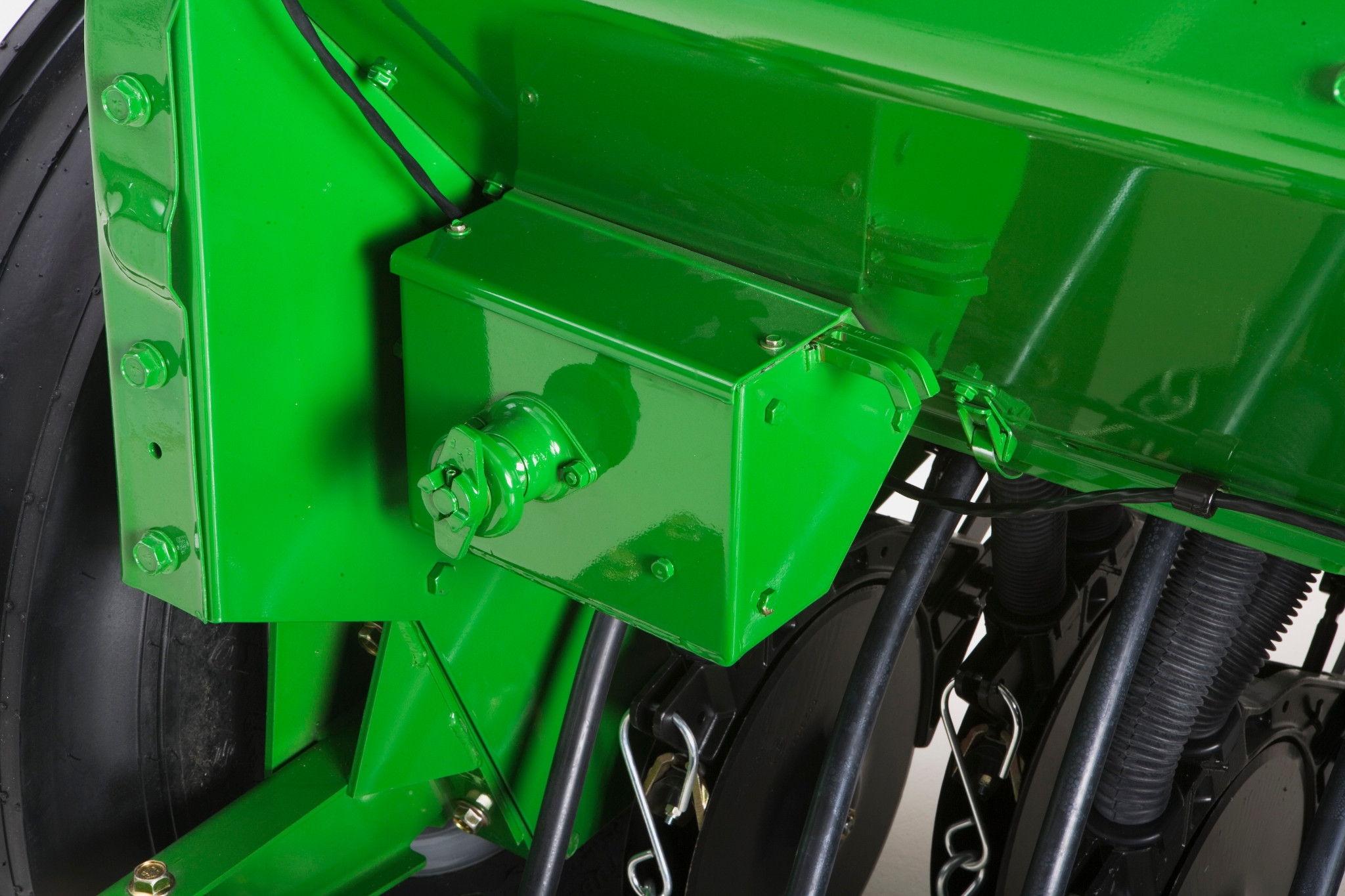

Seed/Fertilizer Meter Drive System
The seed and fertilizer metering systems are powered by the end wheel. A heavy-duty, high-strength no. 40 roller chain provides a positive drive. Spur gears and sprockets are machined to provide a more accurate fit for longer life. Gears can be interchanged for either a slow or fast speed.

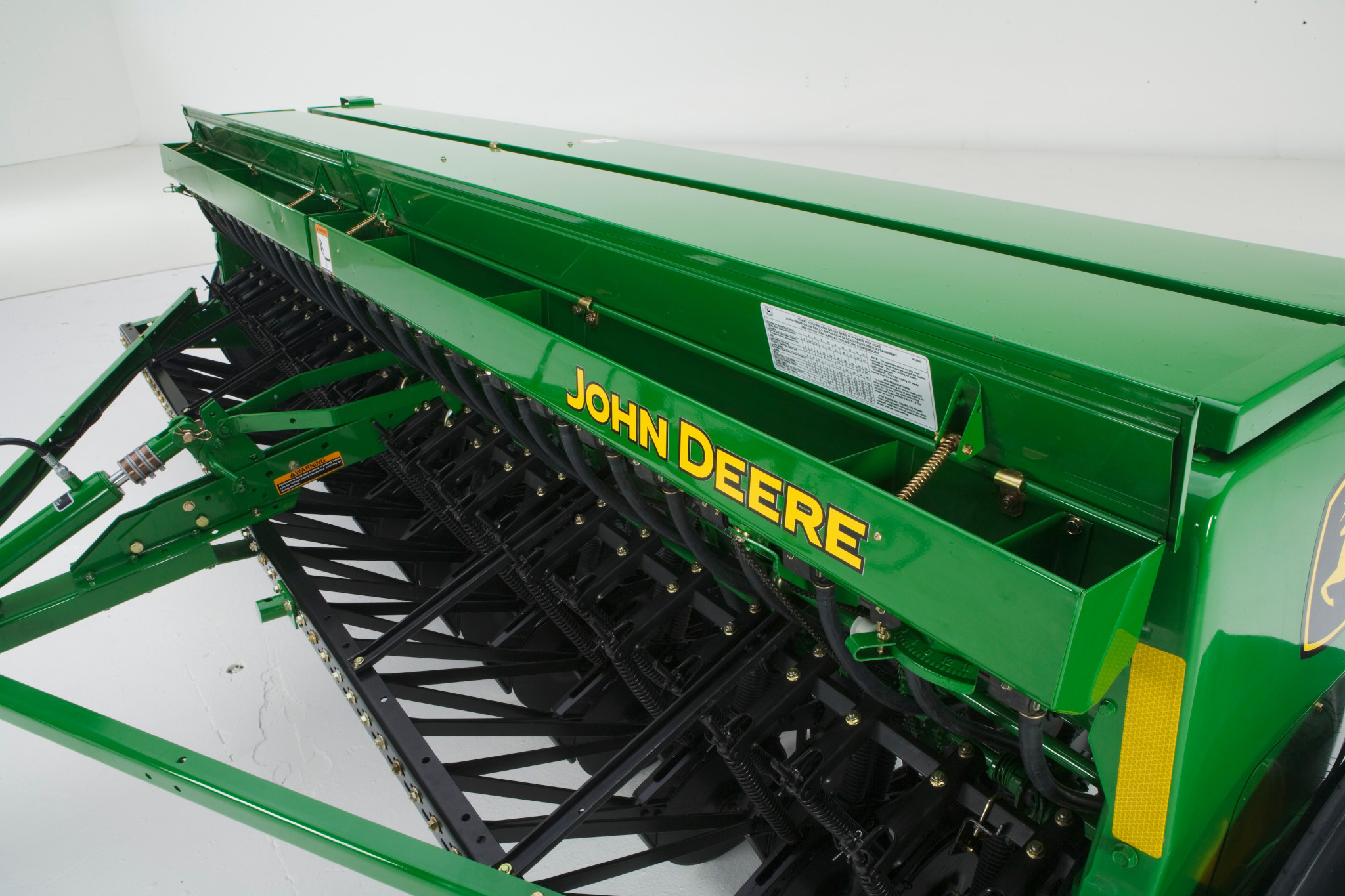

Grass Seedbox Field Attachment Kit
Providing reliable fluted force feed, the grass seedbox field attachment kits support the seeding of fine grasses. They are designed for the BD11 Series End-Wheel Grain Drills, ensuring accurate and even seed distribution across various row spacings.

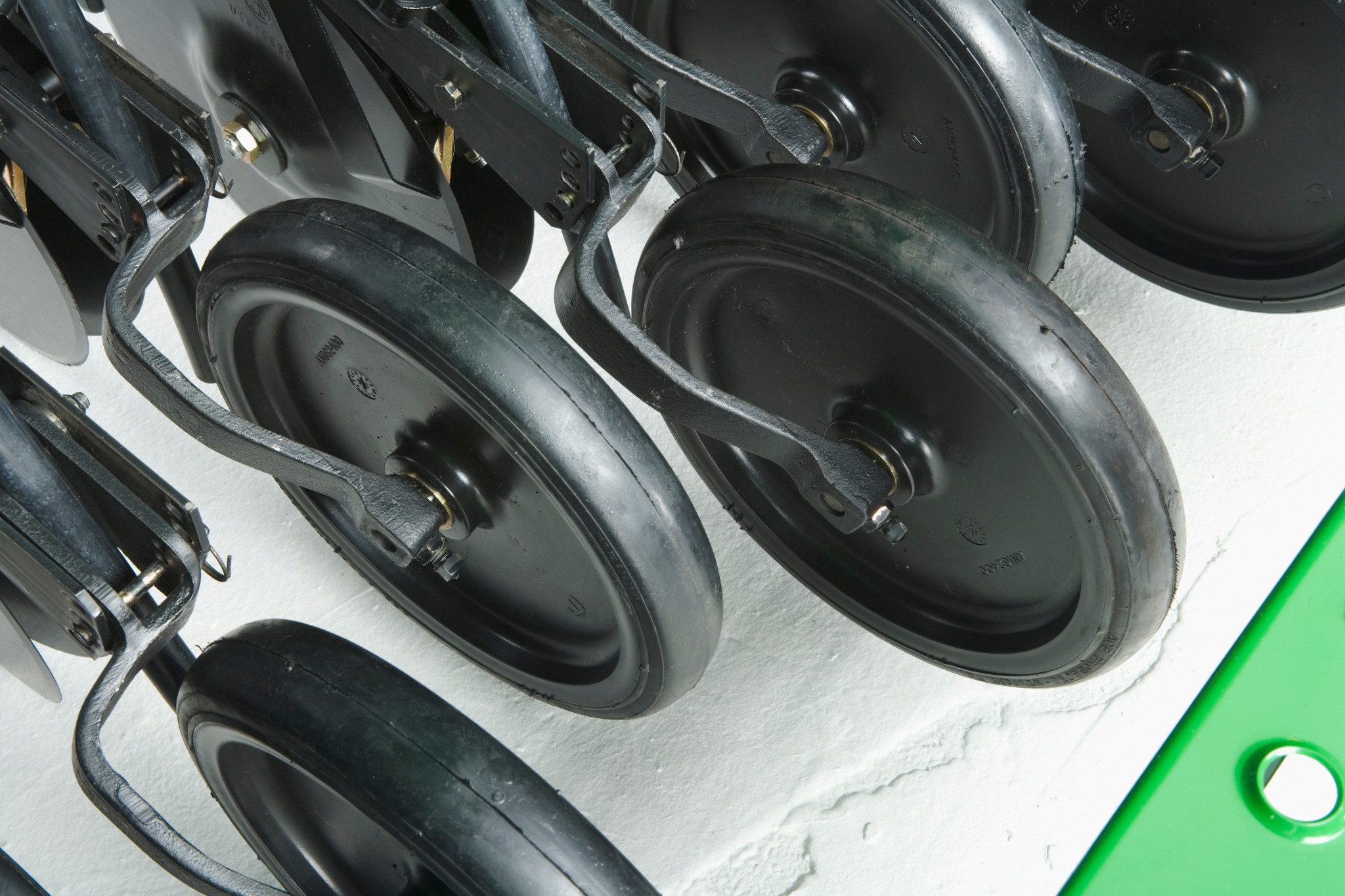

Adjustable Depth Gauge Wheels
The adjustable depth gauge wheels allow for precision in furrow depth control from 0.5 to 3.5 in. (1.3 to 8.9 cm), ensuring optimal seed placement. Mounted to the double-disk opener, it also helps firm one furrow wall, preventing soil collapse.
Specifications
Box Capacity
| 100 Percent Grain Box Capacity | 1.265 m³ |
| 100 Percent Grain Box Capacity | 35.9 bu |
| 60 Percent Grain Box Capacity | 23.6 bu |
| 60 Percent Grain Box Capacity | 0.832 m³ |
| Combo Box Capacity | 1.558 m³ |
| Combo Box Capacity | 44.2 bu |
| 40 Percent Grain Box Capacity | 0.617 m³ |
| Plain Grain Box Capacity | 1.283 m³ |
| 40 Percent Grain Box Capacity | 17.5 bu |
| Plain Grain Box Capacity | 36.4 bu |
| Grass Seed Or Legume (Small Seed) Box Capacity | 1.7 bu |
| Grass Seed Or Legume (Small Seed) Box Capacity | 0.06 m³ |
Dimensions
| Available Row Spacings | 6 in. |
| Available Row Spacings | 15.2 cm |
| Transport Width | 4.6 m |
| Transport Width | 15.1 ft |
| Transport Ground Clearance | 13.8 cm |
| Transport Ground Clearance | 5.5 in. |
| Working Width | 3.96 m |
| Working Width | 13 ft |
Depth gauging press wheels size
| Depth Gauging Press Wheels Size - Rubber | 2.5 x 30.5, 5.1 x 33, 10.2 x 30.5 cm |
| Depth Gauging Press Wheels Size - Rubber | 1 x 12, 2 x 13, 4 x 12 in. |
Openers
| Openers Type | Double disk, staggered pattern: 13 in. (33.02 cm) |
| Openers Down Pressure | 56 kg |
| Openers Down Pressure | 124 lb. |
| Openers Quantity | 26 |
Metering
| Metering Type | Fluted feed |
| Acremeter | Standard |
Seedboot
| Seedboot Type | Cast aluminum or cast iron |
Setup Time
| Setup Time Labor Hours | 3 hr |
Warranty
| Warranty Time Period | 1 year |
Hitch
| Regular Hitch | Yes |
Attachments Available
| Half-Speed Drive | Optional |
| Grass Seed Or Small Seed Legume Box | Optional |
| Outside Disk Scrapers | Optional |
Tires
| Tires - Implement | 7.5-20, 4 PR |
| Tires - Double-Rib, Implement | 7.5-20, 4 PR |
Grain Agitator
| Grain Agitator - Grain Box | Standard |
