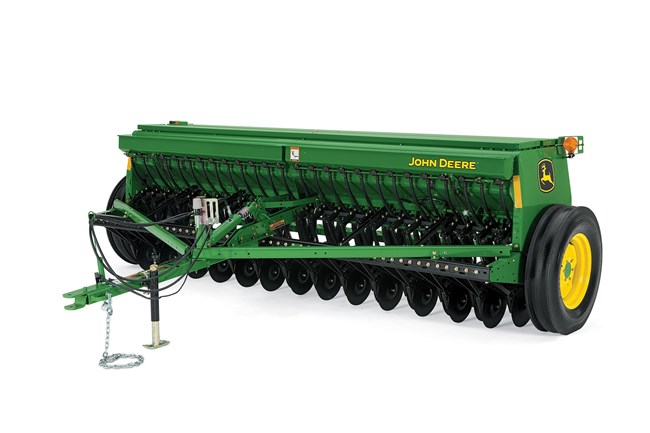

John Deere BD1110 - 7.5-in. Spacing

New Products / John Deere / John Deere Products / Seeding Equipment / Drills / BD1110 - 7.5-in. Spacing

Double tap to zoom



Features

Grass Seedbox Field Attachment Kit

Front left studio view of grass seedbox attached across the top front of a BD11 End-Wheel Grain Drill

Providing reliable fluted force feed, the grass seedbox field attachment kits support the seeding of fine grasses. They are designed for the BD11 Series End-Wheel Grain Drills, ensuring accurate and even seed distribution across various row spacings.

Adjustable Depth Gauge Wheels

Close-up of multiple black gauge wheels on a BD11 End Wheel Grain Drill, showing their metal arms and mounting hardware

The adjustable depth gauge wheels allow for precision in furrow depth control from 0.5 to 3.5 in. (1.3 to 8.9 cm), ensuring optimal seed placement. Mounted to the double-disk opener, it also helps firm one furrow wall, preventing soil collapse.

Seed/Fertilizer Meter Drive System

Studio view of fertilizer metering system on the left back of the BD11 End-Wheel Grain Drill

The seed and fertilizer metering systems are powered by the end wheel. A heavy-duty, high-strength no. 40 roller chain provides a positive drive. Spur gears and sprockets are machined to provide a more accurate fit for longer life. Gears can be interchanged for either a slow or fast speed.

Specifications

Box Capacity

100 Percent Grain Box Capacity0.973 m³
100 Percent Grain Box Capacity27.6 bu
60 Percent Grain Box Capacity18.2 bu
60 Percent Grain Box Capacity0.641 m³
Combo Box Capacity1.198 m³
Combo Box Capacity34 bu
40 Percent Grain Box Capacity0.476 m³
Plain Grain Box Capacity0.987 m³
40 Percent Grain Box Capacity13.5 bu
Plain Grain Box Capacity28 bu
Grass Seed Or Legume (Small Seed) Box Capacity1.5 bu
Grass Seed Or Legume (Small Seed) Box Capacity0.053 m³

Dimensions

Available Row Spacings7.5 in.
Available Row Spacings19.1 cm
Transport Width3.8 m
Transport Width12.6 ft
Transport Ground Clearance13.8 cm
Transport Ground Clearance5.5 in.
Working Width3.3 m
Working Width10.7 ft

Depth gauging press wheels size

Depth Gauging Press Wheels Size - Rubber2.5 x 30.5, 5.1 x 33, 10.2 x 30.5 cm
Depth Gauging Press Wheels Size - Rubber1 x 12, 2 x 13, 4 x 12 in.

Openers

Openers TypeDouble disk, staggered pattern: 13 in. (33.02 cm)
Openers Down Pressure56 kg
Openers Down Pressure124 lb.
Openers Quantity17

Metering

Metering TypeFluted feed
AcremeterStandard

Weight

Combo Box Weight (7.5-In. Spacing)816 kg
Combo Box Weight (7.5-In. Spacing)1800 lb.
Plain Box Weight (7.5-In. Spacing)1600 lb.
Plain Box Weight (7.5-In. Spacing)726 kg

Seedboot

Seedboot TypeCast aluminum or cast iron

Setup Time

Setup Time Labor Hours3 hr

Warranty

Warranty Time Period1 year

Hitch

Regular HitchYes

Attachments Available

Half-Speed DriveOptional
Grass Seed Or Small Seed Legume BoxOptional
Outside Disk ScrapersOptional

Tires

Tires - Implement7.5-20, 4 PR
Tires - Double-Rib, Implement7.5-20, 4 PR

Grain Agitator

Grain Agitator - Grain BoxStandard
