John Deere 1590 - 20-ft

Double tap to zoom



Features

Confidence in Every Pass Through Tough Conditions

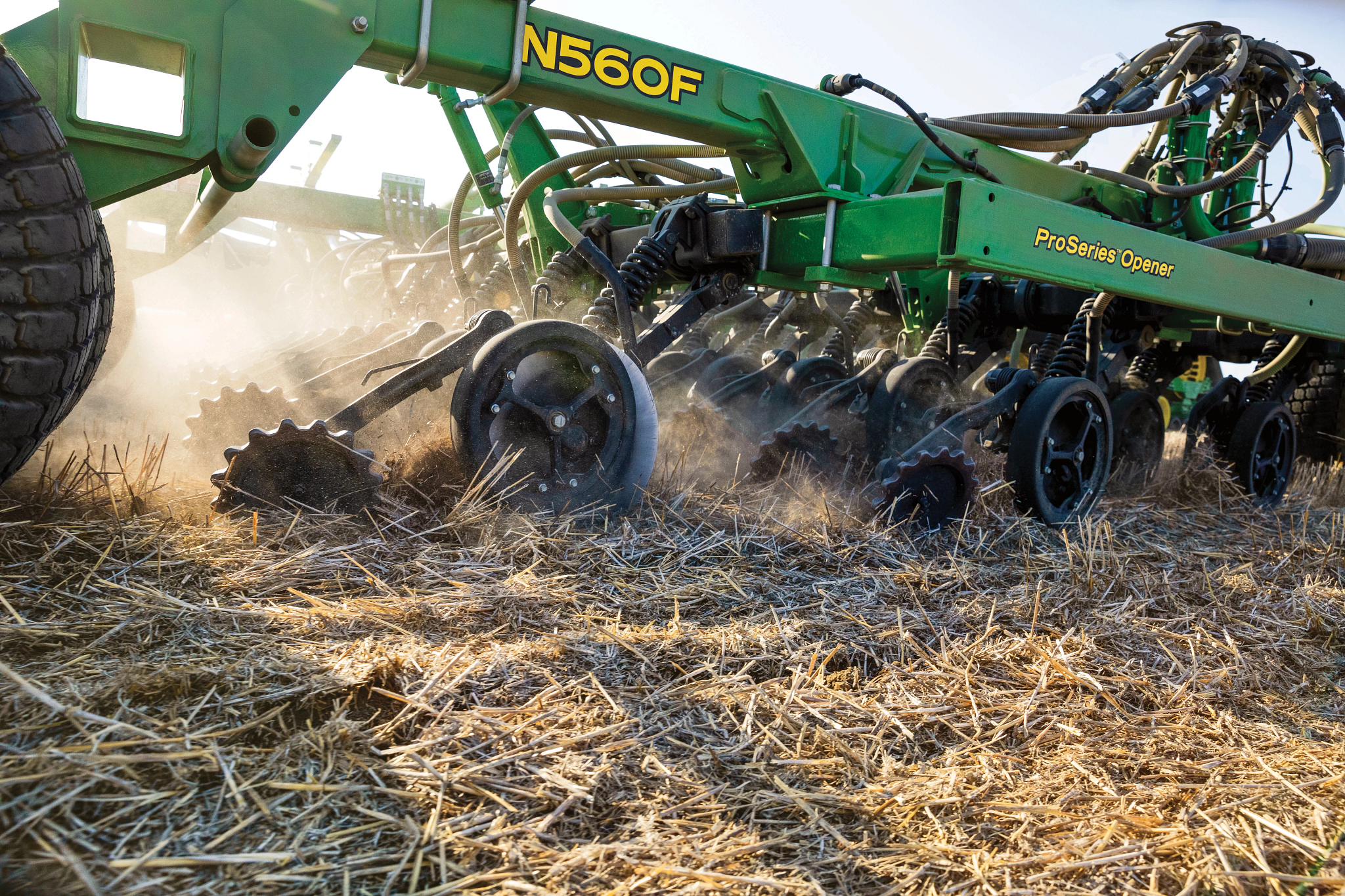

Green John Deere N560F Air Drill operating in a field covered with crop residue, with multiple row units and discs churning soil and kicking up dust

No‑till doesn’t forgive much—residue, uneven ground, and changing soil can all steal stand. John Deere no‑till drills are designed to help keep placement consistent across the field, so emergence is more uniform and you can stop worrying about what you’ll find behind the drill.

See Problems Before They Cost You Acres

Large green agricultural tractor pulling a wide tillage implement across a harvested field of golden corn stubble, with long parallel rows stretching into the distance under a dramatic, overcast sky

Few things sting like learning later you ran plugged. With RelativeFlow™ blockage monitoring, you can watch seed and fertilizer flow from the cab and catch issues early—helping protect the stand, reduce rework, and finish the day knowing you didn’t waste a single pass.

On‑the‑Go Control When Conditions Change by the Hour

Close-up of a John Deere tractor touchscreen displaying downforce controls with gauges and diagrams as a hand presses the screen, with a field and green farm equipment visible through the cab windows and mirrors

When moisture and firmness shift across a field, “set it and forget it” doesn’t work. TruSet™ in‑cab downforce adjustment helps you react in the moment—so depth stays more consistent, emergence stays more even, and you stay in control instead of chasing problems later.

Specifications

Dimensions

Working Width20 ft
Working Width6.1 m
Transport Width20.25 ft
Transport Width6.17 m
Transport Height6.83 ft
Transport Height2.08 m
Overall Length (With Wheels)20 ft
Overall Length (With Wheels)6.1 m
Total Weight Empty12860 lb.
Total Weight Empty5833.2 kg
Hitch Weight Empty4800 lb.
Hitch Weight Empty2177.2 kg
Hitch Weight Full6200 lb.
Hitch Weight Full2812.3 kg
Clearance - Road Opener8 in.
Clearance - Road Opener20.3 cm

Opener Assembly

Number Of Openers24 or 32
Opener Spacing7.5/15/20 in.
Opener Spacing19.1/38.1/50.8 cm
Down PressureActive hydraulic down pressure per opener - 165 to 450 lb (75 to 204 kg)
DiskAt a 7-degree angle - 18 in. (45.7 cm)
Gauge Wheels4.5 x 16 in.
Gauge Wheels11.4 x 40.6 cm
Press Wheels.71 x 10 in.
Press Wheels1.8 x 25.4 cm
Closing Wheels1 x 12 in.
Closing Wheels2.54 x 30.5 cm

Capacities

Plain Grain Capacity70 bu
Plain Grain Capacity2466.7 L
Grain/Fertilizer Capacity74.8 bu
Grain/Fertilizer Capacity2635.9 L

Tractor Requirements

Hydraulic RequirementsOne selective control valve (SCV)
Electrical RequirementsSeven-pin connection

Meters

TypeFluted-feed
