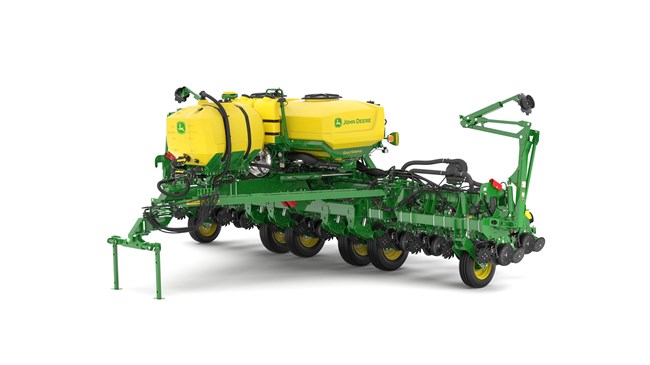

John Deere 1795 12Row Split 24

New Products / John Deere / John Deere Products / Planters / Drawn Planters / 1795 12Row Split 24

Double tap to zoom



Features

Increase Visibility With Planter Auxiliary Camera

Close-up view of machinery with visible hoses and hydraulics, featuring an orange slow‑moving vehicle triangle and a “20 mile/h” sign.

The planter auxiliary camera, compatible with model year 2025 and newer SeedStar™ 5 planters, features an adjustable magnetic mounting base that allows customers to move and adjust the field of view, with video streamed to the CommandCenter™ display.

Improve Liquid Fertilizer Tendering Logistics With Fertilizer Level Sensors

Close-up of hydraulic hoses, fittings, and an electrical sensor mounted under a planter fertilizer tank

Liquid fertilizer level sensing allows farmers to monitor fertilizer levels from the cab via the G5 CommandCenter™ Display in the SeedStar™ app, and enables remote viewing through the John Deere Operations Center™ mobile app.

Improve Seed Tendering Logistics With Central Commodity System (CCS™) Tank Level Sensors

CCS Tanks control panel showing Tank Alarm toggle set to ON, Volume Remaining trigger with 15 bu threshold, and Seed Tank Overview displaying tank levels of 45 bu, 35 bu, and 80 bu. Diagnostics button at bottom.

Seed level sensing helps farmers monitor seed levels to prevent running out of seed and manage tendering logistics efficiently. Farmers can view individual and total tank levels on the G5 CommandCenter™ display, remotely check seed tank levels via John Deere Operations Center™, and receive customizable low seed tank level warning alarms.

Specifications

Drive System

BaseHydraulic variable rate drive

Row Units

TypeStandard: MaxEmerge™ 5 row units; Optional: ExactEmerge™ row units MaxEmerge 5e row units
OpenerTru-Vee™ double disk
Seed Hopper Capacity0.062 bu
Seed Hopper Capacity2.2 L

Dimensions

Transport Width (With Markers)13.27 ft
Transport Width (With Markers)4.043 m
Transport Length29.25 ft
Transport Length8.914 m
Transport Height13.48 ft
Transport Height4.111 m
Field Operation Width32.39 ft
Field Operation Width9.874 m
Field Operation Length23.46 ft
Field Operation Length7.151 m

Additional Information

Recommended Tractor HorsepowerMinimum required for 9.1 m (30 ft) models: 270 hp 201.3 kW; Minimum required for 12.2 m (40 ft) models: 360 hp 268.5 kW
Recommended Tractor HydraulicsHydraulic oil pump required to operate ExactEmerge™ planter: 60 gpm 227 L/min; Tractor standby pressure: 2300 psi 158.6 bar; Hydraulic system working pressure: 3000 psi 206.8 bar; Hydraulic system burst pressure: 12,000 psi 827.4 bar

Fertilizer

Tank Capacity420 gal.
Tank Capacity1590 L
ExactRate Fluid Transfer SystemAvailable

Rows and Row Spacing

Number Of Rows24
Row Spacing15 in.
Row Spacing38 cm

Seed Meters

Base Seed MeterVacuum
CCS Seed Capacity - Without Liquid Tank100 bu
CCS Seed Capacity - Without Liquid Tank3524 L
CCS Seed Capacity - With Liquid Tank70 bu
CCS Seed Capacity - With Liquid Tank2467 L

Lift System

TypeWheel modules with rephasing hydraulic cylinders

Frame

Frame Flexibility - Up15 degree (angle)
Frame Flexibility - Down15 degree (angle)

Tires

BaseWing tires: VF245/70R19.5; Center tires: VF295/75R22.5

Seed Monitor System

BaseSeedStar™ on GreenStar™ displays

Markers

TypeAutomatic alternating or independent control
