Features

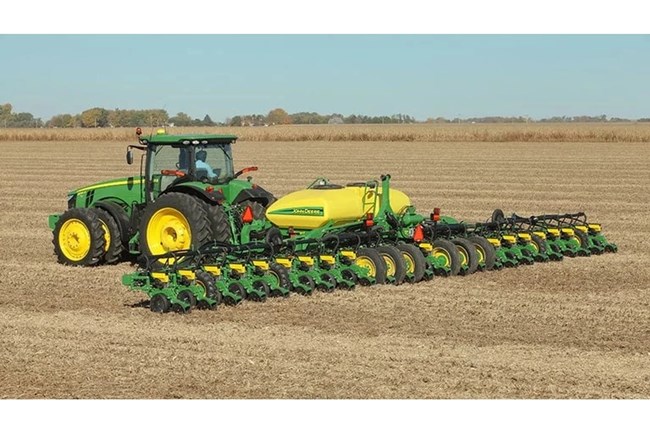

Plant with Confidence and Simplicity
When the field is fit, you need a planter that’s easy to run and delivers consistent results. With proven MaxEmerge™ 5 row units, vacuum metering, and practical features like pneumatic downforce and row-cleaner options, this lineup helps you place seed with confidence.
Right-Sized for Real Fields and Real Roads
Not every operation needs the biggest planter - just the right one. From rigid integral frames to stack-fold, pivot-fold, and flex wing-fold designs, these planters are built to fit tighter field shapes, smaller acreages, and narrow transport situations, so moving between fields stays manageable and planting stays efficient.
Planters That Can Grow With You
John Deere has planter options for where you are today and where you want to be tomorrow, setting your operation up with a strong foundation with flexible configurations. Choose row counts, spacings, and hopper sizes that match your operation, with options like variable-rate drive, row cleaners, and downforce choices - so you invest where it matters today and prepare your planter for upgrades tomorrow.
Specifications
Drive System
| Base | Electric drive, 56 V |
Row Units
| Type | ExactEmerge™, MaxEmerge™ 5e, or MaxEmerge 5 row units |
| Opener | Tru-Vee double disk |
| Row Unit Seed Hoppers | Mini-Hopper |
| Seed Hopper Capacity | 1.6, 3 bu |
| Seed Hopper Capacity | 56.4, 105.7 L |
Additional Information
| Recommended Tractor Horsepower | Vacuum system hydraulic drive: horsepower required: 4.5-10.4 kW 6-14 hp; Minimum tractor size: 201 kW 270 hp; Tractor recommendation: Current model (minimum) 8430 MFWD with dual rear tires and 20 front weights |
| Recommended Tractor Hydraulics | Hydraulic oil required to operate the planter: 227 L/min 60 gpm; Hydraulic system standby pressure: 15,513 kPa 155 bar (2250 psi); Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi); Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi) |
Rows and Row Spacing
| Number Of Rows | 24 |
| Row Spacing | 20, 22, 30 in. |
| Row Spacing | 50.8, 55.9, 76.2 cm |
Dimensions
| Transport Width (Without Markers) | 14.25-28.083 ft |
| Transport Width (Without Markers) | 4.34-8.56 m |
| Transport Height | 5.17-13.17 ft |
| Transport Height | 1.58-4.01 m |
| Transport Underframe Clearance | 13.2 ft |
| Transport Underframe Clearance | 4 m |
Frame
| Frame Fold Configuration | Stack-folding |
| Frame Flexibility - Up | 10 degree (angle) |
| Frame Flexibility - Down | 7 degree (angle) |
Lift System
| Type | 3-point or Semi-integral/drawn |
Seed Meters
| Base Seed Meter | Vacuum |
| CCS Seed Capacity | 55, 100 bu |
| CCS Seed Capacity | 1938.2, 3523.9 L |
Tires
| Base | 12.5L-15SL 20 ply implement: 303 kPa 3.0 bar (44 psi); 7.60-15 8 ply implement: 359 kPa 3.6 bar (52 psi); 7.6-15 6 ply - traction: 276 kPa 2.8 bar (40 psi) |
Seed Monitor System
| Base | SeedStar™ electronic system |
