Features
Increase Visibility With Planter Auxiliary Camera
The planter auxiliary camera, compatible with model year 2025 and newer SeedStar™ 5 planters, features an adjustable magnetic mounting base that allows customers to move and adjust the field of view, with video streamed to the CommandCenter™ display.

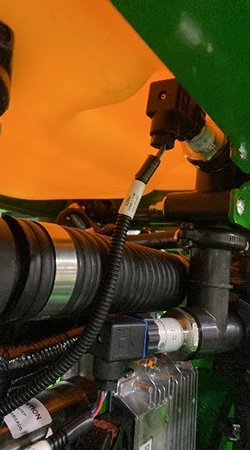

Improve Liquid Fertilizer Tendering Logistics With Fertilizer Level Sensors
Liquid fertilizer level sensing allows farmers to monitor fertilizer levels from the cab via the G5 CommandCenter™ Display in the SeedStar™ app, and enables remote viewing through the John Deere Operations Center™ mobile app.

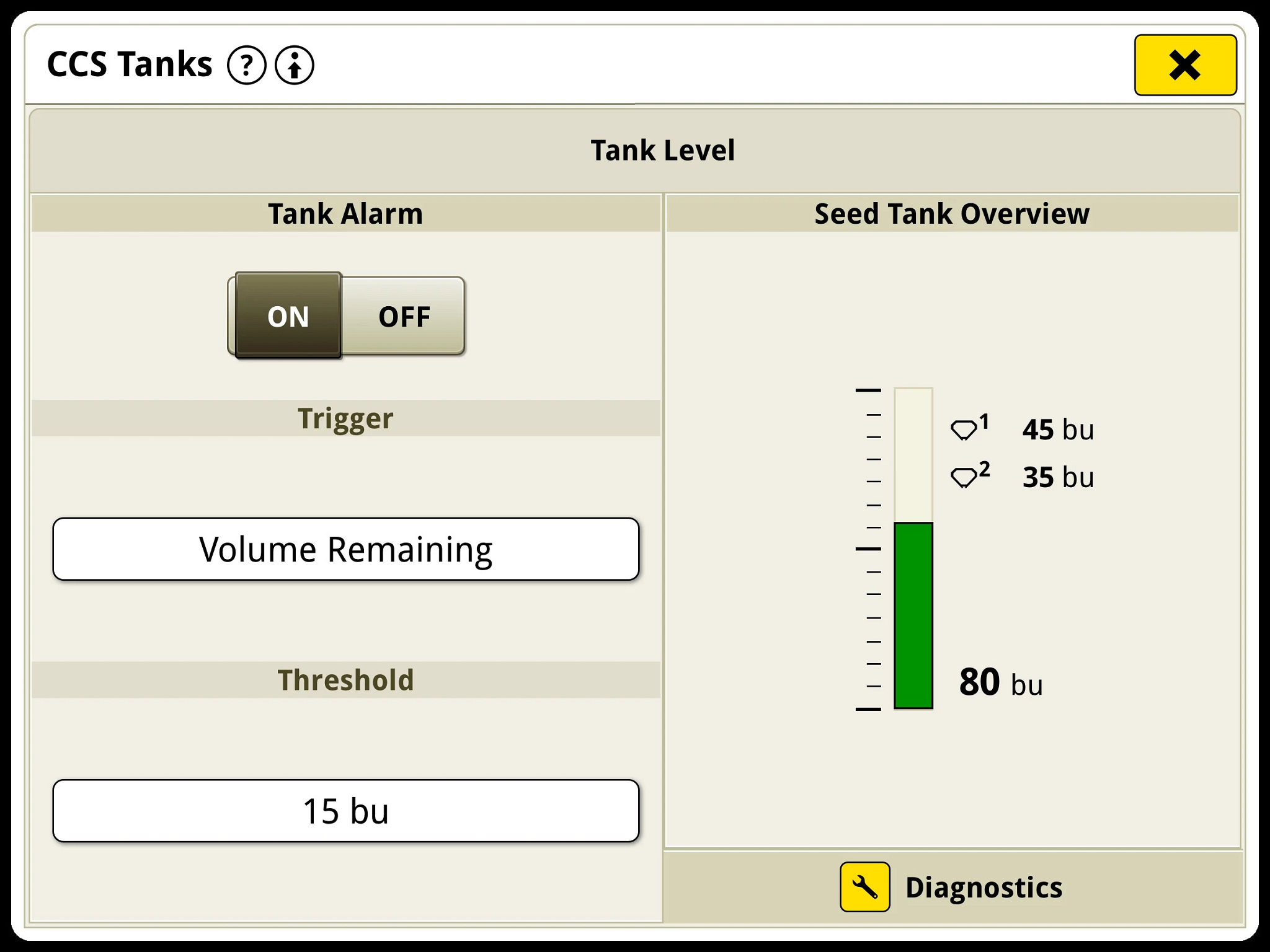

Improve Seed Tendering Logistics With Central Commodity System (CCS™) Tank Level Sensors
Seed level sensing helps farmers monitor seed levels to prevent running out of seed and manage tendering logistics efficiently. Farmers can view individual and total tank levels on the G5 CommandCenter™ display, remotely check seed tank levels via John Deere Operations Center™, and receive customizable low seed tank level warning alarms.
Specifications
Drive System
| Base | Electric motors: 56 V |
Row Units
| Type | ExactEmerge™ row units or MaxEmerge™ 5e row units |
| Opener | Tru-Vee double disk |
| Row Unit Seed Hoppers | Vacuum meter |
| Seed Hopper Capacity | 0.062 bu |
| Seed Hopper Capacity | 2.2 L |
| Row Unit Down Force | Active Pneumatic Downforce or Individual Row Hydraulic Downforce |
Dimensions
| Transport Width (With Markers) | 16 ft |
| Transport Width (With Markers) | 4.9 m |
| Transport Length | 41 ft |
| Transport Length | 12.5 m |
| Transport Height | 10 ft |
| Transport Height | 3 m |
| Transport Weight | Average empty weight: 15,785 kg 34,800 lb |
| Transport Underframe Clearance | 22 ft |
| Transport Underframe Clearance | 55.9 m |
Additional Information
| Recommended Tractor Horsepower | Requires tractor equipped with Category 4 drawbar and minimum 205 kW/275 hp |
| Recommended Tractor Hydraulics | Hydraulic oil pump required to operate electric drive planter: 227 L/min 60 gpm; Tractor standby pressure: 15,500 kPa 155 bar (2300 psi); Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi); Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi) |
Fertilizer
| Tank Capacity | 600 gal. |
| Tank Capacity | 2271 L |
| ExactRate Fluid Transfer System | Available |
Rows and Row Spacing
| Number Of Rows | 36 |
| Row Spacing | 20 in. |
| Row Spacing | 50.8 cm |
Seed Meters
| Base Seed Meter | Vacuum |
| Central Commodity System (CCS) | Seed capacity |
| CCS Seed Capacity | 130 bu |
| CCS Seed Capacity | 4581 L |
Frame
| Frame Fold Configuration | 3-section front-fold |
| Frame Flexibility - Up | 15 degree (angle) |
| Frame Flexibility - Down | 15 degree (angle) |
Lift System
| Type | Wheel modules with rephasing hydraulic cylinders |
Tires
| Base | Center frame tires: 400/500-R22.5: 552 kPa 5.5 bar (80 psi); Center frame tires: 600/50R22.5: 379 kPa 3.8 bar (55 psi); 14-ply Center frame tires: 31-13.5x15 621 kPa 6.2 bar (90 psi); Center frame tires (DB66 and smaller planters): 445/50R22.5: 517 kPa (5.2 bar) [75 psi]; 6-ply wing frame implement tires: 31-13.5x15: 152 kPa (1.5 bar) [22 psi]; 8-ply wing frame skid steer tires: 31-13.5x16.5: 241 kPa (2.4 bar) [35 psi] |
Seed Monitor System
| Base | SeedStar™ electronic system |
Markers
| Type | Automatic alternating or independent control |
