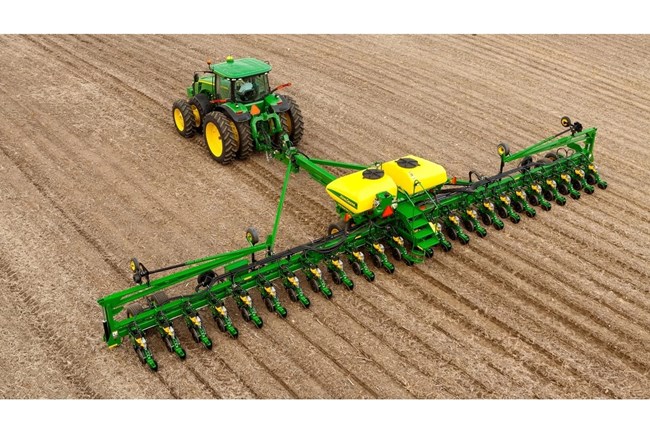

John Deere DB60 24Row30/47Row15

New Products / John Deere / John Deere Products / Planters / DB Planters / DB60 24Row30/47Row15

Double tap to zoom



Features

Improve Liquid Fertilizer Tendering Logistics With Fertilizer Level Sensors

Close-up of hydraulic hoses, fittings, and an electrical sensor mounted under a planter fertilizer tank

Liquid fertilizer level sensing allows farmers to monitor fertilizer levels from the cab via the G5 CommandCenter™ Display in the SeedStar™ app, and enables remote viewing through the John Deere Operations Center™ mobile app.

Improve Seed Tendering Logistics With Central Commodity System (CCS™) Tank Level Sensors

CCS Tanks control panel showing Tank Alarm toggle set to ON, Volume Remaining trigger with 15 bu threshold, and Seed Tank Overview displaying tank levels of 45 bu, 35 bu, and 80 bu. Diagnostics button at bottom.

Seed level sensing helps farmers monitor seed levels to prevent running out of seed and manage tendering logistics efficiently. Farmers can view individual and total tank levels on the G5 CommandCenter™ display, remotely check seed tank levels via John Deere Operations Center™, and receive customizable low seed tank level warning alarms.

Increase Visibility With Planter Auxiliary Camera

Close-up view of machinery with visible hoses and hydraulics, featuring an orange slow‑moving vehicle triangle and a “20 mile/h” sign.

The planter auxiliary camera, compatible with model year 2025 and newer SeedStar™ 5 planters, features an adjustable magnetic mounting base that allows customers to move and adjust the field of view, with video streamed to the CommandCenter™ display.

Specifications

Markers

Type3-section front-fold
ControlBase: Independent
Marker DiskBase: Notched with depth gauging band: 40.6 cm 16 in.
Less Marker OptionOptional

Drive System

BaseThree-motor hydraulic variable rate drive
Counter ShaftHex: 2.22 cm 0.875 in.
Drill ShaftHex: 2.22 cm 0.875 in.
Transmission CombinationsInfinite

Row Units

TypeExactEmerge™ row units or MaxEmerge™ 5e row units or MaxEmerge™ 5 row units
Depth Gauging(2) semi-pneumatic wheels: 11.4x40.6 cm 4.5x16 in.
AdjustmentT-handle depth: 0.635-10.2 cm 0.25-4 in. with increments of 0.635 cm 0.25 in.
Walking WheelsOptional
Row Unit Seed HoppersMini hoppers
Seed Hopper Capacity0.063 bu
Seed Hopper Capacity2.24 L
Seed Hopper MaterialPlastic
Row Unit Down ForceBase equipment
Pneumatic Down ForceBase, Infinitely adjustable to 181.4 kg 400 lb
Scrapers, Opener BladeOptional
Plastic Rotary Opener BladesOptional
Steel Straight Opener BladesOptional
Heavy-Duty Opener BladesOptional
Seed Tube SensorsBase equipment

Closing System

Rubber Tire Closing SystemBase equipment
Rubber Tire Closing System - Wheel(2) rubber tires with nylon wheels: 2.54x30.5 cm 1x12 in.
Rubber Tire Closing System - PositionIn-line or staggered
Rubber Tire Closing System - AdjustmentT-handle
Rubber Tire Closing System - Down Force5-position
Rubber Tire Closing System - AlignmentAdjustable
Cast Iron Closing SystemOptional
Cast Iron Closing System - Wheel(2) cast iron wheels: 2.54x30.5 cm 1x12 in.
Cast Iron Closing System - PositionIn-line or staggered
Cast Iron Closing System - AdjustmentT-handle

Frame

Frame Fold Configuration3-section front-fold
Frame Tube Size7x7 in.
Frame Tube Size17.8x17.8 cm
Fold-And-Go From TractorBase
Frame Flexibility - Up15 degree (angle)
Frame Flexibility - Down15 degree (angle)

Additional Information

Warranty Length1 year

Dimensions

Transport Width (With Markers)17.5 ft
Transport Width (With Markers)5.4 m
Transport Length41 ft
Transport Length12.5 m
Transport Height10 ft
Transport Height3 m
Transport Weight29800 lb.
Transport Weight13517 kg
Transport Underframe Clearance22 ft
Transport Underframe Clearance55.9 m

Ag Management Solutions

Map-Based SeedingYes
Field DocumentationYes
Parallel TrackingYes

Liquid Insecticide System

Tank Capacity420 gal.
Tank Capacity1590 L

Lift System

TypeElectrohydraulic series rephasing cylinders with center sec. drop axle
Number Of Cylinders5

Seed Meters

Base Seed MeterVacuum
Central Commodity System (CCS)Base equipment
CCS Seed Capacity130 bu
CCS Seed Capacity4581 L

Tires

Base(4) 16.5x16.1, (4) 31-13.5x15
Quantity8

Seed Monitor System

BaseSeedStar™ electronic system

Rows and Row Spacing

Number Of Rows47
Row Spacing15 in.
Row Spacing38.1 cm

Tillage Attachments

Unit-Mounted CoulterOptional

Hitch

BaseDrawbar
