Features
eHydro™ Hydrostatic Pump and Standard GRIP AWD for Serious Hill-Climbing Capabilities
The electronically-controlled eHydro™ traction pump powers wheel motors for enhanced performance and traction, especially in undulating terrain. This linkage-free design significantly reduces parts in the traction system and maintenance requirements. For even more capability in tougher conditions, the optional GRIP All-wheel Drive system provides power to the two rear wheels. This system transfers hydraulic fluid from wheels that slip to wheels that grip, increasing traction on both hills and side slopes.
Rugged, Reliable Stamped Rear Discharge Decks With Easy Tooled Notch Height of Cut System
A tough, stamped 10-gauge deck shell design provides strength, while a steel frame is bolted to the shell for even more added strength. The rear discharge design helps minimize clumping in lush conditions. Deck adjustments are simple using 2 15 mm wrenches and an easily identifiable notch system to accurately identify the height of cut selection.
On-Board Weight Transfer Optimizes Traction in Tough Conditions

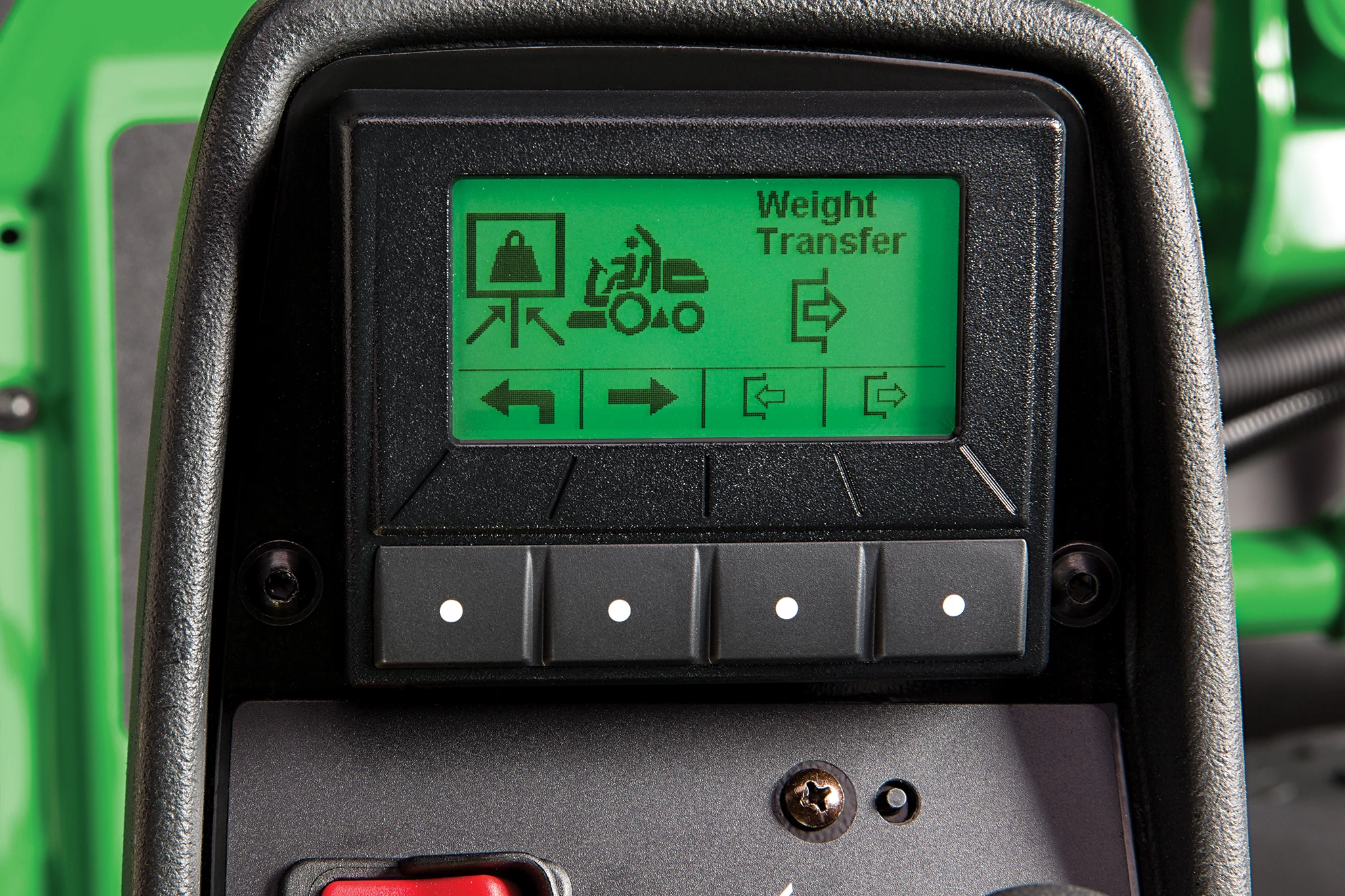

When the going gets tough, operators can increase traction performance by utilizing the Weight Transfer setting within the TechControl display. A lower number on the setting puts more weight on the decks rather than the traction tires and enhances contour following. However, in conditions where the traction system needs an additional boost, the operator can select a higher setting and transfer more weight from the machine decks onto the traction tires, improving traction capabilities.
Specifications
Dimensions
| Height With ROPS | 222 cm |
| Height With ROPS | 87.4 in. |
| Length | 339.3 cm |
| Length | 134 in. |
| Transport Width | 2287 mm @ 101.60 mm height of cut; 90 in. @ 4 in. height of cut |
| Mowing Position Width | 2.74 m; 17.15 cm overlap between front and rear decks; 9 ft; 108 in. overlap between front and rear decks |
| Wheelbase | 175 cm |
| Wheelbase | 68.9 in. |
| Ground Speed - Mowing | 12.8 km/h |
| Ground Speed - Mowing | 8 mph |
| Ground Speed - Transport | 20.12 km/h |
| Ground Speed - Transport | 12.5 mph |
| Ground Speed - Reverse | 6.4 km/h |
| Ground Speed - Reverse | 5 mph |
Vehicle
| Traction Drive | eHydro™ servo controlled hydraulic traction pump provides flow to All-wheel-drive GRIP system; GRIP traction provides hydraulic flow between front and opposite rear wheel for increased traction to reduce high side tire slippage |
| Drive Pump | Tandem gear pump |
| Cutting Units Drive | Direct-coupled hydraulic gear motor |
| Hydraulic System Capacity | 45.4 L |
| Hydraulic System Capacity | 12 U.S. gal. |
| Fuel Tank Capacity | 60.6 L |
| Fuel Tank Capacity | 16 U.S. gal. |
| Steering | Hydraulic power with dual rod, double acting steering cylinder |
| Front Drive Tires | 26.5x14-12 6PR Ultra Trac |
| Steering Tires | 20x12-10 4PR Turf |
| Ground Pressure | 82.7 - 124 kPa |
| Ground Pressure | 12-18 psi |
| Brakes | Internal hydraulic wet disc brakes with dynamic braking through closed loop hydrostatic system |
| ROPS | Standard, meets ISO 21299 standards |
Controls
| Throttle | No throttle lever; Automatic controls with AutoPedal foot controls; manual control through TechControl display |
| Forward/Reverse | 2-pedal |
| Mower Lift | One-touch single handle |
| Parking Brake | Electric Switch on Command Arm for Internal Wet Disk Brakes |
| Seat | Air Ride Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment |
| PTO | Electric Switch on Command Arm for quick and easy transition from mow to transport |
| Ignition | Key Switch on Command Arm |
| Work Lights | 3 standard work lights in front |
| Tilt Steering | Left Foot operated for easy adjustment |
| Operator Display | TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy-to-read screen; quick on the go settings for mow and transport speed; Turn Speed; LoadMatch and ON/OFF Weight Transfer and Cruise Control Use selection; Cutting unit drop rate adjustment; All settings are passcode protected |
| Storage | Operator storage located on left side for easy access from operator seat |
Cutting Units
| Number | 5 |
| Cutting Unit Size | 68.58 cm |
| Cutting Unit Size | 27 in. |
| Cutting Width | 108 in. |
| Cutting Width | 274 cm |
| Height-Of-Cut | 1.91 to 10.2 cm; no tool adjustment; 0.75 to 4 in.; no tool adjustment |
| Construction | Single sheet 10-gauge steel stamped deck with front skid plate; 1.5 in. (38 mm) tall and 0.5 in. (12.7 mm) thick steel stock welded to the decks edge |
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) | 409 m; 16,097 fpm |
| Rollers | Rear: 7.62 cm, 3 in.; Front: 12.70 cm, 5 in. |
Engine
| Type | Direct Inject Turbocharged Diesel B20 compliant |
| Compliant Emission Regulation | United States/Canada Final Tier 4 |
| Maximum Engine Power | 2800 rpm |
| Maximum Engine Power | 41.1 kW |
| Maximum Engine Power | 55.1 hp |
| Cylinders | 4 |
| Displacement | 2.091 L |
| Displacement | 127.6 cu in. |
| Air Cleaner | 2-stage dry element |
| Fuel | Diesel up to B20 compliant |
| Cooling System | Liquid centrifugal pump; forward machine location for optimum cooling |
Warranty
| Type | Two-year limited |
Sound Levels
| Operator Ear Full Engine RPM | 90 dBA |
| Measuring Standard | ISO 11201 |
Certification
| Type | ANSI B71.4-2012.; CE |
Fuel Economy
| Actual Fuel Usage Will Vary Depending On Course Conditions, Operation, Turf And Fuel Quality | 25% load 3.63 L/h (0.96 gph); 40% Load 5.64 L/h (1.49 gph); 50% Load 6.85 L/h (1.81 gph) |
Operating Weight
| Cutting Units Lowered | 1814.37 kg, 4000 lb with decks up |
