Features
Standard GRIP All-Wheel Drive Provides Excellent Hill Climbing Capabilities
For increased capabilities in tougher conditions, the standard GRIP All-wheel Drive system provides power to all three wheels. This system transfers hydraulic fluid from wheels that slip to wheels that grip, increasing traction on both hills and side slopes.

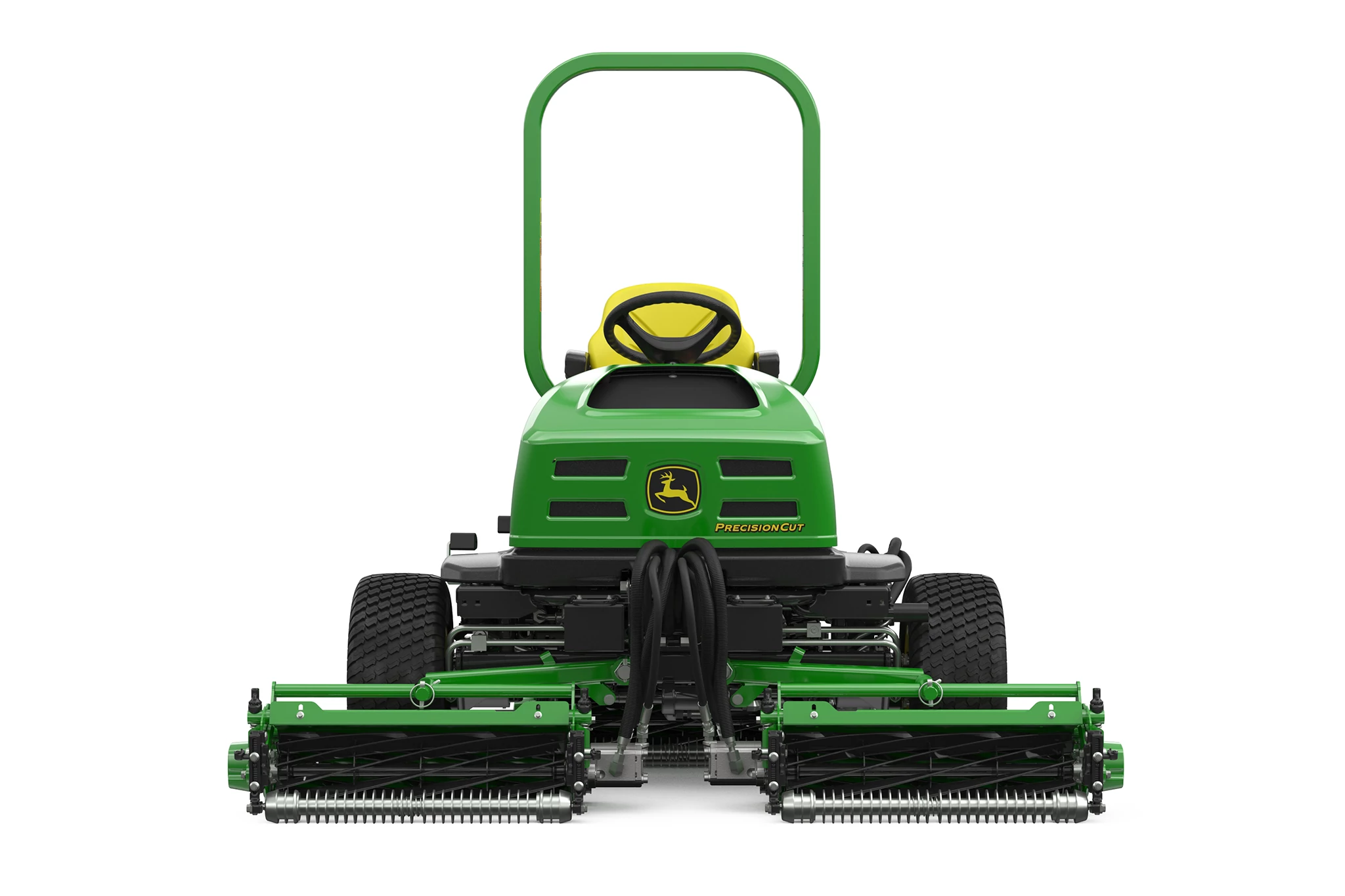

Productive 72 in. or 84 in. Width of Cut With Quick Adjust 7 Cutting Units
The 26 in. Quick Adjust 7 option provides for more contour following capability and less scalping opportunities across a 72 in. total width of cut. For added productivity, 30 in. Quick Adjust 7 cutting units increase the width of cut to 84 in. The Speed Link™ height of cut system adjusts both sides of the rear roller at the same time for quick and easy height of cut changes. A notch reel to bedknife adjustment is quick and easy and maintains proper clearance in tough mowing conditions.

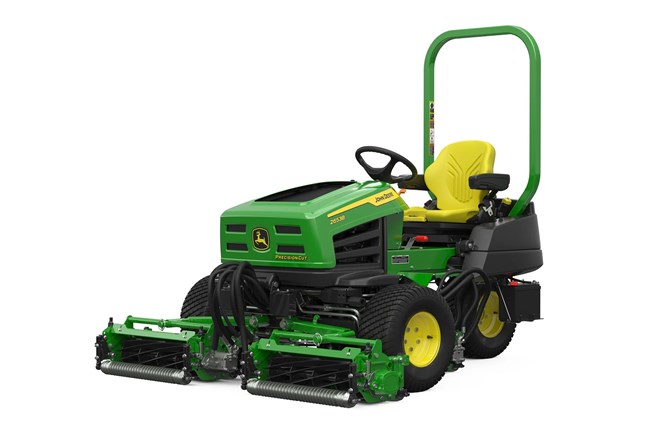

Wide Stance and Low Center of Gravity for Stability
A wide 55 in. wheelbase and a front-mounted engine combine to offer a low-profile machine with a low center of gravity, increasing overall stability in trim and surrounds applications.
Specifications
Engine
| Engine Type | Indirect Inject Diesel |
| Fuel | Diesel |
| Maximum Engine Power | 14.6 kW |
| Maximum Engine Power | 19.1 hp |
| Engine Power (Gross) Per SAE J1995 @ 3000 RPM | 14.6 kW |
| Engine Power (Gross) Per SAE J1995 @ 3000 RPM | 19.6 hp |
| Engine Power (Net) Per SAE J1349 @ 3000 RPM | 14.2 kW |
| Engine Power (Net) Per SAE J1349 @ 3000 RPM | 19.1 hp |
| Air Cleaner | Dual-stage, restriction indicator |
| Cooling | Liquid |
| Oil Filter | Full-flow filter |
| Engine Oil Capacity | 3.1 L |
| Engine Oil Capacity | 3.1 U.S. qt |
| Pressurized Lubrication System | Standard |
| Number Of Cylinders | 3 |
| Displacement | 854 cc |
| Displacement | 52.1 cu in. |
Mower
| Number | 3 reel cutting units |
| Mower Size | 66 cm |
| Mower Size | 26 in. |
| Number of Blades | Five or eight |
| Backlapping | Standard |
| Clip Frequency - 5-Blade Cutting Unit | 3.17 mm/km/h |
| Clip Frequency - 5-Blade Cutting Unit | 0.201 in/mph |
| Clip Frequency - 8-Blade Cutting Unit | 1.99 mm/km/h |
| Clip Frequency - 8-Blade Cutting Unit | 0.126 in/mph |
| Front Rollers | 7.5 cm |
| Front Rollers | 3 in. |
| Reel Diameter | 17.8 cm |
| Reel Diameter | 7 in. |
| Bedknife Adjustment | Reel-to-bedknife |
| Certification | ANSI B71.4-2004; 2-Post SAE J21294 Roll Over Protection Structure with seat belts meets ISO 21299 standard; Yanmar engine meets EPA Tier 2, Interim Tier 4, and Tier 4 |
Wheel Motor And Reel Drive
| Drive Wheels | Hydraulic, standard 3WD |
| Traction Drive | 3 Wheel Drive Hydrostatic, equal traction to all wheels |
| Implement And Reel Pump | Gear |
| Reel Control Valves | Micro-backlap valve with reel speed control |
| Filtration | 10 micron and 100 mesh strainer |
| Cutting Unit Lift | 2 hydraulic cylinders |
Machine
| Wheels And Tires | Standard turf |
| Wheels And Tires - Front | 20x10-10 |
| Wheels And Tires - Rear | 20x10-8 |
| Braking System | 2-wheel disc; hand controlled park brake; dynamic braking through closed loop traction system |
| Mowing Speed | 8 km/h |
| Mowing Speed | 5 mph |
| Transport Speed | 13.7 km/h |
| Transport Speed | 8.5 mph |
| Reverse Speed | 4.8 km/h |
| Reverse Speed | 3 mph |
| Ground Clearance | 14 cm |
| Ground Clearance | 5.5 in. |
| Fuel Tank Capacity | 28 L |
| Fuel Tank Capacity | 7.4 U.S. gal. |
| Hydraulic Reservoir Capacity | 20.8 L |
| Hydraulic Reservoir Capacity | 5.5 U.S. gal. |
Operator Controls
| Steering | Hydraulic power steering |
| Lift And Lower Of Cutting Units | One-touch hand controlled |
| Mower Engagement | Hand |
| Throttle | Hand |
| Park Brake | Hand |
| Hydrostatic Speed - Forward | Foot |
| Hydrostatic Speed - Reverse | Foot |
| Ignition | Key switch, automatic glow plug |
Weight And Dimensions
| Wheelbase | 140 cm |
| Wheelbase | 55 in. |
| Tread Width | 132 cm |
| Tread Width | 52 in. |
| Cutting Width | 183/213 cm |
| Cutting Width | 72/84 in. |
| Height | 208.3 cm |
| Height | 82 in. |
| Turning Radius, Uncut Circle | 50.8 cm |
| Turning Radius, Uncut Circle | 20 in. |
| Weight (Full Fluids, No Operator, No Fuel), 26-in. Units Raised | 863.1 kg |
| Weight (Full Fluids, No Operator, No Fuel), 26-in. Units Raised | 1903 lb. |
Electrical And Safety Interlocks
| Diagnostics | On-board diagnostics with the White Box Controller and (SOS) Sit on Seat Diagnostics |
| Safety Interlock Switches | Neutral start switch, operator presence switch (in seat), mow/transport switch, park brake set switch |
Instrumentation
| Engine Oil Pressure | LED Warning Light |
| Alternator | LED Warning Light |
| Hydraulic Oil Temperature | LED Warning Light |
| Engine Coolant Temperature | LED Warning Light |
Sound Levels
| Operator Ear | 87 dBA |
| Measuring Standard | ISO 11201 |
| Attachments Installed | Reels Engaged |
