Features
Cut Quality, Regardless of Operator, With Passcode-Protected TechControl Display
The innovative, passcode-protected TechControl display allows trusted supervisors to control a wide range of machine operating parameters, including engine speed, reel mode, max transport speed, max reverse speed, max mow speed, turn speed, cleanup pass speed, cutting unit lift and lower rates, and more! This interface ensures consistency of performance from machine to machine across the entire fleet, as well as consistency of operation from operator to operator.

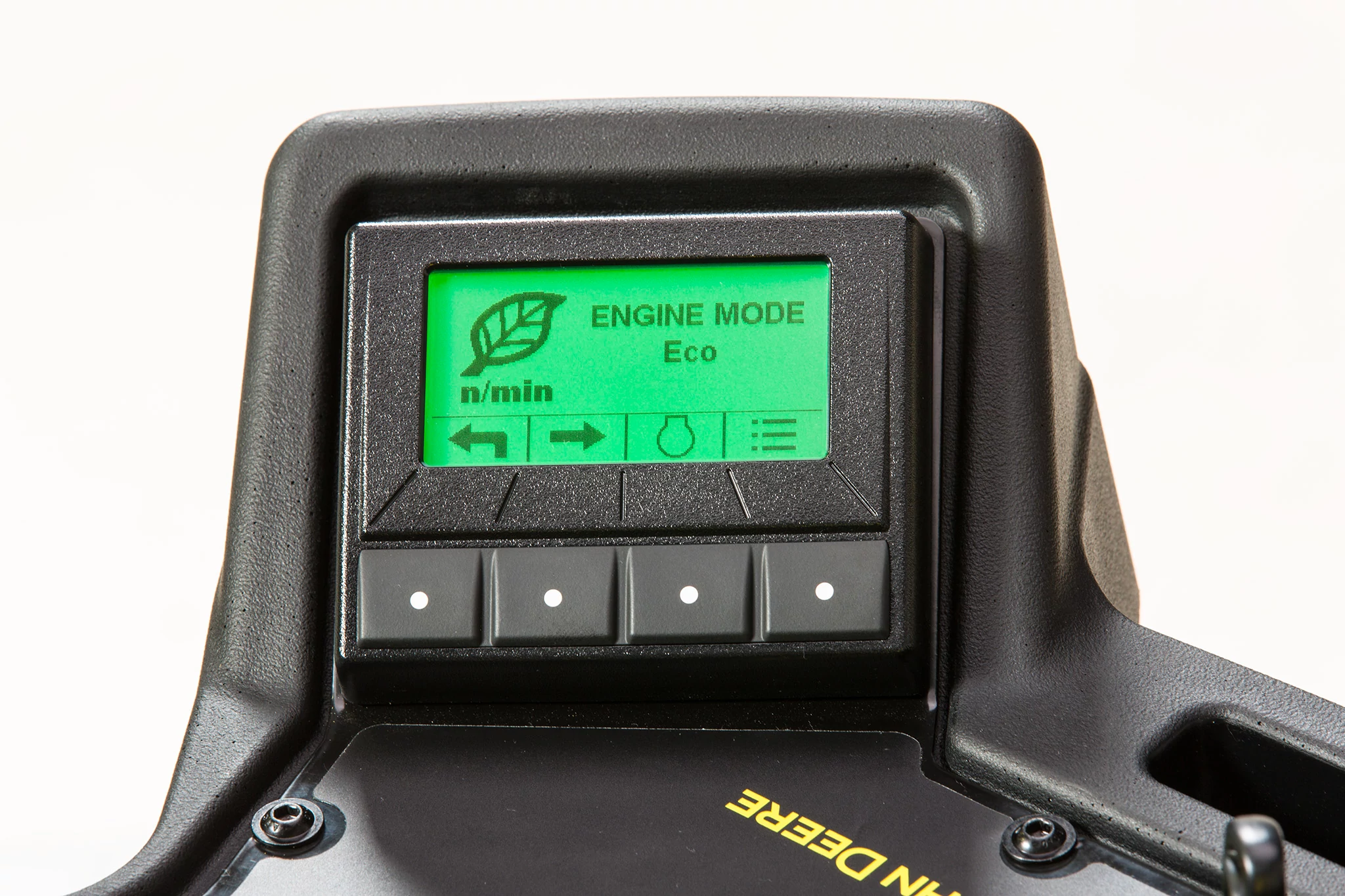

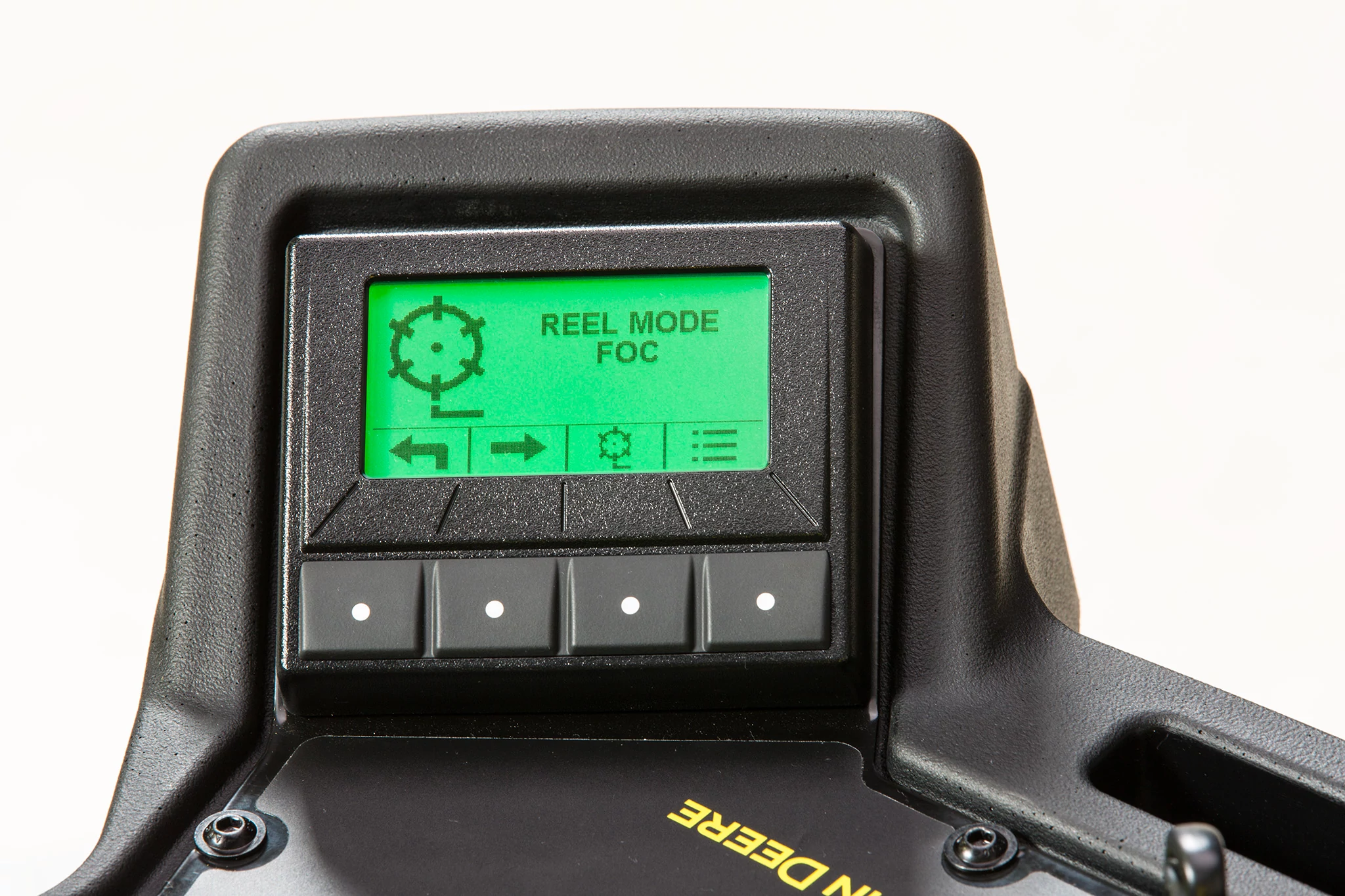

Customizable Engine and Reel Modes Deliver Premium Cut Quality With Optimal Efficiency
The TechControl display includes three engine operating modes (Eco, Min, Max) and three reel modes (FOC, Fixed, Off) to choose from. Save fuel and reduce sound levels while mowing in Eco and Min engine modes or achieve full time maximum power for verticutting and scalping with Max mode. Achieve premium cut quality automatically by linking reel speed to ground speed in FOC (Frequency of Clip) mode, or constant reel RPM regardless of ground speed with Fixed mode. These operating modes allow supervisors to optimize engine efficiency and provide premium cut quality in a variety of course conditions and applications.

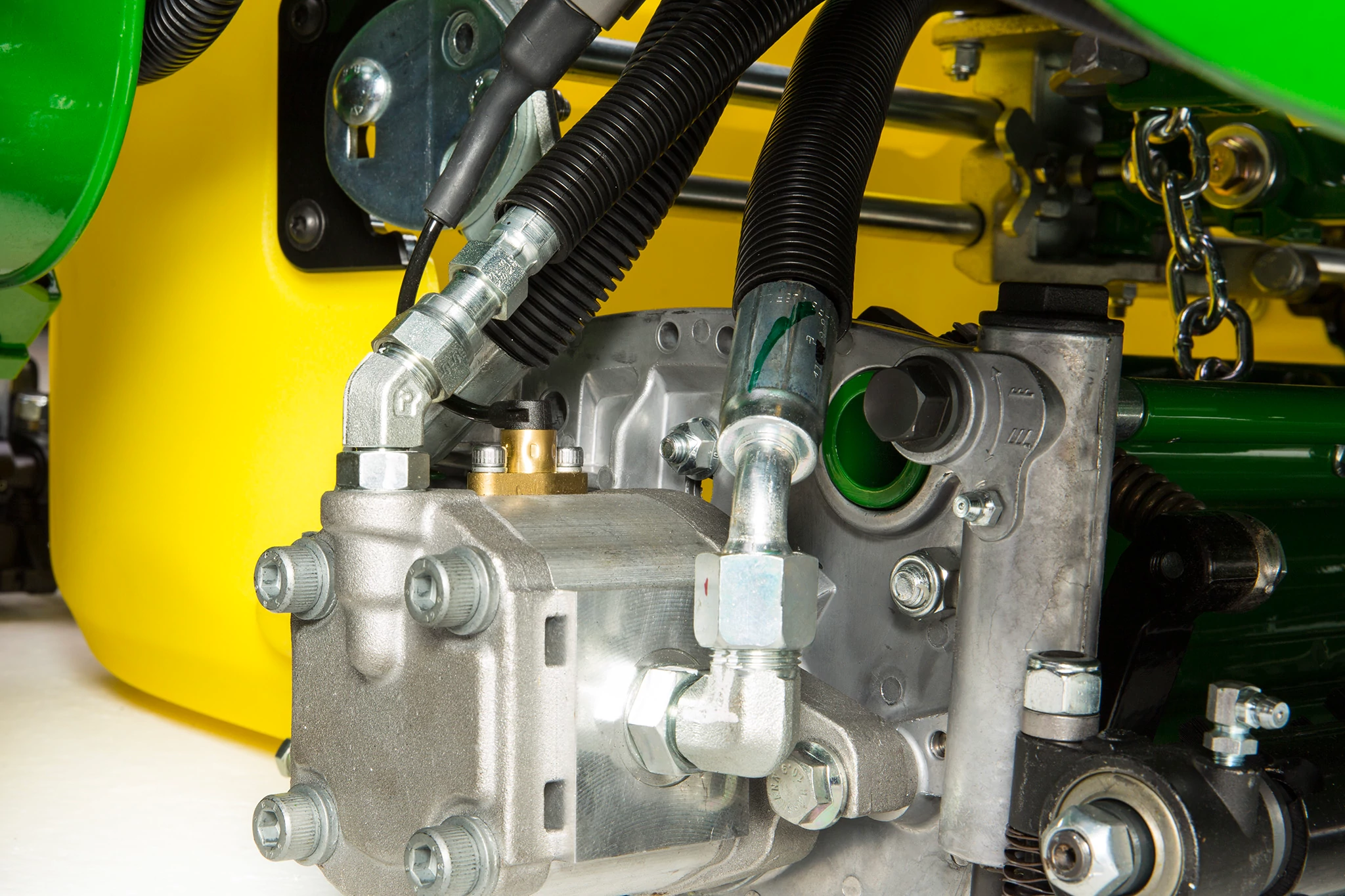

Industry-Exclusive Frequency of Clip Control With Hydraulic Reel Drive
Frequency of Clip is normally only able to be controlled on machines with electric or mechanical reel drive systems. These machines change the game by using proportional hydraulic mow valves, electronic pedal inputs, and wheel speed sensors to automatically adjust reel speed to the desired ground speed when operating in Frequency of Clip Mode. This system maintains cut quality all day regardless of an operator’s mowing speed.
Specifications
Cutting Units
| Number | 3 |
| Cutting Unit Size | 55.9 cm |
| Cutting Unit Size | 22 in. |
| Backlapping | Engagement/disengagement and rpm controlled through passcode-protected TechControl display |
| Clip Frequency | 0.54 mm/km/h |
| Clip Frequency | 0.034 in/mph |
| Front Rollers | 5.1 cm |
| Front Rollers | 2 in. |
| Reel Diameter | 12.7 cm |
| Reel Diameter | 5 in. |
| Bedknife Adjustment | Bedknife-to-reel |
| Height Of Cut - Minimum | 2 mm |
| Height Of Cut - Minimum | 0.079 in. |
| Height Of Cut - Maximum | 46 mm |
| Height Of Cut - Maximum | 1.81 in. |
| Number Of Blades | 7 |
| Mower Lift | Three independent hydraulic cylinders; Adjustable via TechControl display |
| Reel Speed | Maximum: 2200 rpm; Frequency of clip mode: Automatically controls reel speed based on pedal position input; Fixed speed mode: Fixed reel speed; Reel off mode: Does not allow PTO to engage for non-powered implements; Modes selectable via passcode-protected TechControl display |
Vehicle Specifications
| Wheels And Tires - Front/Rear | 20x10-10 (smooth, smooth balloon, or turf tread) |
| Brakes | Hand lever operated, two-wheel disc brakes |
| Mowing Speed | 9.7 km/h |
| Mowing Speed | 6 mph |
| Transport Speed | 17.7 km/h |
| Transport Speed | 11 mph |
| Reverse Speed | 6.4 km/h |
| Reverse Speed | 4 mph |
| Ground Clearance With Catcher | 11.4 cm |
| Ground Clearance With Catcher | 4.5 in. |
| Fuel Tank Capacity | 20 L |
| Fuel Tank Capacity | 5.3 U.S. gal. |
| Muffler | Horizontal discharge below frame |
| Hydrostatic Drive System Capacity | 22 L |
| Hydrostatic Drive System Capacity | 5.8 U.S. gal. |
| Hydraulic Reservoir Capacity (Only) | 16 L |
| Hydraulic Reservoir Capacity (Only) | 4.2 U.S. gal. |
| Ground Drive - Drive Wheels | Front two-wheel drive (2WD), Optional: GRIP all-wheel drive (AWD) |
| Ground Drive - Traction Drive | eHydro™ - electronically controlled hydraulic traction pump |
| Ground Drive, Reel Drive | Hydraulic |
| Pump | Three-section gear |
| Reel Control Valves | Proportional hydraulic mow valve, electronically controlled |
| Filtration | 8 micron |
Weights And Dimensions
| Wheelbase | 130 cm |
| Wheelbase | 51.2 in. |
| Tread Width | 157.2 cm |
| Tread Width | 61.9 in. |
| Cutting Width | 157.5 cm |
| Cutting Width | 62 in. |
| Turning Radius, Uncut Circle | 45.7 cm |
| Turning Radius, Uncut Circle | 18 in. |
| Weight (Full Fluids, No Operator Or Fuel) | 552 kg |
| Weight (Full Fluids, No Operator Or Fuel) | 1217 lb. |
| Height | 197 cm |
| Height | 77.5 in. |
Engine
| Type - Gas Model | Kohler® ECH630 EFI gas with electronic throttle body |
| Horsepower - Gas | 14.2 kW |
| Horsepower - Gas | 19 hp |
| Air Cleaner | Semi cyclone, dry type, dual stage, 1/4 turn |
| Cooling | Air |
| Cooling - Oil Filter | Full-flow filter |
| Cooling - Engine Oil | 1.9 L |
| Cooling - Engine Oil | 2 qt |
| Cooling - Pressurized Lubrication System | Standard |
| Cooling - Number Of Cylinders | 2 |
| Cooling - Displacement | 694 cc |
| Cooling - Displacement | 42.4 cu in. |
Electrical System
| Charging System | Flywheel, alternator |
| Alternator Capacity | 50 amp |
| Ignition | CDI |
| Battery Type | BCI group 51 maintenance-free: 12 V V |
| Starter | Electric (solenoid shift) V |
Operator Controls
| Steering | Hydraulic, gear pump with double-acting steering cylinder; No-tool adjustable column and tilt wheel |
| Reel Drive And Reel Lift | Right-hand joystick control for lift/lower; Yellow two-position switch for PTO; Three independent hydraulic cylinders; Lift rate, lower rate, and front-to-rear timing adjustable via passcode-protected TechControl display |
| Throttle | Electronically controlled, AutoPedal™ foot controls in transport; PTO rpm control through TechControl display; Three modes: Max, Eco, Min |
| Park Brake | Mechanical hand lever to left of seat |
| Hydrostatic Speed Control - Forward | Electronic, right foot operated, located to left of reverse pedal |
| Hydrostatic Speed Control - Reverse | Electronic, right foot operated, located to right of forward pedal |
| Ignition | Key start and shutoff |
Certification
| Number | ANSI B71.4-2017 |
| ROPS | Two-post SAE J21294 rollover protective structure with seat belts meets ISO 21299 standards |
| Engine | Meets Environmental Protection Agency (EPA) requirements |
Instrumentation
| Engine Oil Pressure | Warning icon and diagnostic trouble code on TechControl display |
| Alternator | Warning icon and diagnostic trouble code on TechControl display |
| Hydraulic Oil Temperature | Warning icon and diagnostic trouble code on TechControl display |
| Engine Coolant Temperature | Warning icon and diagnostic trouble code on TechControl display |
| Hourmeter | Digital on main TechControl operating screen |
Additional Information
| Date Collected | 09/30/2019 00:00:00 |
Electrical And Safety System
| Diagnostics | On-board diagnostics with TechControl display |
| Safety Interlocks | Operator presence switch (in seat), neutral, mow/transport switch, park brake set switch |
Sound Levels
| Operator Ear | 83 dBA |
| Measuring Standard | ISO 11201 |
