Features

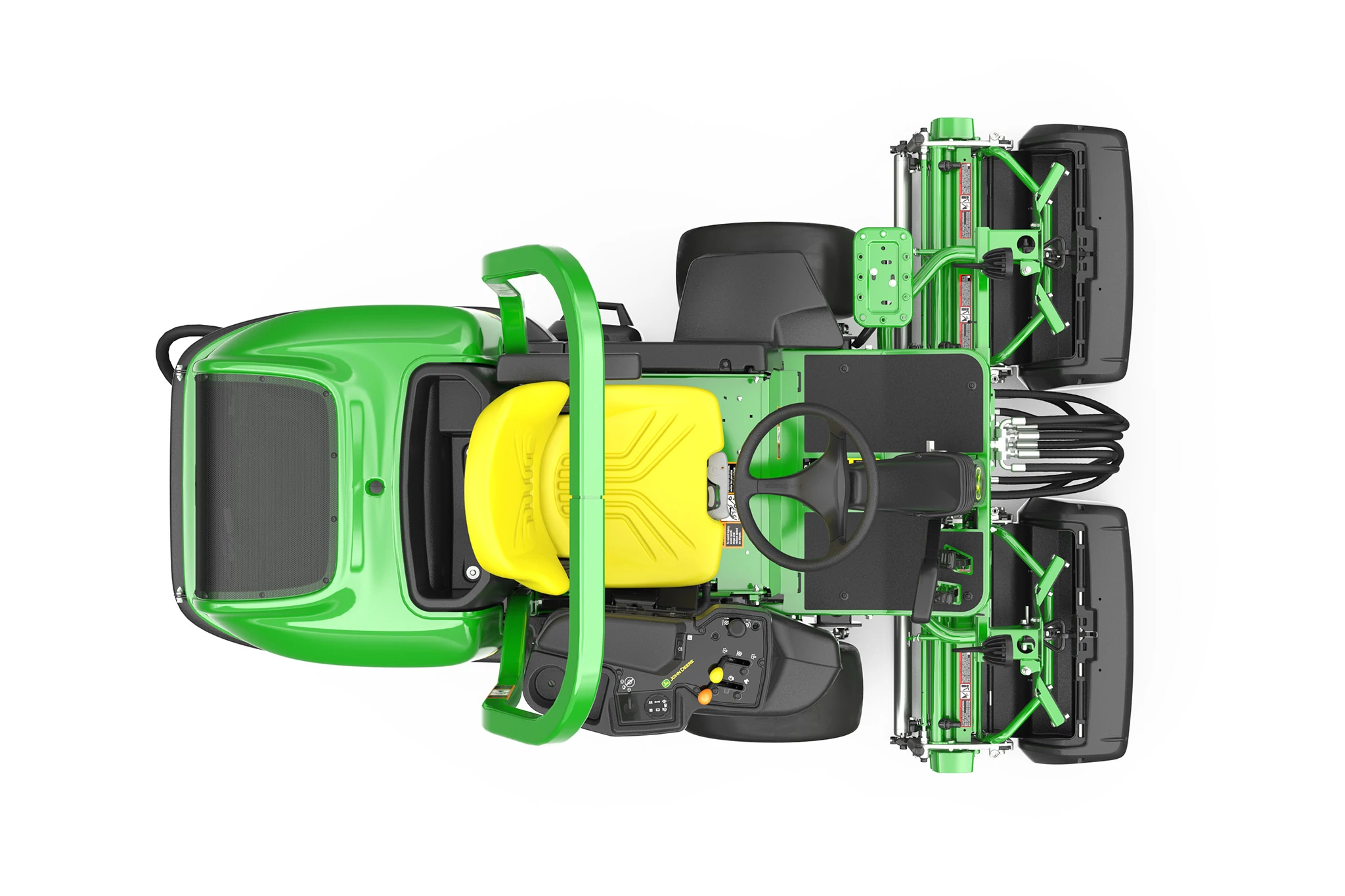

Offset Cutting Unit Design Eliminates Triplex Ring
The industry-exclusive offset design staggers wheel tracks by alternating the direction of mowing each day, minimizing compaction and eliminating triplex ring. The cutting units are offset to the left, which also enhances visibility of the center cutting unit.

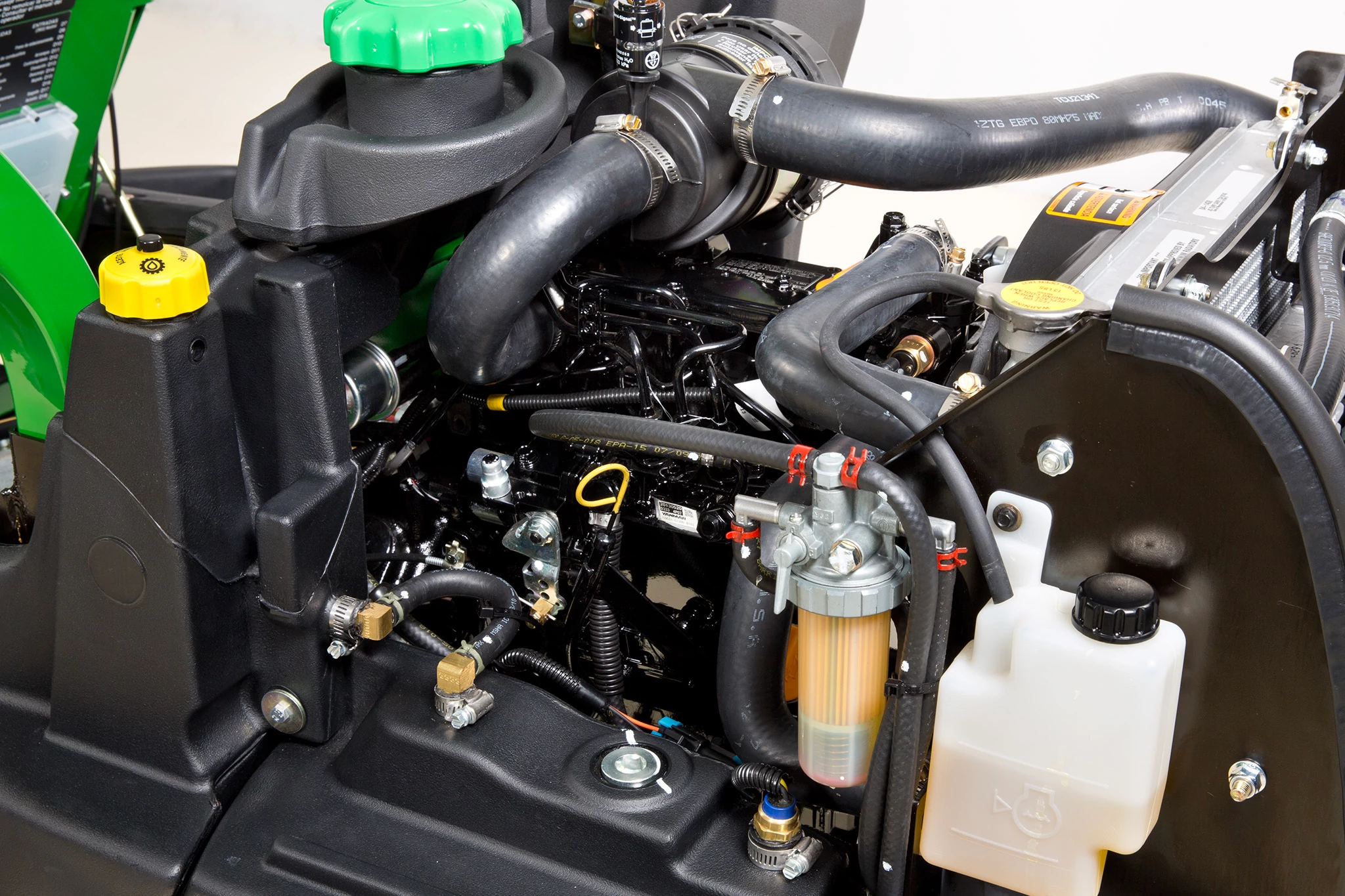

Quiet and Powerful Diesel Engine
Equipped with a 19.6-hp (14.6-kW), 3-cylinder liquid-cooled diesel engine, the 2550 PrecisionCut™ Triplex Mower delivers plenty of power for a full day of mowing and verticutting tasks, ensuring smooth and productive operation across a wide range of course conditions.

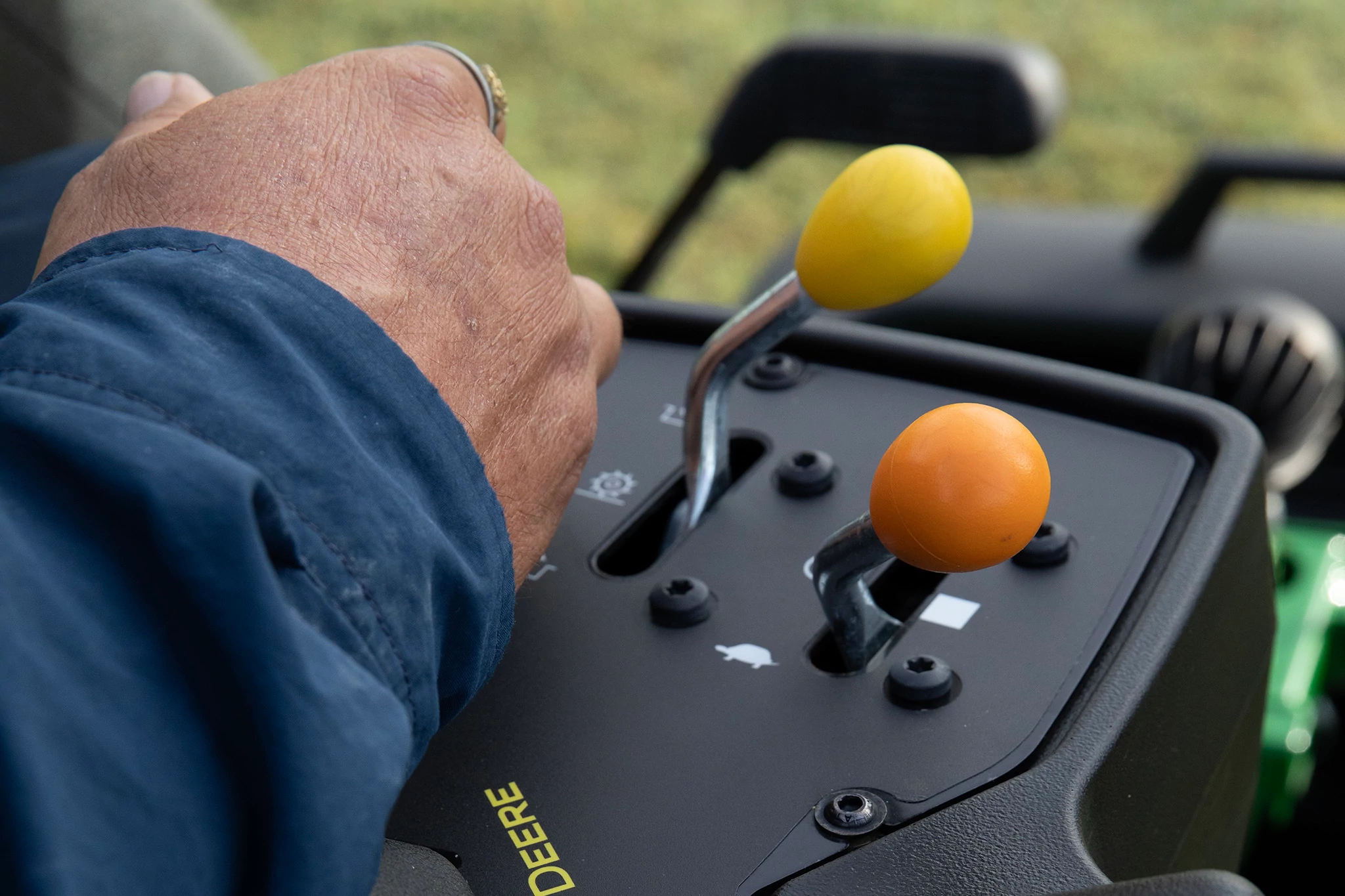

Command Arm Places Controls at the Operator’s Fingertips
All operating controls are placed to the right side of the operator in the Command Arm. Attached to the seat base, the Command Arms always moves with the seat, ensuring controls are at the operator’s fingertips regardless of the seat position. Controls on the Command Arm include the throttle lever, mow lever, and lift / lower lever.
Specifications
Engine
| Type | IDI Diesel |
| Engine Horsepower | 14.6 kW |
| Engine Horsepower | 19.6 hp |
| Air Cleaner | Semi-cyclone, dry-type, dual stage |
| Cooling | Liquid |
| Oil Filter | Full-flow filter |
| Engine Oil Capacity | 2.2 L |
| Engine Oil Capacity | 2.3 U.S. qt |
| Pressurized Lubrication System | Standard |
| Number Of Cylinders | 3 |
| Displacement | 993 cc |
| Displacement | 60.6 cu in. |
Weights And Dimensions
| Wheelbase | 129.5 cm |
| Wheelbase | 51 in. |
| Tread Width | 101.5 cm |
| Tread Width | 40 in. |
| Cutting Width | 157.5 cm |
| Cutting Width | 62 in. |
| Turning Radius Uncut Circle | 45.7 cm |
| Turning Radius Uncut Circle | 18 in. |
| Weight (Full Fluids, No Operator Or Fuel) | 637.3 kg |
| Weight (Full Fluids, No Operator Or Fuel) | 1405 lb. |
Vehicle Specifications
| Wheels And Tires - Front | 18x10.5-10, 2-ply, smooth (low compaction); 20x10-10, 2-ply or 4-ply, smooth; or 20x10-10, 2-ply, turf |
| Wheels And Tires - Rear | 18x10.5-10, 2-ply, smooth (low compaction); 20x10-10, 2-ply or 4-ply, smooth; or 20x10-10, 2-ply, turf |
| Brakes | Single-pedal, 2-wheel disc brakes |
| Brakes - Type | Dual |
| Brakes - Type | 15.2 cm |
| Brakes - Type | 6 in. |
| Mowing Speed | 7.1 km/h |
| Mowing Speed | 4.4 mph |
| Transport Speed | 12.9 km/h |
| Transport Speed | 8 mph |
| Reverse Speed | 4.8 km/h |
| Reverse Speed | 3 mph |
| Ground Clearance With Catcher | 10.2 cm |
| Ground Clearance With Catcher | 4 in. |
| Fuel Tank Capacity | 29.5 L |
| Fuel Tank Capacity | 7.8 U.S. gal. |
| Muffler | Horizontal discharge below frame |
| Hydrostatic Capacity (Total) | 28.8 L |
| Hydrostatic Capacity (Total) | 7.6 U.S. gal. |
| Hydrostatic Reservoir Capacity (Only) | 20.4 L |
| Hydrostatic Reservoir Capacity (Only) | 5.4 U.S. gal. |
| Ground Drive, Reel Drive | Drive wheels: front |
| Ground Drive, Reel Drive - Traction Drive | Hydrostatic, 2-pedal control |
| Ground Drive, Reel Drive - Reel Drive | Hydraulic |
| Reel Control | Electro-hydraulic, one valve reel on-off and one valve raise-lower |
| Filtration | 10-micron |
Mower
| Number | 3 - Offset design, Quick Adjust QA5 floating |
| Cutting Unit Size | 55.9 cm |
| Cutting Unit Size | 22 in. |
| Backlapping | Standard on-board micro-backlapping and reel speed control |
| Clip Frequency | For 14 blade: 0.54 mm/km/h (0.034 in./mph); With 11-blade reel: 0.69 mm/km/h (0.044 in./mph); With 7-blade reel: 1.08 mm/km/h (0.069 in./mph) |
| Front Rollers | 5.1 cm |
| Front Rollers | 2 in. |
| Reel Diameter | 12.7 cm |
| Reel Diameter | 5 in. |
| Bedknife Adjustment | Bedknife-to-reel |
| Height-Of-Cut | 2-19 mm (0.078-0.75 in.); With front roller: 51 mm (2 in.) or 16-32 mm (0.63-1.25 in.); With front roller: 76 mm (3 in.) |
| Number Of Blades | 7 or 11 |
| Mower Lift | (1) cylinder for front two units; (1) cylinder for rear unit |
Operator Controls
| Steering | Hydrostatic, adjustable steering column |
| Reel Lift | Right-hand operated (optional foot-lift controls) |
| Throttle | Right hand |
| Park Brake | Right foot |
| Glow Plug Switch And Indicator Light | Automatic, on instrument panel |
| Hydrostatic Speed - Forward | Right foot |
| Hydrostatic Speed - Reverse | Right foot |
| Ignition | Key start and shutoff |
Certification
| Number | ANSI B71.4-2004 |
| ROPS | 2-Post SAE J21294 Roll Over Protection Structure with seat belts meets ISO 21299 standards |
| Engine | EPA Tier 2, Interim Tier 4 |
Electrical System
| Charging System | Flywheel, alternator |
| Alternator Capacity | 20 amp |
| Battery Type | BCI group 40 maintenance-free: 12 V V |
| Starter | Electric (solenoid shift) |
Instrumentation
| Engine Oil Pressure | LED Warning Light |
| Alternator | LED Warning Light |
| Hydraulic Oil Temperature | LED Warning Light |
| Engine Coolant Temperature | LED Warning Light |
| Hourmeter | Digital |
Additional Information
| Date Collected | 10/31/2019 00:00:00 |
Sound Levels At Operator Ear
| Operator Ear - Full Engine RPM | 82 dBA |
