Features

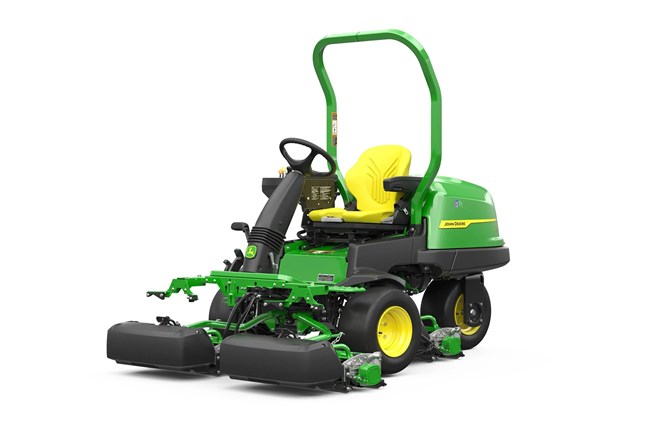

Offset Cutting Unit Design Eliminates Triplex Ring
The industry-exclusive offset design staggers wheel tracks by alternating the direction of mowing each day, minimizing compaction and eliminating triplex ring. The cutting units are offset to the left, which also enhances visibility of the center cutting unit.
48-Volt, 100-Amp Alternator Powers Brushless Electric Reel Motors
Providing excellent mowing and verticutting performance while completely eliminating any chances of hydraulic leaks from the reel circuit, a 48-V, 100-amp alternator powers a fully electric reel drive system. Belt driven from the engine, the alternator ensures no additional batteries are needed to power the reel drive circuit.
Command Arm Places Controls at the Operator’s Fingertips
All operating controls are placed to the right side of the operator in the Command Arm. Attached to the seat base, the Command Arms always moves with the seat, ensuring controls are at the operator’s fingertips regardless of the seat position. Controls on the Command Arm include the throttle lever, mow lever, and lift / lower lever.
Specifications
Engine
| Type | Liquid-cooled diesel |
| Engine Horsepower | 14.6 kW |
| Engine Horsepower | 19.6 hp |
| Air Cleaner | Semi-cyclone, dry-type, dual-stage |
| Cooling | Liquid |
| Oil Filter | Full-flow filter |
| Engine Oil Capacity | 2.2 L |
| Engine Oil Capacity | 2.3 U.S. qt |
| Pressurized Lubrication System | Standard |
| Number Of Cylinders | 3 |
| Displacement | 993 cc |
| Displacement | 60.6 cu in. |
Weights And Dimensions
| Wheelbase | 129.5 cm |
| Wheelbase | 51 in. |
| Tread Width | 101.5 cm |
| Tread Width | 40 in. |
| Cutting Width | 157.5 cm |
| Cutting Width | 62 in. |
| Turning Radius Uncut Circle | 45.7 cm |
| Turning Radius Uncut Circle | 18 in. |
| Weight (Full Fluids, No Operator Or Fuel) | 637.3 kg |
| Weight (Full Fluids, No Operator Or Fuel) | 1405 lb. |
Vehicle Specifications
| Wheels And Tires - Front | 18x10.5-10, 2-ply smooth; 20x10-10, 2-ply or 4-ply smooth; or 20x10-10, 2-ply turf tread |
| Wheels And Tires - Rear | 18x10.5-10, 2-ply smooth; 20x10-10, 2-ply or 4-ply smooth; or 20x10-10, 2-ply turf tread |
| Brakes | Single pedal, 2-wheel disc brakes |
| Brakes - Type | Dual |
| Brakes - Type | 15.2 cm |
| Brakes - Type | 6 in. |
| Mowing Speed | 7.1 km/h |
| Mowing Speed | 4.4 mph |
| Transport Speed | 12.9 km/h |
| Transport Speed | 8 mph |
| Reverse Speed | 4.8 km/h |
| Reverse Speed | 3 mph |
| Ground Clearance With Catcher | 10.2 cm |
| Ground Clearance With Catcher | 4 in. |
| Fuel Tank Capacity | 29.5 L |
| Fuel Tank Capacity | 7.8 U.S. gal. |
| Muffler | Horizontal discharge below frame |
| Hydrostatic Capacity (Total) | 28.8 L |
| Hydrostatic Capacity (Total) | 7.6 U.S. gal. |
| Hydrostatic Reservoir Capacity (Only) | 20.4 L |
| Hydrostatic Reservoir Capacity (Only) | 5.4 U.S. gal. |
| Ground Drive, Reel Drive - Traction Drive | Hydrostatic, 2-pedal control |
| Ground Drive, Reel Drive - Reel Drive | Electric |
| Ground Drive, Reel Drive - Reel Power Source | Alternator |
| Ground Drive, Reel Drive - Reel Power Source | 100 amp |
| Ground Drive, Reel Drive - Reel Power Source | 48 V |
| Reel Control | Voltage regulated |
| Hydraulic Filtration | 10 micron |
Mower
| Number | 3 - Offset design, Quick Adjust QA5 floating |
| Cutting Unit Size | 55.9 cm |
| Cutting Unit Size | 22 in. |
| Backlapping | Standard on machine, variable adjustment capability |
| Clip Frequency | For 14 blade: 0.53 mm/km/h (0.034 in./mph); With 11-blade reel: 0.67 mm/km/h (0.043 in./mph); With 7-blade reel: 1.06 mm/km/h (0.067 in./mph) |
| Front Rollers | 5.1 cm |
| Front Rollers | 2 in. |
| Reel Diameter | 12.7 cm |
| Reel Diameter | 5 in. |
| Bedknife Adjustment | Bedknife-to-reel |
| Height-Of-Cut | 2-36 mm (0.078-1.42 in.); With front roller: 51 mm (2 in.) or 4-46 mm (0.16-1.80 in.); With front roller: 76.2 mm (3 in.) |
| Number Of Blades | Choice of 7, 11, or 14 |
| Mower Lift | (1) Hydraulic cylinder for front two units, (1) hydraulic cylinder for center unit |
Sound Levels At Operator Ear
| Operator Ear - Full Engine RPM | 84 dBA |
| Reduced Engine RPM (2250) | 78 dBA |
Operator Controls
| Steering | Hydraulic, adjustable column |
| Reel Lift | Right hand (optional foot controls) |
| Throttle | Right hand |
| Park Brake | Right foot |
| Reel Drive | Right hand |
| Glow Plug Switch And Indicator Light | Automatic, on instrument panel |
| Hydrostatic Speed - Forward | Right foot |
| Hydrostatic Speed - Reverse | Right foot |
| Ignition | Key start and shutoff |
Certification
| Number | ANSI B71.4-2004 |
| ROPS | 2-Post SAE J21294 Roll Over Protection Structure with Seat Belts meets pending ISO 21299 standards |
| Engine | Engine meets EPA Tier 2, Interim Tier 4 |
Electrical System
| Charging System | Flywheel, alternator |
| Alternator Capacity | 20 amp |
| Battery Type | BCI group 40 maintenance-free - 12 V V |
| Starter | Electric (solenoid shift) |
Instrumentation
| Engine Oil Pressure | LED Warning light |
| Alternator | LED Warning Light |
| Hydraulic Oil Temperature | LED Warning Light |
| Engine Coolant Temperature | LED Warning Light |
| Hourmeter | Digital |
Additional Information
| Date Collected | 10/31/2019 00:00:00 |
Electrical And Safety System
| Diagnostics | On-board diagnostics with White Box Controller and (SOS) Sit on Seat Diagnostics |
| Safety Interlocks | Operator presence switch (in seat), backlap switch, mow/transport switch, park brake set switch |
