Features

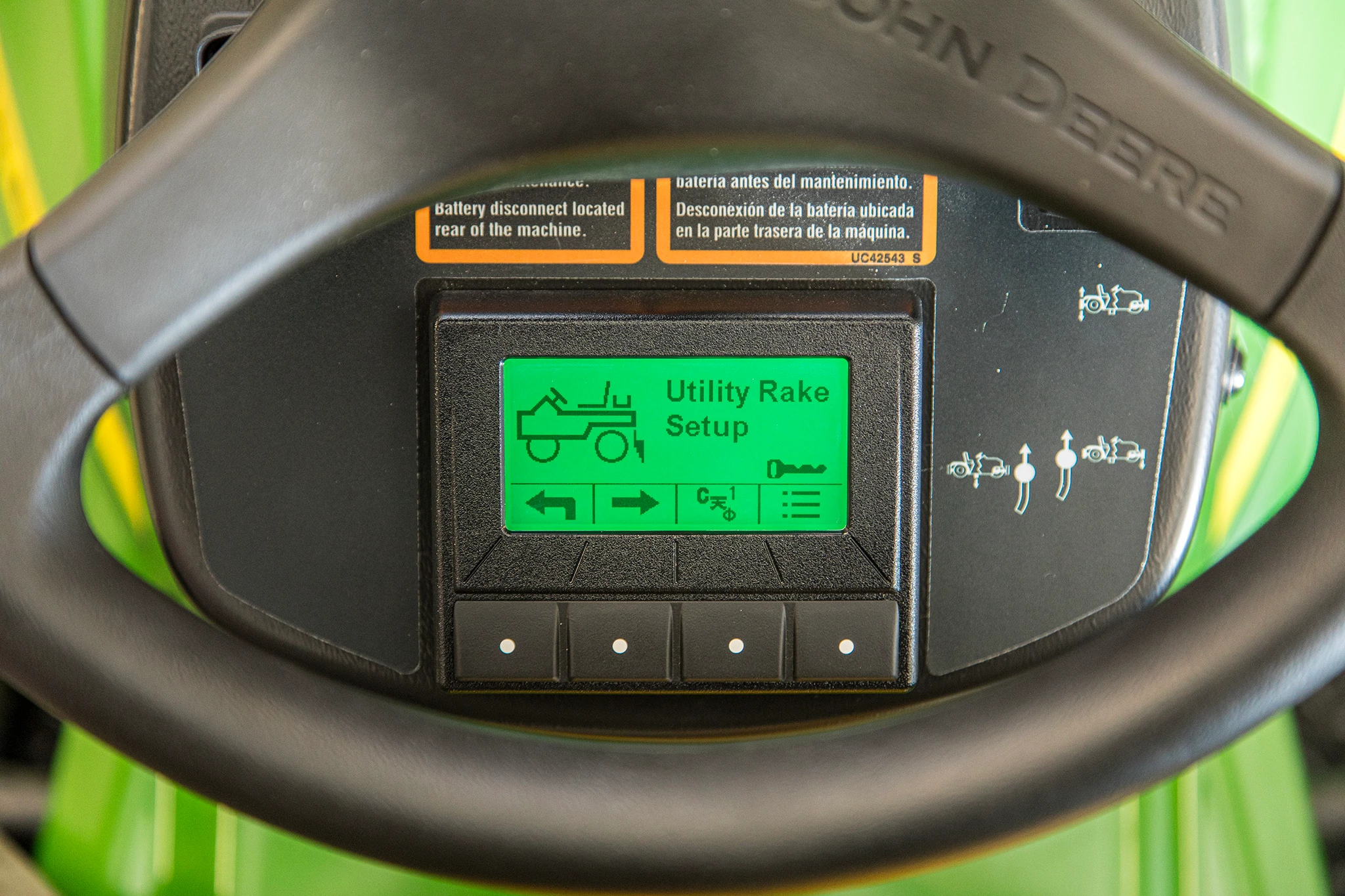

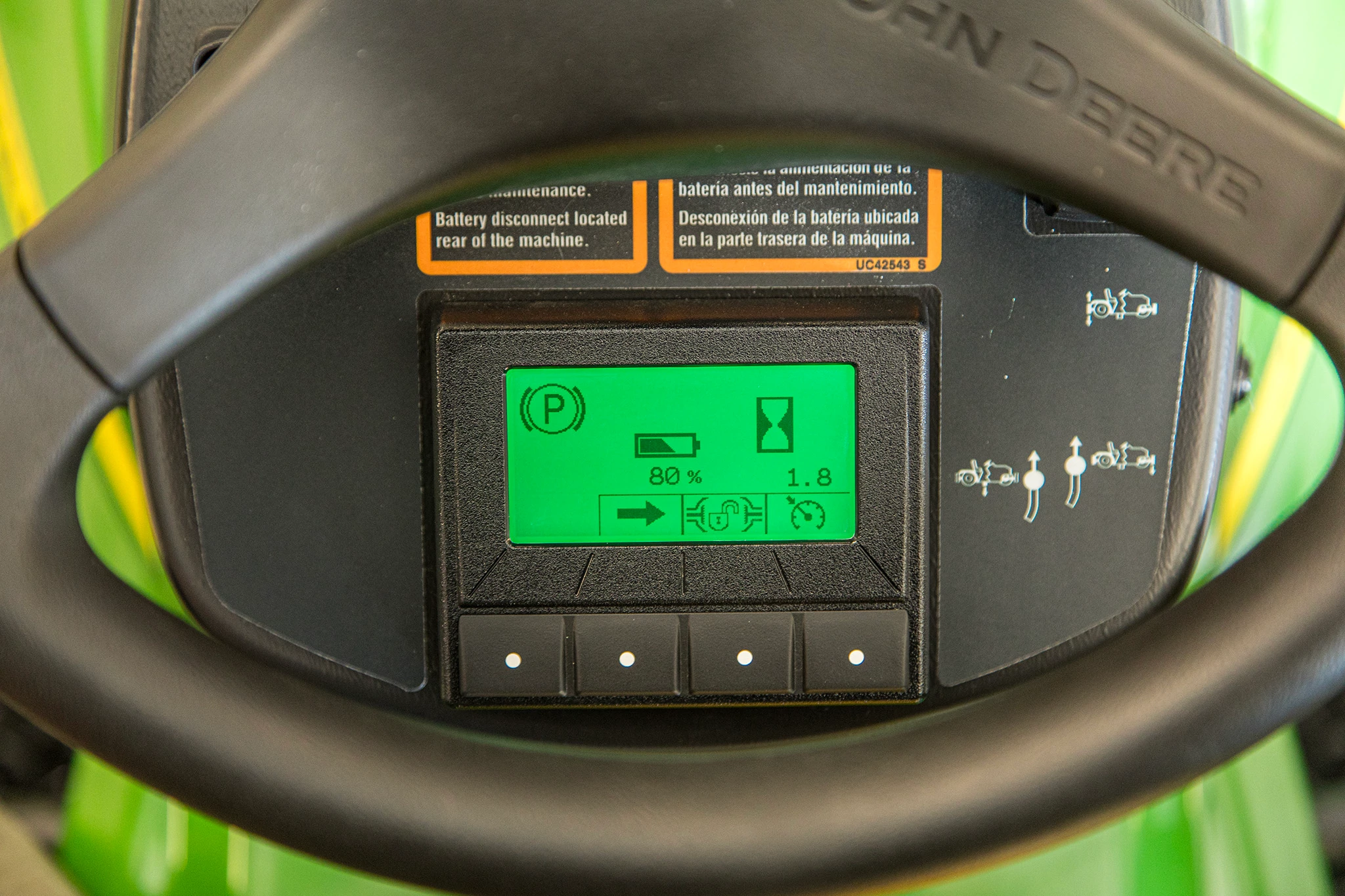

TechControl‑Driven Consistency
The TechControl display puts job quality and machine oversight in the hands of the supervisor. Passcode‑protected, adjustable settings maintain consistent results while unlocking multiple features
Enhanced Operator Station
Updated styling and a newly redesigned operator station provide better comfort and functionality.
Boosted Traction Capability
Electronic differential lock delivers added traction at the push of a button for moving heavy material.
Specifications
Attachments
| Rake | Rear mounted, powerlift control |
| Rake - Width | 1981 mm |
| Rake - Width | 78 in. |
| Rake - Weight | 20 kg |
| Rake - Weight | 44 lb. |
| Rake - Blades | Five-section, bunker (serrated) or field (smooth) |
| Cultivator | Optional, hand control w/ 5-position depth adjustment |
| Cultivator - Width | 1626 mm |
| Cultivator - Width | 64 in. |
| Cultivator - Weight | 20 kg |
| Cultivator - Weight | 44 lb. |
| Front Blade | Optional, hand control with lock-up position |
| Front Blade - Width | 1016 mm |
| Front Blade - Width | 40 in. |
| Front Blade - Height | 152 mm |
| Front Blade - Height | 6 in. |
| Front Blade - Weight | 21 kg |
| Front Blade - Weight | 46 lb. |
| 60-in. Aluminum Front Blade - Width | 1524 mm |
| 60-in. Aluminum Front Blade - Width | 60 in. |
| 60-in. Aluminum Front Blade - Height | 263 mm |
| 60-in. Aluminum Front Blade - Height | 10.25 in. |
| 60-in. Aluminum Front Blade - Weight | 3.7 kg |
| 60-in. Aluminum Front Blade - Weight | 8 lb. |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Wide Width | 1606 mm |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Wide Width | 63.25 in. |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Narrow Width | 1574.8 mm |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Narrow Width | 62 in. |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Tines | Optional, hand control w/ 5-position depth adjustment |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Width | 1649 mm |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Width | 64.5 in. |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Height | 144 mm |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Height | 5.625 in. |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Weight | 9.5 kg |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Weight | 21 lb. |
Travel Speed
| Travel Speed - Forward | 0-20.9 km/h |
| Travel Speed - Forward | 0-13 mph |
| Travel Speed - Reverse | 0-8 km/h |
| Travel Speed - Reverse | 0-5 mph |
Dimensions
| Width | 1537 mm |
| Width | 60.5 in. |
| Height | 1142 mm |
| Height | 45 in. |
| Length | 1680 mm |
| Length | 66.1 in. |
| Wheelbase | 1054 mm |
| Wheelbase | 41.5 in. |
| Ground Clearance At Rake Attachment | 244 mm |
| Ground Clearance At Rake Attachment | 9.6 in. |
| Weight (Approximate) | 810 lb. |
Additional Information
| Date Collected | 03/20/2026 13:05:00 |
Steering
| Type | 8.3:1 reduction ratio |
Tires
| Front | 22x10-10 2P high-floatation (turf or knobby) |
| Rear | 26x12-12 2P high-floatation (turf or knobby) |
Brakes
| Type | Mechanical disc, electrically released Regenerative braking during operation Electric park brake switch, parking brakes integrated into electric wheel motors |
Sound Levels
| Operator Ear | 66.8 dBA |
