Features
Enhanced Operator Station
Updated styling and a newly redesigned operator station provide better comfort and functionality.

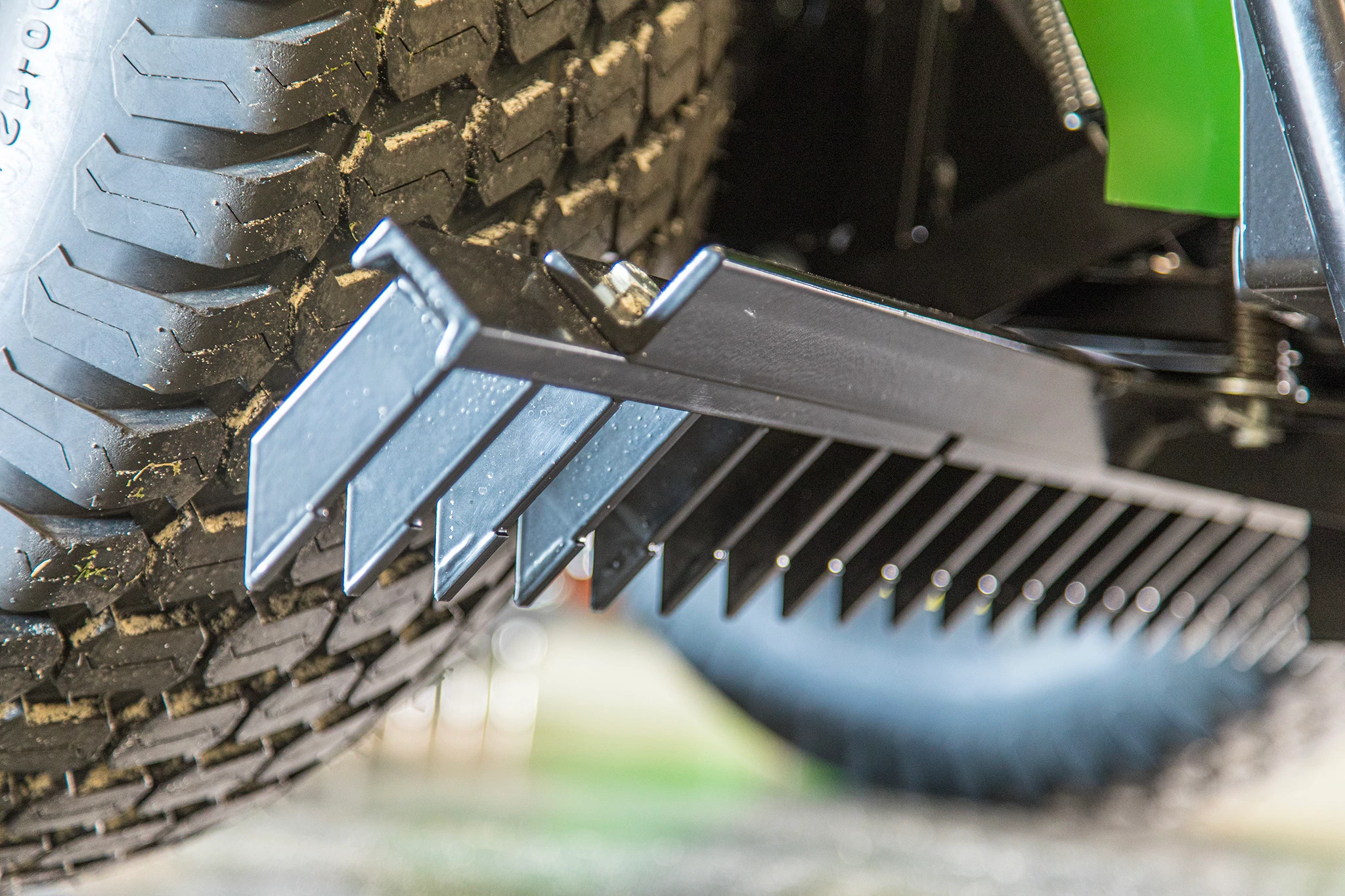

Extra Ground Clearance
Redesigned mid-mount provides additional ground clearance for entering and exiting bunkers.

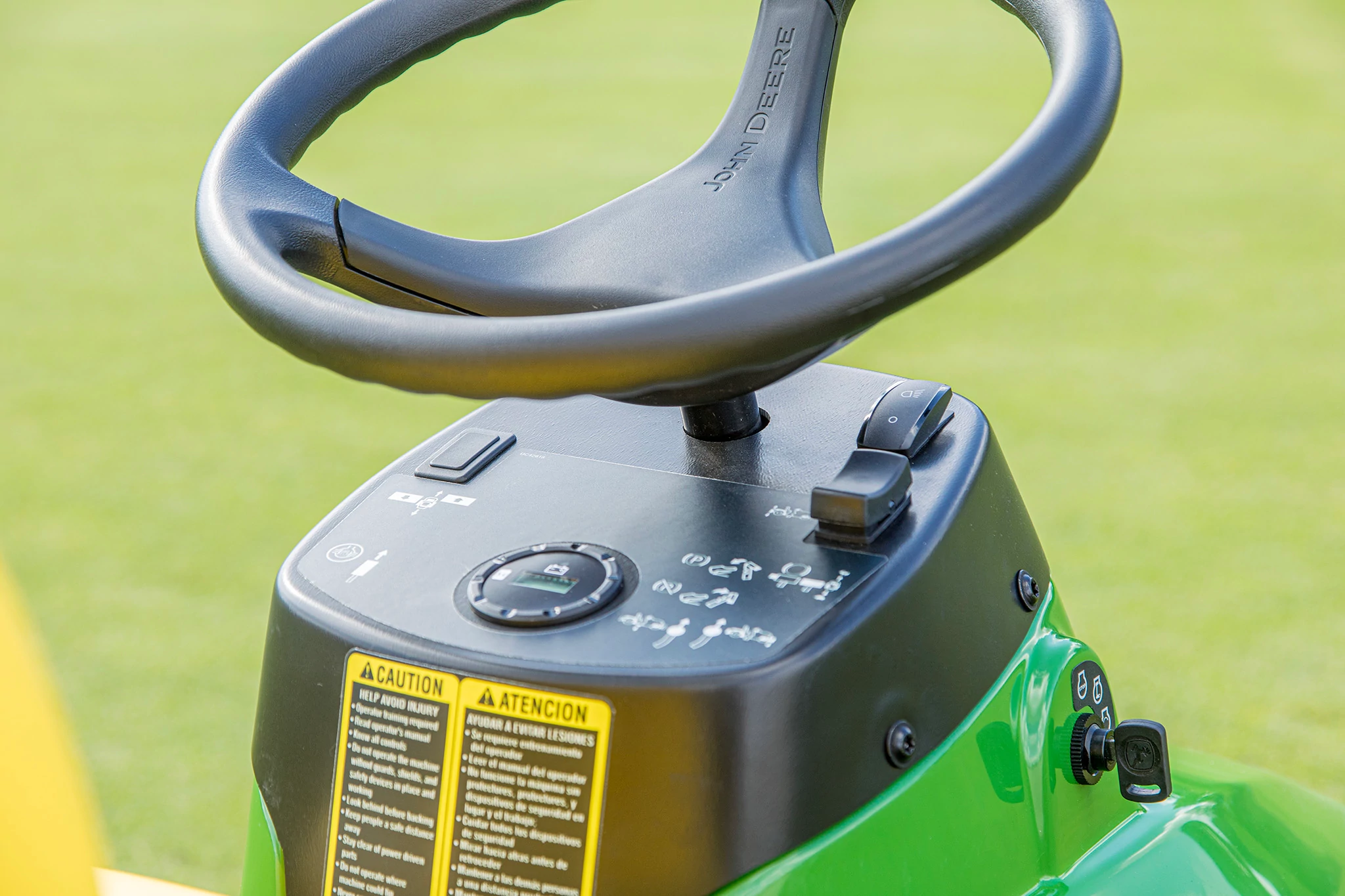

Controls and Gauges
All instrumentation and operator controls are located on the front dash for ease of use and premium visibility. These include hour meter, voltage indicator, ignition switch, optional front light switch, choke control, and implement lift and lower switch.
Specifications
Attachments
| Rake | Rear mounted, powerlift control |
| Rake - Width | 1981 mm |
| Rake - Width | 78 in. |
| Rake - Weight | 20 kg |
| Rake - Weight | 44 lb. |
| Rake - Blades | Five-section, bunker (serrated) or field (smooth) |
| Cultivator | Optional, hand control w/ 5-position depth adjustment |
| Cultivator - Width | 1626 mm |
| Cultivator - Width | 64 in. |
| Cultivator - Weight | 20 kg |
| Cultivator - Weight | 44 lb. |
| Front Blade | Optional, hand control with lock-up position |
| Front Blade - Width | 1016 mm |
| Front Blade - Width | 40 in. |
| Front Blade - Height | 152 mm |
| Front Blade - Height | 6 in. |
| Front Blade - Weight | 21 kg |
| Front Blade - Weight | 46 lb. |
| 60-in. Aluminum Front Blade - Width | 1524 mm |
| 60-in. Aluminum Front Blade - Width | 60 in. |
| 60-in. Aluminum Front Blade - Height | 263 mm |
| 60-in. Aluminum Front Blade - Height | 10.25 in. |
| 60-in. Aluminum Front Blade - Weight | 3.7 kg |
| 60-in. Aluminum Front Blade - Weight | 8 lb. |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Wide Width | 1606 mm |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Wide Width | 63.25 in. |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Narrow Width | 1574.8 mm |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Narrow Width | 62 in. |
| Wide- And Narrow-Interval Scarifier Tines Attachment - Tines | Optional, hand control w/ 5-position depth adjustment |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Width | 1649 mm |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Width | 64.5 in. |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Height | 144 mm |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Height | 5.625 in. |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Weight | 9.5 kg |
| Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Weight | 21 lb. |
| Rear-Mounted 60-in. Field Finisher - Width | 1538 mm |
| Rear-Mounted 60-in. Field Finisher - Width | 60 in. |
| Rear-Mounted 60-in. Field Finisher - Length | 355.6 mm |
| Rear-Mounted 60-in. Field Finisher - Length | 14 in. |
| Rear-Mounted 60-in. Field Finisher - Weight | 19.5 kg |
| Rear-Mounted 60-in. Field Finisher - Weight | 45 lb. |
Electrical System
| Type | 12 V |
| Type | 13 amp |
| Battery | 12 V |
| Battery | 38 amp-hr |
| Starter | Electric |
| Ignition | Transistor-type |
| Light Kit | LED work lights, two forward facing and one rearward |
Fuel System
| Tank Capacity | 14 L |
| Tank Capacity | 3.7 U.S. gal. |
| Fuel Pump | Diaphragm-type |
| Fuel Required | Regular leaded or unleaded gasoline |
Travel Speed
| Travel Speed - Forward | 0-20.3 km/h |
| Travel Speed - Forward | 0-12.6 mph |
Dimensions
| Width | 1435 mm |
| Width | 56.5 in. |
| Height | 1139 mm |
| Height | 44.8 in. |
| Length | 1680 mm |
| Length | 66.1 in. |
| Wheelbase | 1054 mm |
| Wheelbase | 41.5 in. |
| Ground Clearance At Rake Attachment | 243 mm |
| Ground Clearance At Rake Attachment | 9.5 in. |
| Turning Radius | 76.2 mm |
| Turning Radius | 3 in. |
| Weight (Approximate) | 379 kg |
| Weight (Approximate) | 835 lb. |
Engine
| Engine Type | 4-cycle, air cooled |
| Displacement | 401 cc |
| Displacement | 24.5 cu in. |
| Horsepower | 10.1 kW |
| Horsepower | 13.5 hp |
| Compression Ratio | 8.4:1 |
| Lubrication | Full-pressure |
| Oil Capacity | 1.3 L |
| Oil Capacity | 1.4 U.S. qt |
| Oil Filter | Standard |
| Spark Arrester Muffler | Standard |
| Idle Speed - Low Speed | 1175 (+/- 150) rpm |
| Idle Speed - Fast Speed | 3000 (+/- 100) rpm |
Transmission
| Transmission Type | Belt-driven torque converter with Kanzaki gear driven transaxle |
| Fluid Capacity | 2.3 L |
| Fluid Capacity | 2.5 U.S. qt |
Steering
| Type | 8.3:1 reduction ratio; Steering wheel: 14 in. (35.6 cm) |
Tires
| Front | 22x10-10 2P high-floatation (turf or knobby) |
| Rear | 26x12-12 2P high-floatation (turf or knobby) |
Brakes
| Type | Mechanically operated disc with parking brake |
