John Deere TD100
Double tap to zoom
TD100
Golf and Sports Equipment
Overview:

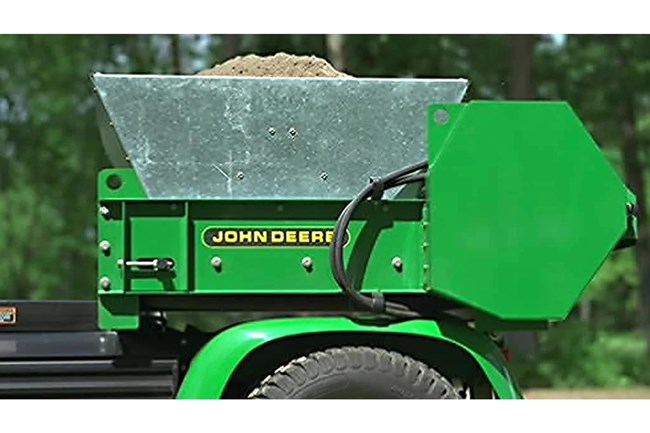

The TD100 Top Dresser for ProGators offers precise and efficient material spreading, enhancing turf health and appearance with ease of use and reliable performance tailored for models 2020A, 2020, 2030A, and 2030.
- Spread Width: 56 in. (142 cm)
- Hopper Capacity: up to 19 cu ft (0.54 m³)
- Belt and Brush Drive: Hydraulic Motor Powered by the ProGator
- Galvanized steel hopper resists corrosion
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Hydraulic Motor Drive
The TD100 Top Dresser features a hydraulic motor that powers the conveyor belt and rotating brush using the ProGator™ hydraulic system. This set-up ensures efficient operation and easy control from the driver's seat while distributing materials evenly.
Metering Gate Precision
The full-width metering gate provides infinitely variable control over material distribution. Adjustable from 0 to 3 in. (0 to 7.6 cm), it ensures precise spreading with a locking lever to maintain the desired setting securely.
Galvanized Steel Hopper
The hopper is constructed from galvanized steel to resist corrosion, ensuring long-lasting durability. Its capacity of 1500 lb (680.4 kg) and spreading width of 56 in. (142.2 cm) allow for efficient material handling and distribution.
Specifications
Brush
| Material | Polypropylene |
| Diameter | 9 in. |
| Diameter | 22.9 cm |
| Speed of rotation | 190 rpm |
Machine
| Drive | Hydraulic motor powered by ProGator hydraulic system based on engine rpm; #40 o-ring sealed roller chain; controlled by ProGator auxiliary hydraulic control operated from the driver's seat |
| Lift | Controlled by ProGator auxiliary hydraulic control operated from the driver's seat |
| Mounting to ProGator | Two pins at rear, one pin on lift cylinder |
Metering
| Type | Fixed-speed belt, adjustable metering gate |
| Metering gate adjustment | 7.62 cm |
| Metering gate adjustment | 3 in. |
| Controls | Two hand levers; one to adjust, one to lock |
Hopper
| Rated capacity - Maximum | 680 kg |
| Rated capacity - Maximum | 1500 lb. |
| Rated capacity - Leveled | 0.35 m³ |
| Rated capacity - Leveled | 12 cu ft |
| Rated capacity - Heaped | 0.54 m³ |
| Rated capacity - Heaped | 19 cu ft |
| Size - Top | 146x91 cm |
| Size - Top | 57.63x36 in. |
| Size - Bottom | 146x61 cm |
| Size - Bottom | 57.63x24 in. |
| Size - Depth | 40.6 cm |
| Size - Depth | 16 in. |
| Spread width | 142 cm |
| Spread width | 56 in. |
| Material | Galvanized steel |
Dimensions
| Height | 63.5 cm |
| Height | 25 in. |
| Overall width | 164 cm |
| Width | 64.5 in. |
| Length | 51.5 in. |
| Length | 131 cm |
| Overall height (mounted on vehicle) | 51 in. |
| Overall height (mounted on vehicle) | 129.5 cm |
Conveyor belt
| Material | Nylon/polyester cord, textured, rubber coating |
| Construction | Endless belt |
| Width | 142 cm |
| Width | 56 in. |
Weight
| Shipping weight | 810 lb. |
| Shipping weight | 367 kg |
| Net weight (empty) | 685 lb. |
| Net weight (empty) | 311 kg |
