John Deere TC125
Double tap to zoom
TC125
Golf and Sports Equipment
Overview:

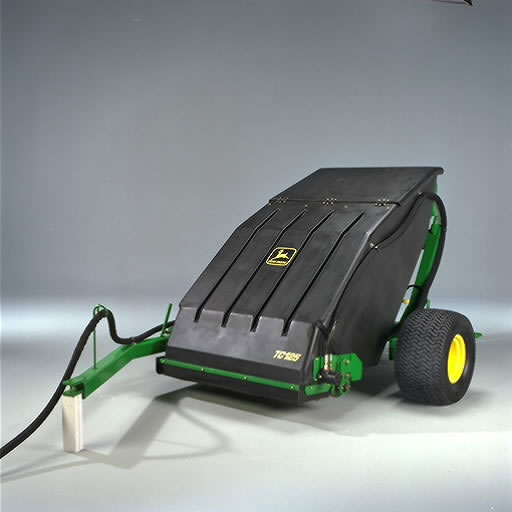

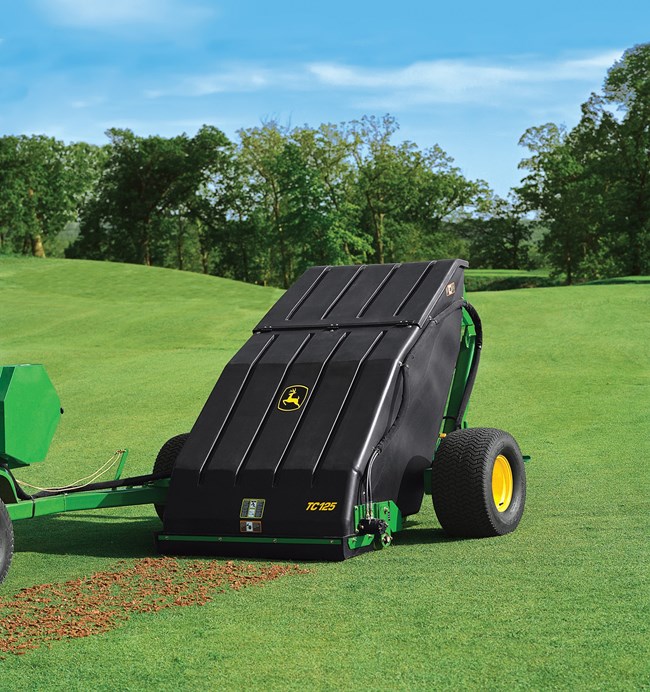

The TC125 Turf Collection System delivers fast cleanup, clearing an average green in about 15 minutes. A hydraulically driven brush and adjustable roller system ensure consistent pickup of cores, leaves, clippings, thatch, and other debris across varying turf conditions.
- Cleans Average Green in 15 Minutes
- Ideal for Collecting Cores, Leaves, Clippings, Thatch, and Other Types of Debris
- Hydraulically Driven Brush System
- Easy Maneuverability
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Adjustable Roller System
Roller height can easily be adjusted to meet specific turf conditions and brush wear to ensure optimal performance across varying terrain.
Convenient Debris Disposal
Dump height of 49 in. enables efficient debris disposal directly into cargo beds of utility vehicles.
Offset Towing

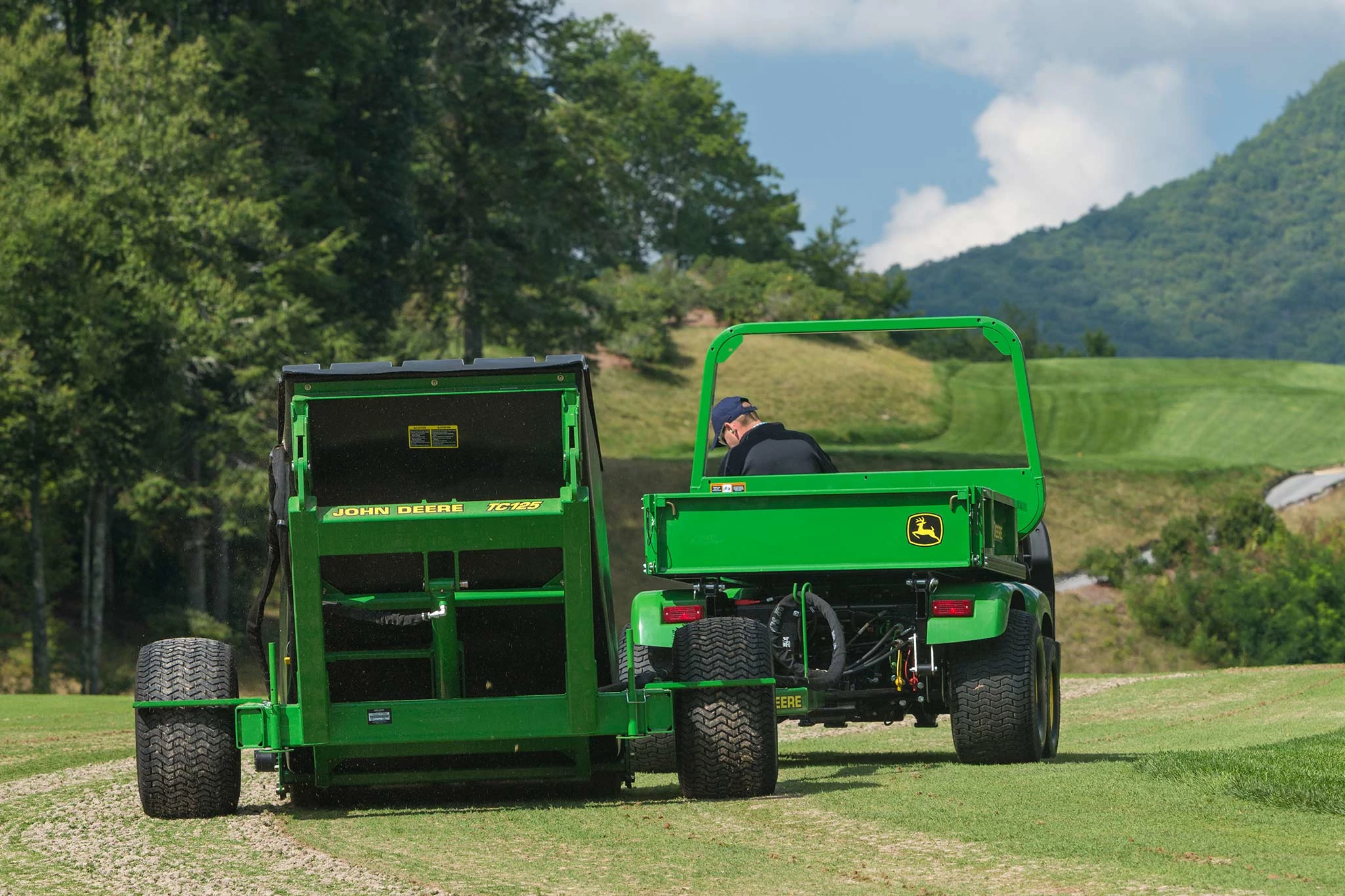

Offset towing allows the unit to be pulled directly behind or to the side of the vehicle, with the ability to switch positions from the operator’s seat.
Specifications
Machine
| Vehicle Requirements | Powered by either a compact utility tractor or HDUV with a selective control valve (SCV) Hydraulic requirements: 23 L/min (6 gpm) Minimum continuous: 13.8 MPa (2,000 psi) |
| Vehicle Requirements | 23 L/min |
| Vehicle Requirements | 6 gpm |
| Vehicle Requirements | 13.8 MPa |
| Gathering Width | 121.9 cm |
| Gathering Width | 48 in. |
| Hopper Capacity | 0.71 m³ |
| Hopper Capacity | 25 cu ft |
| Hitch | Attaches with standard hitch pin |
| Hitch | 19 mm |
| Hitch | 0.75 in. |
| Offset Towing Feature | Allows the unit to be towed directly behind or offset to the left side of the vehicle. Easily performed while operator remains seated. |
| Hydraulic Collection | 3 quick-disconnect couplers (2 rotary brush, 1 lift cylinder) |
| Lift | Hydraulic powered lift cylinder for dumping |

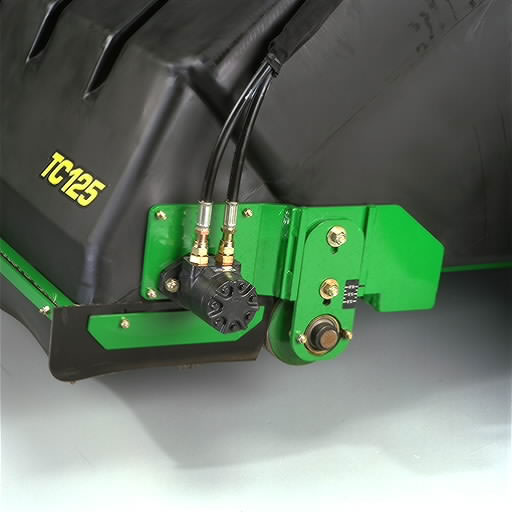

| Pick-Up System | Hydraulic powered rotary brush |
| Brush Speed - Minimum | 500 rpm |
| Brush Speed - Maximum | 600 rpm |
| Rollers | Brush aggressiveness and flotation is controlled by a 6-in (15.24 cm) diameter full width roller directly behind the rotary brush. The roller height can be adjusted to accommodate the turf conditions and degree of brush wear. |
| Productivity | Clears an average green in 15 minutes |
| Tires | 26.5x14-12 |
| Dimensions - Height - Lowered | 162.5 cm |
| Dimensions - Height - Lowered | 64 in. |
| Dimensions - Height - Raised | 368 cm |
| Dimensions - Height - Raised | 145 in. |
| Dimensions - Length | 350.5 cm |
| Dimensions - Length | 138 in. |
| Dimensions - Width | 238.7 cm |
| Dimensions - Width | 94 in. |
| Dimensions - Weight | 554.5 kg |
| Dimensions - Weight | 1220 lb. |
| Dump Height Clearance | 120 cm |
| Dump Height Clearance | 49 in. |
