Features

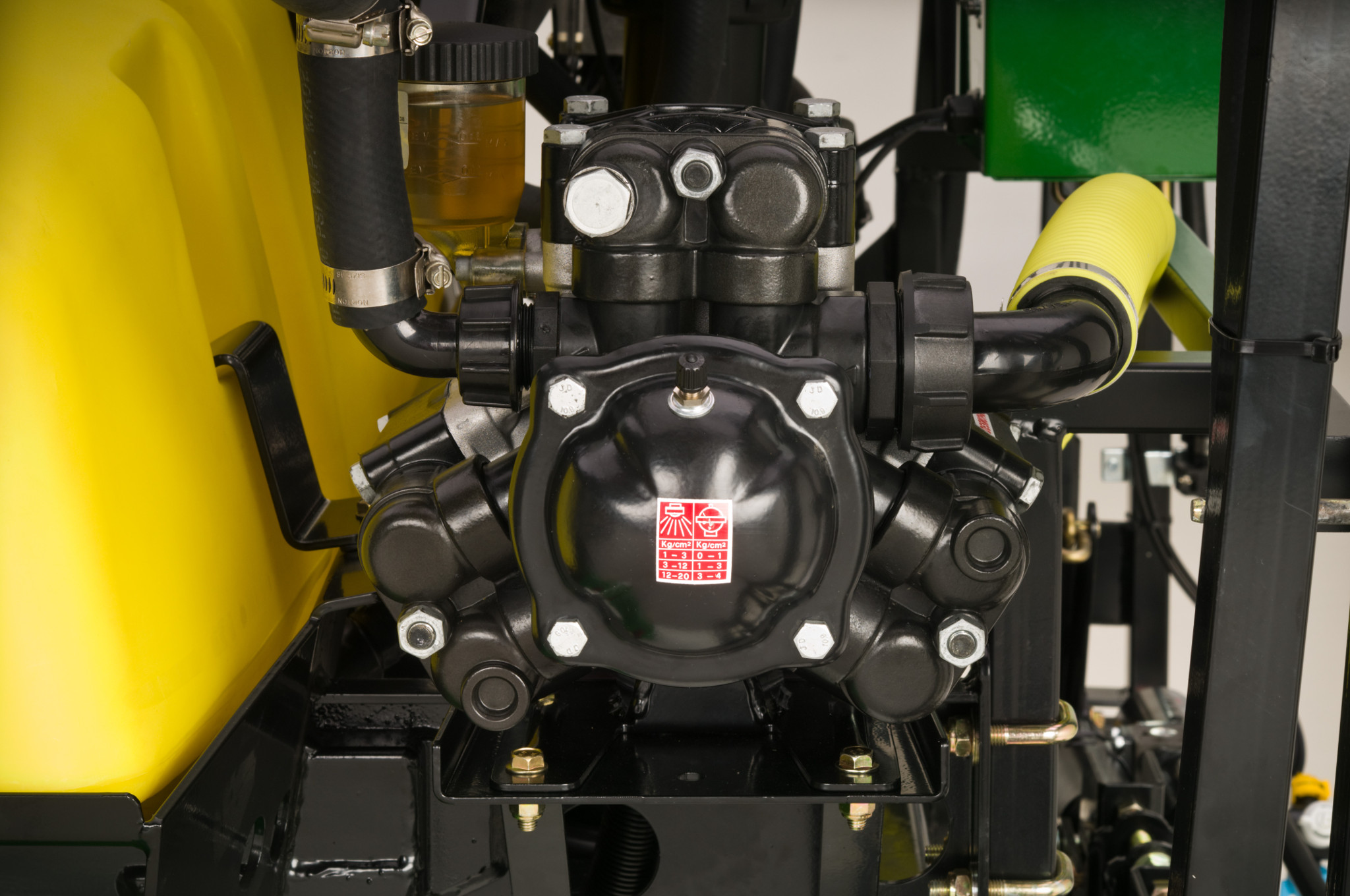

Industry-Exclusive Diaphragm or Centrifugal Pump Options

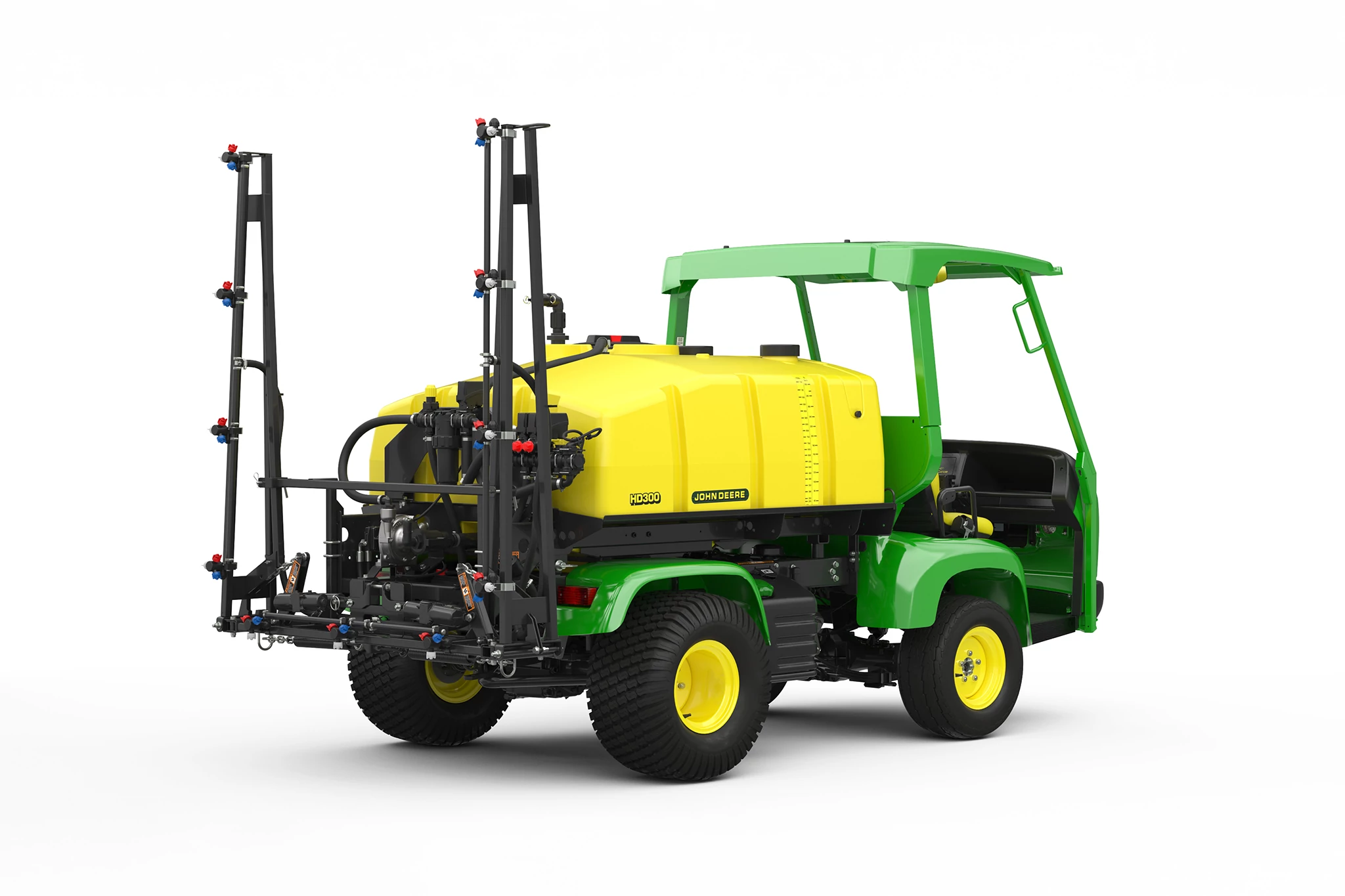

The John Deere SelectSpray™ Series are the only sprayers in the golf industry to offer the choice of centrifugal or diaphragm pump to meet specific applications or operator preference.

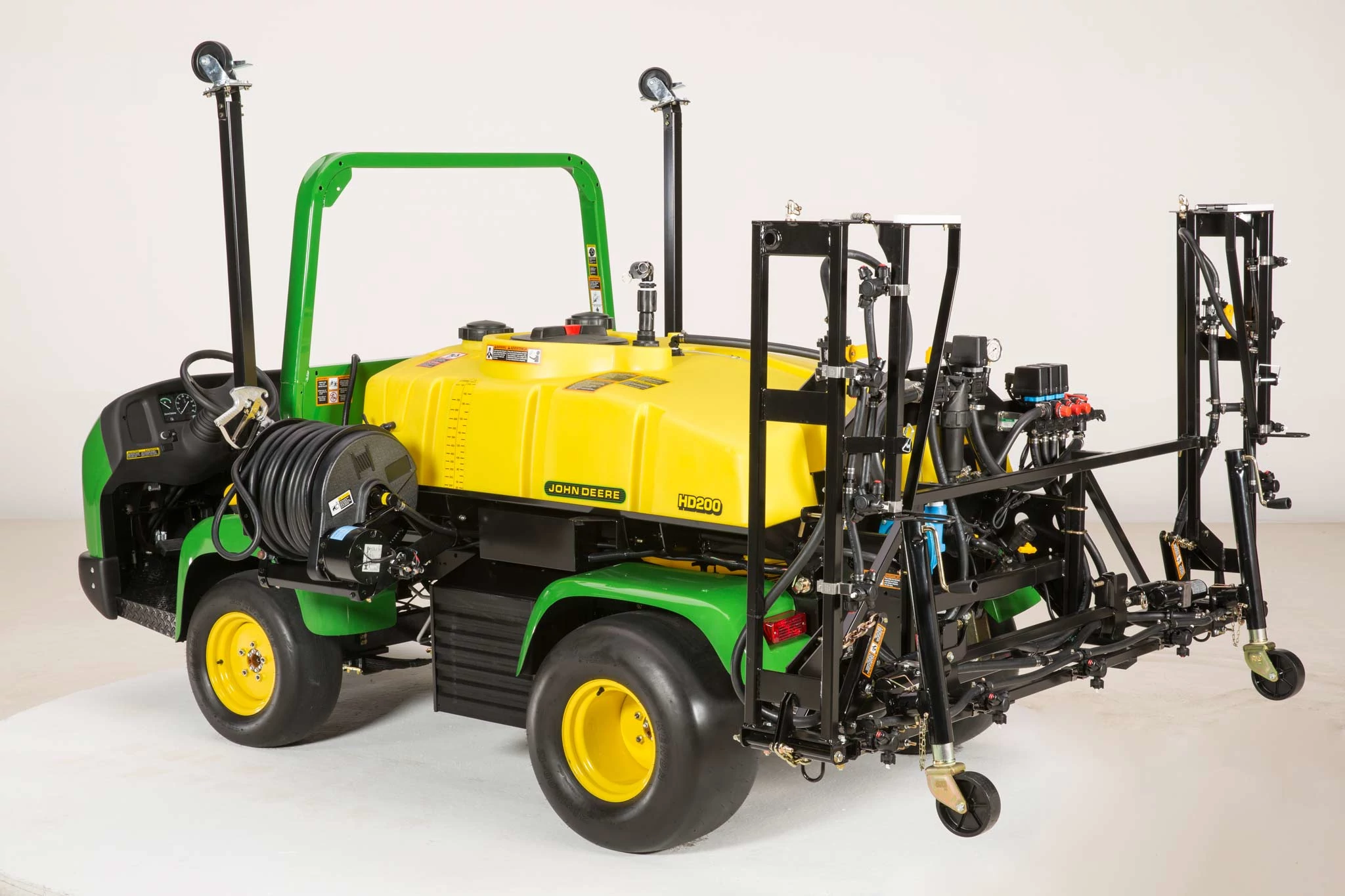

Optional Storage Stands
The SelectSpray™ Series transforms sprayers into versatile tools thanks to optional caster-wheel storage stands. Operators can remove or install the sprayer in minutes without tools, easily switching between spraying and hauling cargo.
Easy Versatility
Quickly switch between spraying and other tasks with the easy, tool-free attach/detach system.
Specifications
Foam Marker
| Type | Electric |
| Pump | Individual air and liquid pumps, solution mixes at foamer head |
| Rate | Adjustable with no tools by turning rotary knob on foamer box |
Dimensions (18-ft Boom)
| Boom Height (Wings Raised) | 228 cm |
| Boom Height (Wings Raised) | 90 in. |
| 18-ft Boom Width (Wings Raised) | 180 cm |
| 18-ft Boom Width (Wings Raised) | 71 in. |
| Boom Width (Wings Lowered) | 514 cm |
| Boom Width (Wings Lowered) | 203 in. |
Booms
| Construction | Heavy-duty square tubing: 14 gauge |
| Construction | 1.897 mm |
| Construction | 0.747 in. |
| Number Of Sections | 3 |
| Breakaway | Bidirectional |
| Boom Height | Adjustable |
| Lift Systems | Electro-hydraulic standard |
| Width | 5.5, 4.6/6.4 m |
| Width | 18, 15/21 ft |
| Nozzle Configuration | Triple-nozzle bodies |
| Nozzle Configuration | 50.8 cm |
| Nozzle Configuration | 20 in. |
Machine
| Frame | Welded steel |
| Spray Tank Rated Capacity (Gross) | 1136 L |
| Spray Tank Rated Capacity (Gross) | 300 gal. |
| Agitation | Jet agitation adjusted by proportional control valve; Orifice: 7.9 mm (0.313 in.) |
| Pressure/Flow Regulator | Electric |
| Filter | 100-mesh, self-cleaning |
| Boom Shutoff Valves | Electric |
| Throttling Valves | Standard; adjustable |
Diaphragm Pump
| Number Of Diaphragms | 3 |
| Lubrication | Oil |
| Diaphragm Pump - Max Flow | 113.9 L/min |
| Diaphragm Pump - Max Flow | 30.1 gpm |
| Max Pressure | 20 bar |
| Max Pressure | 290 psi |
| Relief Pressure | 13.8 bar |
| Relief Pressure | 200 psi |
Automatic Rate Controller
| Type | Weather-resistant control box with electronic control switches and digital pressure display; removable without tools for storage |
| Switches On Control Box | Individual boom on/off, boom master, foam marker, boom lift/lower, pressure increase/decrease, auto/manual |
| Pressure Sensor | 363 psi |
| Pressure Sensor | 25 bar |
| Gauges | Digital speed, digital pressure, digital tank sight gauge, and digital flow rate on rate controller screen |
| Rate Control | Constant pressure or constant flow |
Dimensions (15-ft/21-ft boom)
| Boom Height (Wings Raised And Extensions Folded) | 178 cm |
| Boom Height (Wings Raised And Extensions Folded) | 70 in. |
| Boom Width (Wings Raised And Extensions Folded) | 252 cm |
| Boom Width (Wings Raised And Extensions Folded) | 99 in. |
| 15 ft/21 ft - Boom Width (Wings Raised) | 252 cm |
| 15 ft/21 ft - Boom Width (Wings Raised) | 99 in. |
| Boom Width (Wings Lowered And Extensions Folded) | 478 cm |
| Boom Width (Wings Lowered And Extensions Folded) | 188 in. |
| Boom Width (Wings Lowered And Extensions Extended) | 615 cm |
| Boom Width (Wings Lowered And Extensions Extended) | 242 in. |
Mounting
| Removal | Three pins, three electrical connectors, two hydraulic lines for easy removal with no tools |
| Storage | Optional storage stands |
