Features

Instrumentation and Controls

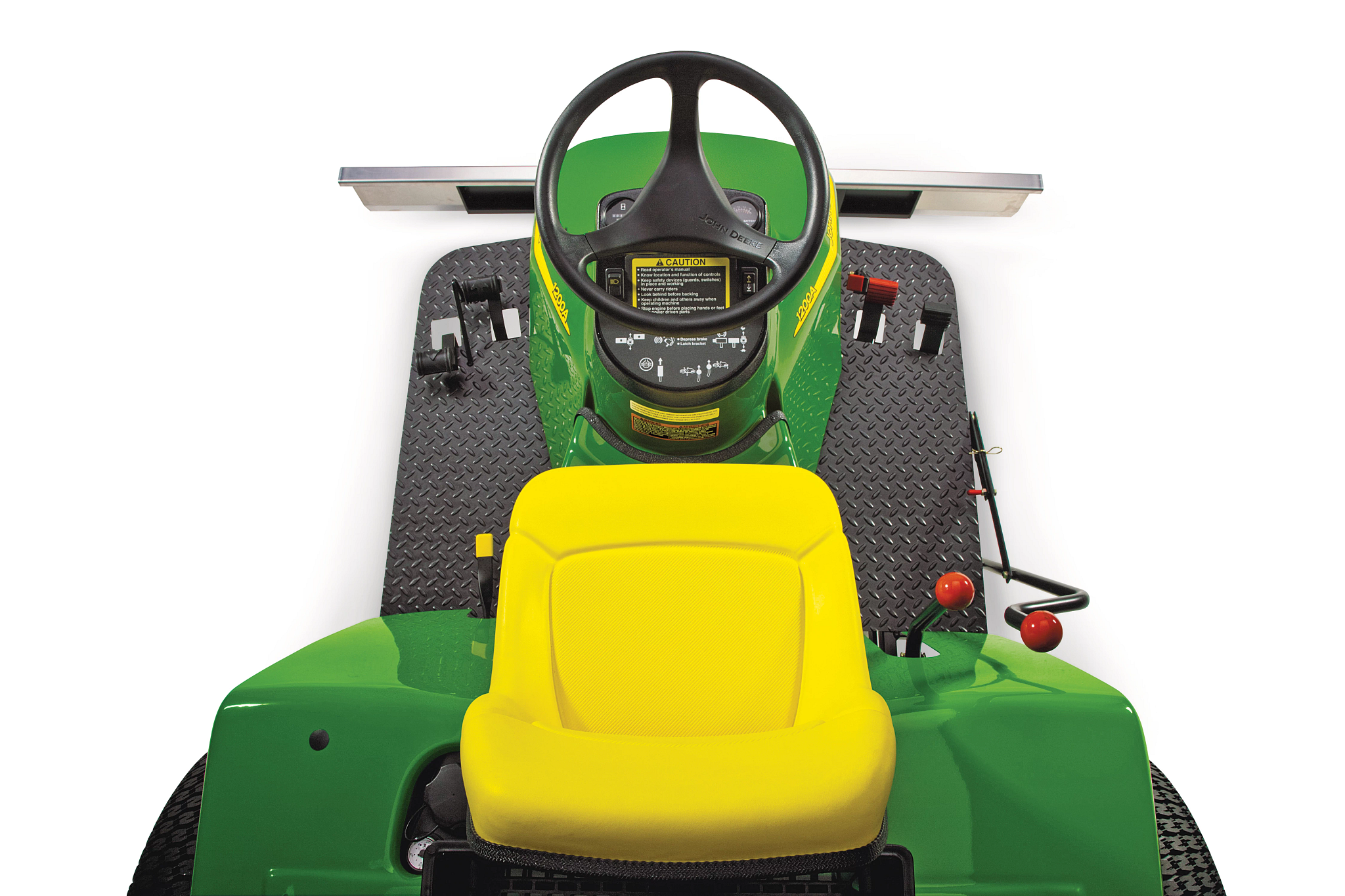

Top‑down view of a compact utility vehicle operator area showing the steering wheel, dashboard controls, foot pedals, textured floor mat, and a bright yellow seat.

All instrumentation and operator controls are located on the front dash for ease of use and premium visibility. These include hour meter, voltage indicator, ignition switch, optional front light switch, choke control, and implement lift and lower switch.

High Flotation Tires

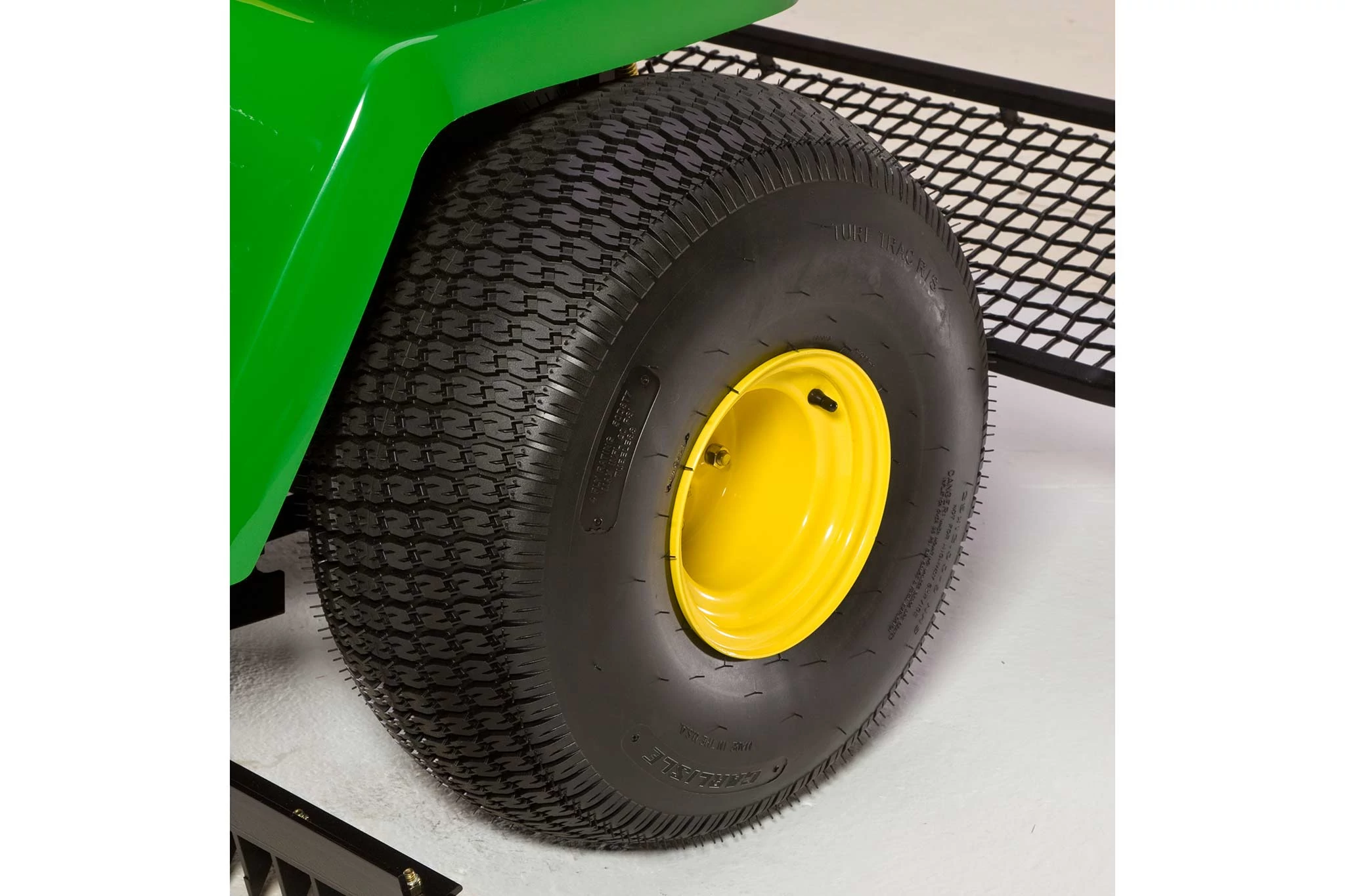

Angled studio view of a bunker and field rake's rear high flotation tire

To mitigate ground compaction, high flotation tires are inflated to low pressure and come in two treads—knobby for bunkers and turf for reduced marking. These tire options offer stable performance across various applications, including golf and baseball fields.

Drive System

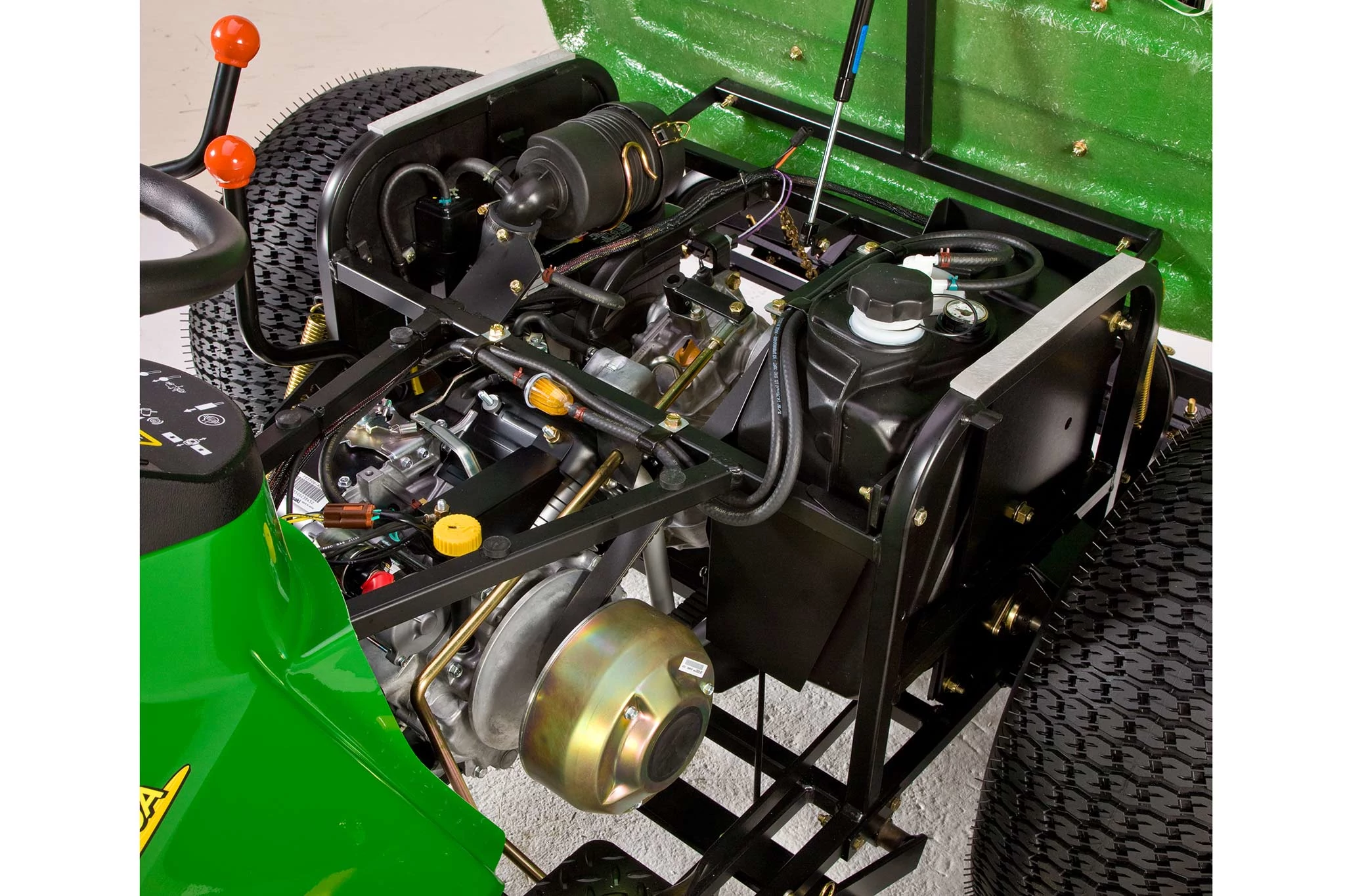

Front left studio view of a bunker and field rake's uncovered drive system

The torque converter and transaxle design enables a tight turning radius, enhancing maneuverability. This drive system provides excellent pulling and pushing power, with quick transport speeds of up to 12.6 mph.

Specifications

Attachments

RakeRear mount, powerlift control
Rake - Width1981 mm
Rake - Width78 in.
Rake - Weight20 kg
Rake - Weight44 lb.
Rake - BladesFive-section, bunker or field
Rake - Prong RakeThree section, 24 prongs, adjustment: 25-76 mm (1-3 in.)
Cultivator10 blades, hand control with 5-position depth adjustment
Cultivator - Width1626 mm
Cultivator - Width64 in.
Cultivator - Weight20 kg
Cultivator - Weight44 lb.
Front BladeOptional, hand control with lock-up position
Front Blade - Width1016 mm
Front Blade - Width40 in.
Front Blade - Height152 mm
Front Blade - Height6 in.
Front Blade - Weight21 kg
Front Blade - Weight46 lb.
60-in. Aluminum Front Blade - Width1524 mm
60-in. Aluminum Front Blade - Width60 in.
60-in. Aluminum Front Blade - Height263 mm
60-in. Aluminum Front Blade - Height10.25 in.
60-in. Aluminum Front Blade - Weight3.7 kg
60-in. Aluminum Front Blade - Weight8 lb.
Articulating Front-Mount Core-Removal BladeOptional, hand control with lock-up position
Articulating Front-Mount Core-Removal Blade - Width1231 mm
Articulating Front-Mount Core-Removal Blade - Width48 in.
Articulating Front-Mount Core-Removal Blade - Height237 mm
Articulating Front-Mount Core-Removal Blade - Height9.25 in.
Articulating Front-Mount Core-Removal Blade - Weight10.9 kg
Articulating Front-Mount Core-Removal Blade - Weight24 lb.
Wide- And Narrow-Interval Scarifier Tines Attachment - Wide Width1606 mm
Wide- And Narrow-Interval Scarifier Tines Attachment - Wide Width63.25 in.
Wide- And Narrow-Interval Scarifier Tines Attachment - Narrow Width1574.8 mm
Wide- And Narrow-Interval Scarifier Tines Attachment - Narrow Width62 in.
Wide- And Narrow-Interval Scarifier Tines Attachment - TinesWide - 20 tines, length: 89 mm (3.5 in.); Narrow - 35 tines, length: 89 mm (3.5 in.)
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Width1649 mm
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Width64.5 in.
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Height144 mm
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Height5.625 in.
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Weight9.5 kg
Mid-Mount 64.5-in. (164.9 mm) Scraper Blade Attachment - Weight21 lb.
Rear-Mounted 60-in. Field Finisher - Width1538 mm
Rear-Mounted 60-in. Field Finisher - Width60 in.
Rear-Mounted 60-in. Field Finisher - Length355.6 mm
Rear-Mounted 60-in. Field Finisher - Length14 in.
Rear-Mounted 60-in. Field Finisher - Weight19.5 kg
Rear-Mounted 60-in. Field Finisher - Weight45 lb.
Hydraulic Pump Package - CouplersTwo female, comply with ANSI ASAE S418 standard
Hydraulic Pump Package - ActivationSwitch
Hydraulic Pump Package - Weight5.2 kg
Hydraulic Pump Package - Weight11.5 lb.

Electrical System

Type12 V
Type13 amp
Battery12 V
Battery38 amp-hr
StarterElectric
IgnitionTransistor-type
Light KitAvailable

Dimensions

Width1473 mm
Width58 in.
Height1041 mm
Height41 in.
Length1676 mm
Length66 in.
Wheelbase1054 mm
Wheelbase41.5 in.
Ground Clearance At Rake Attachment241 mm
Ground Clearance At Rake Attachment9.5 in.
Turning Radius305 mm
Turning Radius12 in.
Weight (Approximate)263 kg
Weight (Approximate)580 lb.
Rear-Hitch Towing Capacity227 kg
Rear-Hitch Towing Capacity500 lb.

Transmission

Transmission TypeBelt-driven torque converter with Kanzaki gear driven transaxle
Fluid Capacity2.3 L
Fluid Capacity2.5 U.S. qt

Engine

Engine Type4-cycle, air cooled
Displacement401 cc
Displacement24.5 cu in.
Horsepower10.1 kW
Horsepower13.5 hp
Compression Ratio8:4:1
Oil Capacity1.3 L
Oil Capacity1.4 U.S. qt
Oil FilterStandard
Spark Arrester MufflerStandard
Idle Speed - Low Speed1175 (+/- 75) rpm
Idle Speed - Fast Speed3100 (+/- 75) rpm

Steering

Type8:3:1 reduction ratio; Steering wheel: 35.6 cm (14 in.)

Tires

FrontOne 22.5x10-8, 2 PR high-flotation
RearTwo 25x12-9, 2 PR high-flotation

Fuel System

Tank Capacity13.6 L
Tank Capacity3.6 U.S. gal.
Fuel PumpDiaphragm-type
Fuel RequiredRegular leaded or unleaded gasoline

Travel Speed

Travel Speed - Forward0-20.3 km/h
Travel Speed - Forward0-12.6 mph

Brakes

TypeMechanically operated disc with parking brake
