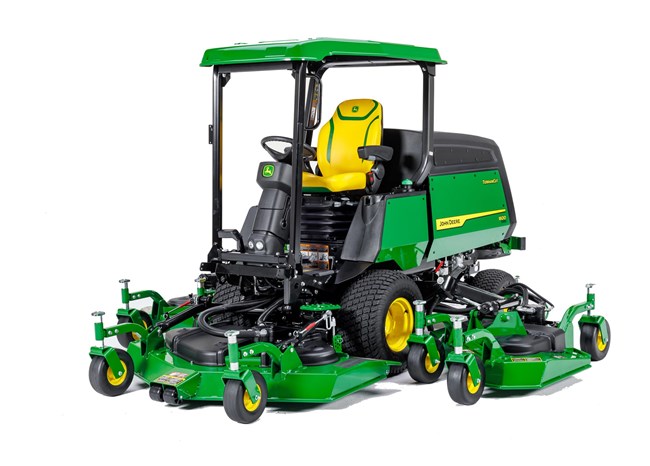

John Deere 1600 Turbo TerrainCut™ (Four-Post ROPS Canopy)

New Products / John Deere / John Deere Products / Mowers / Front and Wide-Area Mowers / 1600 Turbo TerrainCut™ (Four-Post ROPS Canopy)

Double tap to zoom



Features

Wide Cut, Easy Transport

Top close-up of 1600 Turbo TerrainCut mower's deck and patented impact-absorbing system

The 1600 Turbo TerrainCut™ WAM delivers up to 128 in. (325.1 cm) of cutting width with foldable wing decks that reduce transport width to 84 in. (213.4 cm).  Mow over 75 acres in an 8-hour day.  Also features a patented impact-absorbing system and baffling for even clipping dispersal and superior cut quality.

Exclusive Air-Intake System for Consistent Cooling

Side left studio view of a 1600 Turbo TerrainCut Wide-Area Mower's green engine cover with black, top air-intake system

An innovative, exclusive air-intake system draws clean air from the top of the machine instead of the rear. This keeps the radiator cleaner and prevents the engine from overheating.

Powerful Turbocharged Diesel Engine

Side studio view of the uncovered diesel engine of a 1600 Turbo Series III wide area mower

The 1600 Turbo TerrainCut™ WAM runs on a 60-hp (44.7-kW) turbocharged diesel engine delivering 117.3 lb-ft (159 Nm) of torque at 3000 rpm for strong hill-climbing and mowing performance. It features advanced emissions controls, a 22-gal. (83.3-L) fuel tank for all-day use, and a design focused on operator comfort and efficiency.

Specifications

Mower Decks

Deck Drive TypeHydraulic, closed loop
SpindlesHeat treated, diameter, 2.54 cm
SpindlesHeat treated, diameter, 1 in.
Spindle Bearings GreaseableYes
Energy-Absorbing Wing DecksYes
Deck CircuitSeries
Blade DriveC-section, V-belt
Center Deck Cutting Width157 cm
Center Deck Cutting Width62 in.
Wing Deck Cutting Width107 cm
Wing Deck Cutting Width42 in.
Transport LockStandard
DischargeRear
Deck ConstructionFabricated steel
Deck Thickness7 gauge
Deck Thickness4.6 mm
Deck Thickness0.18 in.
Wing Deck Float - Up (While Maintaining PTO Engagement)45 degree (angle)
Wing Deck Float - Down (While Maintaining PTO Engagement)20 degree (angle)

Mowing Rate

80 Percent Field Efficiency85% field efficiency at 16 km/h
80 Percent Field Efficiency85% field efficiency at 10 mph

Blades

Total Mower BladesSeven, three center and two each side
Blade Length55.88 cm
Blade Length22 in.
Blade Width6.35 cm
Blade Width2.5 in.
Blade Thickness0.79 cm
Blade Thickness0.312 in.
Blade Tip Speed3962 m/min
Blade Tip Speed13000 fpm
Interchangeable Mower Blades Between All DecksYes

Hydraulic System

Traction Drive PumpDisplacement, axial piston pump, 49 cc
Traction Drive PumpDisplacement, axial piston pump, 3 cu in.
MotorDisplacement, axial piston pump, 33 cc
TypeClosed loop, hydrostatic
Steering Relief1087 psi
Implement Relief1600 psi
Hydraulic Reservoir Capacity53 L
Hydraulic Reservoir Capacity14 gal.
MotorDisplacement, axial piston pump, 2 cu in.

Operator Station

SeatAir-ride suspension seat, adjustable, deluxe, high-backed, back angle adjustment, lumbar adjustment, standard armrests
Seat Adjustment PositionsMulti
ArmrestsYes, adjustable
SafetySafety interlock and operator presence system

Steering

TypePower, hydrostatic
Tilt Steering WheelStandard
Turns Lock-To-Lock2.5
Turning Radius99 cm
Turning Radius39 in.

Frame

Frame TypeWelded, tubular steel
Thickness11 gauge
Thickness0.3 cm
Thickness0.12 in.

Engine

Engine Model4TNV86CT-DJWM (T4)
Displacement2091 cc
Displacement127.6 cu in.
Bore And Stroke86x90 mm
Bore And Stroke3.4x3.5 in.
InjectionDirect
Starting AidEngine glow plug
Cylinders4
Cycle4
Horsepower (Gross Intermittent)3000 rpm
Horsepower (Gross Intermittent)44 kW
Horsepower (Gross Intermittent)60 hp
Rated Engine Speed3000 rpm
Operating Range - Minimum1400 rpm
Operating Range - Maximum3030 rpm
LubricationPressurized by lobe-style pump
Oil FilterSpin-on
CoolingLiquid-cooled water centrifugal
Cooling System Capacity7.5 L
Cooling System Capacity2.5 gal.
Crankcase Capacity5.8 L
Crankcase Capacity6.1 qt
Compression Ratio19:01
Operating Torque (Net Continuous @ 3000 RPM)140 Nm
Operating Torque (Net Continuous @ 3000 RPM)103 lb-ft
Max Torque Per SAE J1349 (Net Continuous)159 Nm
Max Torque Per SAE J1349 (Net Continuous)117.3 lb-ft
Air CleanerDual element, dry type
Air Restriction IndicatorStandard, progressive type
Engine ShutoffKey
Radiator LocationRear mounted
Radiator Fins10 fins per inch in.

Fuel System

Fuel TypeDiesel
Fuel Transfer PumpElectric
Fuel FilterReplaceable, spin-on type
Water SeparatorReplaceable, 100-mesh element
Cold Start DeviceIncreased timing for better cold starting
Fuel Tank Capacity83.3 L
Fuel Tank Capacity22 gal.
Fuel Pump TypeMechanical
Fuel Neck Opening7.6 cm
Fuel Neck Opening3 in.
Fuel Tank LocationLeft side of the machine
Self BleedingSystem is self-bleeding because of the electric fuel transfer pump

Controls

ThrottleHand
Forward/ReverseTwo-pedal
Mower LiftThree two-function switches
Park BrakeFoot pedal/disk
Indicator LightsEngine air heater, oil pressure light, engine temperature light, fuel gauge, hydraulic oil temperature light
Power Take-Off (PTO) EngagementElectric solenoid switch
Power Take-Off (PTO) Engagement - TypeHydraulic, independent
Power Take-Off (PTO) Engagement/DisengagementElectric solenoid
Deck Drive PumpDisplacement, axial piston pump, 40.6 cc
Deck Drive PumpDisplacement, axial piston pump, 2.48 cu in. cu in.
Deck MotorDisplacement, gear motor, 41 cc
Deck MotorDisplacement, gear motor, 2.5 cu in.
Deck Motor - TypeHydraulic, open center, closed loop
CircuitSeries

Drivetrain

TransmissionHydrostatic
Transaxle TypeDual range
TransaxleTuff Torque (Kanzaki)
Four-Wheel Drive (4WD)On demand or full time
Four-Wheel Drive (4WD) TypeMechanical rear-wheel drive
Differential LockMechanical, foot activated
Final DrivePlanetary

Tires

Drive Tires (Front)26x12-12
Drive Tires (Front) - PressureFront: 206.8 kPa / Rear: 193.1 kPa
Drive Tires (Front) - PressureFront: 30 psi / Rear: 28 psi psi
Steering Tires (Rear)18x9.5-8
TreadMulti-trac
Ply Rating6 PR (both)

Sound Level (Without Cab)

With Deck94 dBA
Without Deck89 dBA

Anti-Scalp Rollers

TypeFlat-free
Wing Deck Caster WheelsFour, 11x4-5, flat-free
Front Deck Caster WheelsTwo, 11x4-5, flat-free

Electrical

Charging SystemAutomotive type
Alternator75 amp
Battery Voltage12 V
Battery Cold Crank Amps675 CCA
Starter Size1.4 kW
Starter Size1.9 hp

Travel Speed

Speed Range - Minimum0 km/h
Speed Range - Minimum0 mph
Speed Range - Maximum24 km/h
Speed Range - Maximum15 mph
Low Forward Speed14.5 km/h
Low Forward Speed9 mph
High Forward Speed24 km/h
High Forward Speed15 mph
Low Reverse Speed7.2 km/h
Low Reverse Speed4.5 mph
High Reverse Speed12 km/h
High Reverse Speed7.5 mph

Dimensions

Length (With Deck)335 cm
Length (With Deck)132 in.
Wheel Base152 cm
Wheel Base60 in.
Tread Width131 cm
Tread Width52 in.
Width With Decks Down340 cm
Width With Decks Down134 in.
Height With Rollover Protective Structure (ROPS)249 cm
Height With Rollover Protective Structure (ROPS)98 in.
Transport Width213 cm
Transport Width84 in.
Ground Clearance16.5 cm
Ground Clearance6.5 in.
Vehicle Weight1892.8 kg
Vehicle Weight4173 lb.
Machine Weight Without The Deck3264 lb.
Machine Weight Without The Deck1474.2 kg

Buyer's Notes

Warranty24 months
CertificationANSI B71.4

Additional Information

Date Collected07/21/2022 00:00:00

Implement Lift

TypeHydraulic, open center
Lift Cylinders5.08 cm
Lift Cylinders2 in.
PumpGear

Fuel Consumption

Full Load12.7 L/hr
Full Load3.33 gph
One-Half Load7.31 L/hr
One-Half Load1.93 gph

Brakes

TypeInternal, wet disc
Steering BrakesStandard
Parking BrakesHand brake

Rollover Protective Structure (ROPS)

TypeStandard four-post canopy ROPS meets ISO21299 standard
