Features

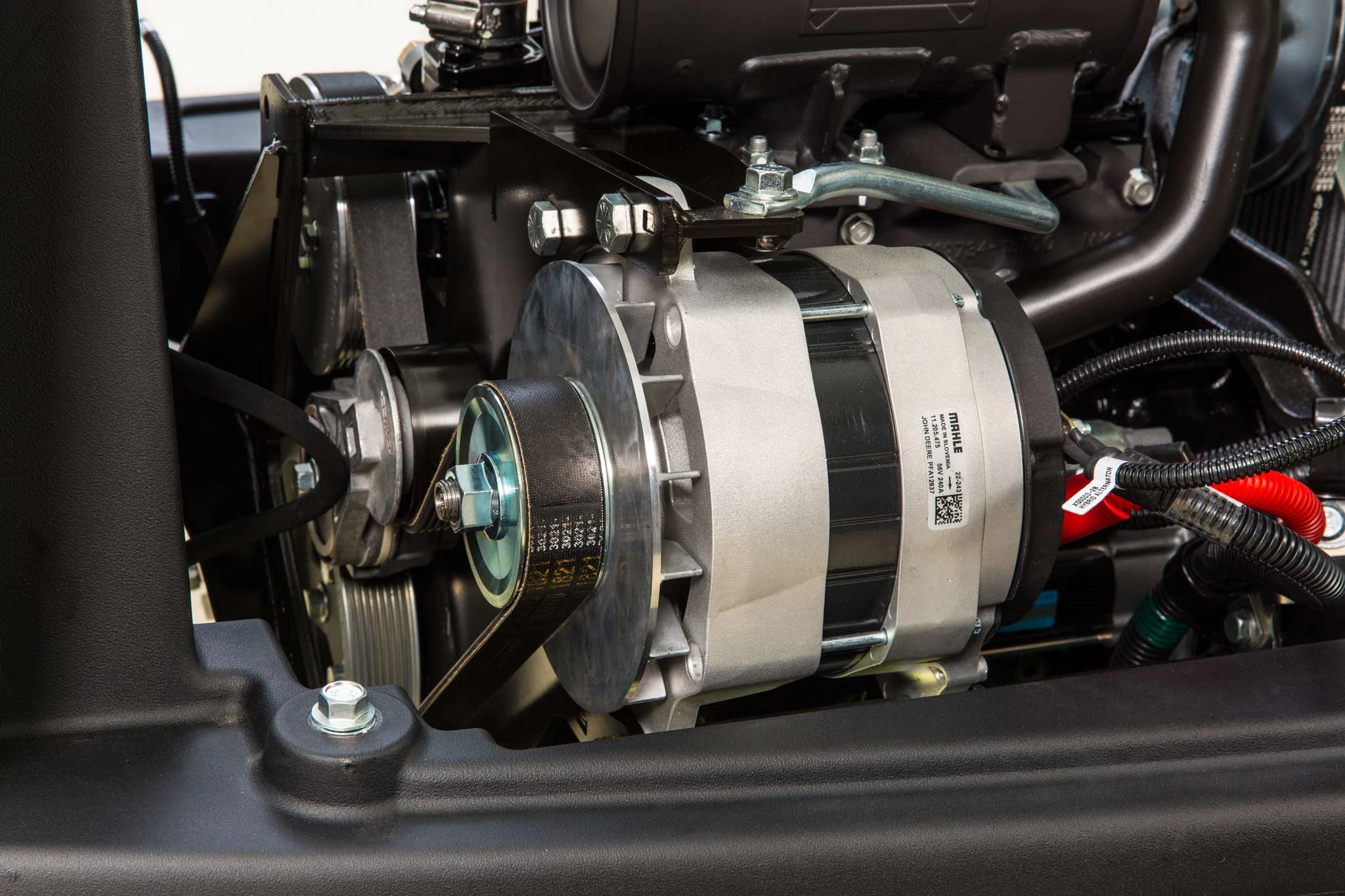

56-Volt, 240 amp Alternator Powers Brushless Electric Reel Motors
Providing excellent mowing and verticutting performance while completely eliminating any chances of hydraulic leaks from the reel circuit, the 56-V, 240 amp smart alternator powers a fully electric reel drive system. Belt-driven from the engine, the alternator ensures no additional batteries are needed to power the reel drive circuit.

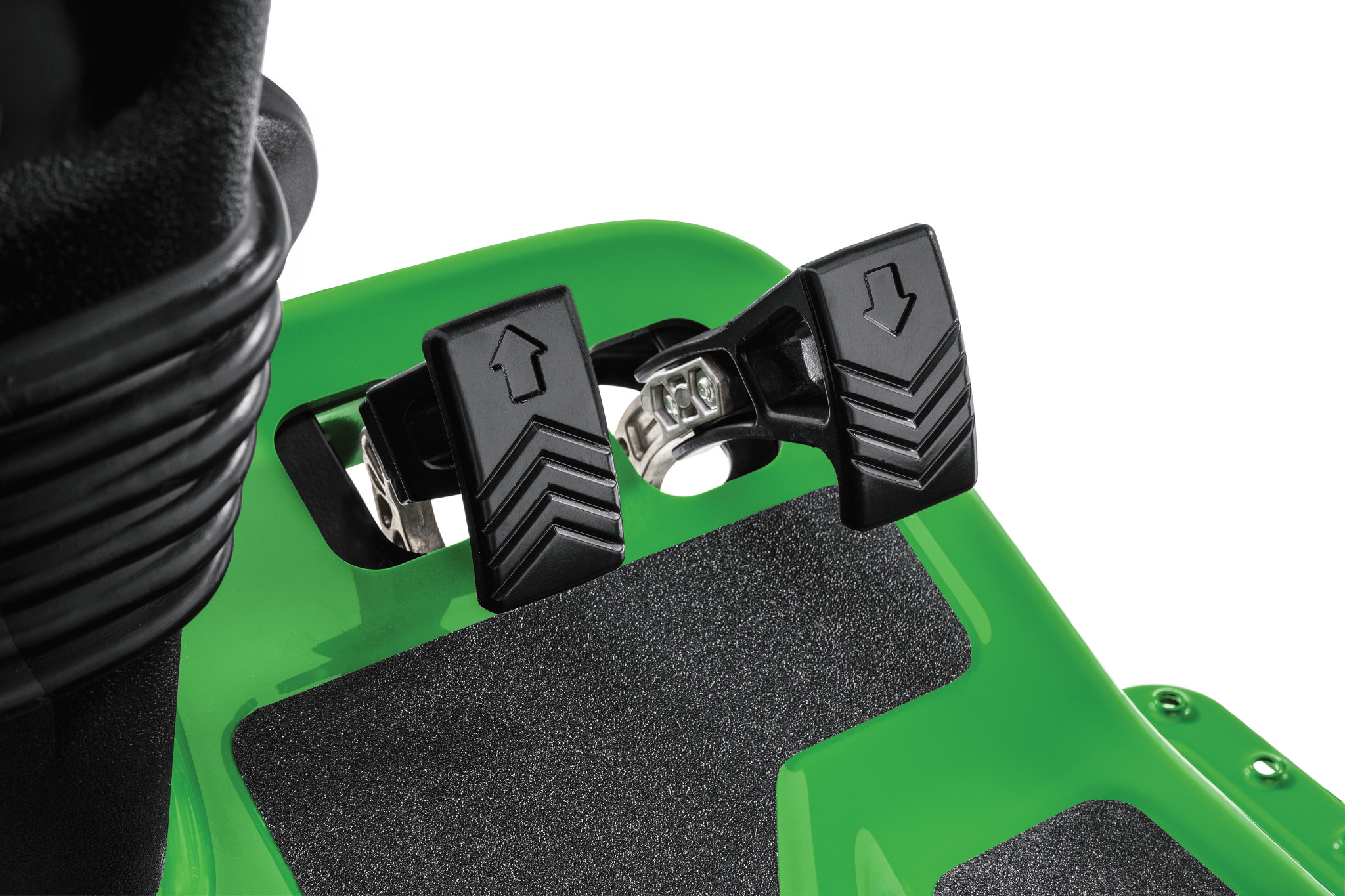

AutoPedal™ Lowers Sound Levels and Fuel Consumption During Transport
The dual pedal traction system electronically controls both the eHydro™ transmission and engine RPMs during transport. By utilizing only the RPMs and ground speed commanded by the operator pressing the foot pedals in transport, this innovative system also reduces the engine RPM to idle when neither pedal is depressed. Linking the engine and traction speed to the foot pedal position maximizes fuel savings and reduces noise during transport.
Passcode-Protected TechControl Display Puts the Supervisor in Control
Set maximum mow speed, turn speed, and transport speed to assist in providing consistency of performance from operator to operator. These settings are passcode-protected within the TechControl display, putting the supervisor in more control of each operator's cut quality and performance. Achieve more consistency from machine to machine and from operator to operator for a more uniform appearance across the course.
Specifications
Dimensions
| Height With ROPS | 224 cm |
| Height With ROPS | 88 in. |
| Length | 232 cm |
| Length | 127 in. |
| Transport Width | 287 cm (113 in.) |
| Mowing Position Width | 295 cm (116 in.) |
| Ground Speed - Mowing | 12.8 km/h |
| Ground Speed - Mowing | 8 mph |
| Ground Speed - Transport | 18.5 km/h |
| Ground Speed - Transport | 11.5 mph |
| Ground Speed - Reverse | 6.4 km/h |
| Ground Speed - Reverse | 5 mph |
Controls
| Throttle | Automatic controls with AutoPedal foot controls; manual control through TechControl display |
| Forward/Reverse | 2-pedal |
| Mower Lift | One-touch single handle |
| Parking Brake | Electric switch on CommandARM for internal wet disk brakes |
| Seat | Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment |
| PTO | Electric switch on CommandARM |
| Tilt Steering | Left foot operated for easy adjustment |
| Operator Display | TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; LoadMatch™ and ON/OFF Cruise Control Use selection: all settings are passcode protected |
| Storage | Cup holder; two-way radio; large operator storage located on left hand side of operator station |
Cutting Units
| Number | 5 |
| Cutting Unit Size | Quick Adjust QA7 |
| Cutting Unit Size | 55.9 cm |
| Cutting Unit Size | 22 in. |
| Cutting Width | 100 in. |
| Cutting Width | 254 cm |
| Height-Of-Cut | Ten-blade QA7: 6.3-50.8 mm (0.25-2.0 in.); Eight-blade QA7: 6.3-50.8 mm (0.25-2.0 in.) |
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) | 10 Blade: 1.06 mm/km/h (0.067 in./mph); 8 Blade: 1.33 mm/km/h (0.084 in./mph) |
| Rollers | Front and rear: 7.6 mm (3 in.) |
| Reel Diameter | 17.8 cm |
| Reel Diameter | 7 in. |
Vehicle
| Drive Pump | Tandem gear pump |
| Hydraulic System Capacity | 37.8 L |
| Hydraulic System Capacity | 10 U.S. gal. |
| Fuel Tank Capacity | 60.6 L |
| Fuel Tank Capacity | 16 U.S. gal. |
| Steering | Hydraulic power with double acting steering cylinder |
| Front Drive Tires | 26.5x14-12 turf |
| Steering Tires | 20x12X10-8 turf |
| Ground Pressure | 69 kPa |
| Ground Pressure | 10 psi |
| Brakes | Internal hydraulic wet disc brakes with dynamic braking through closed loop hydrostatic system |
| ROPS | Standard; meets ISO 21299 Standard |
Engine
| Type | Direct inject turbocharged diesel |
| Compliant Emission Regulation | Final Tier 4 |
| Maximum Engine Power | 2800 rpm |
| Maximum Engine Power | 31 kW |
| Maximum Engine Power | 41.6 hp |
| Cylinders | 3 |
| Displacement | 1.568 L |
| Air Cleaner | 2-stage dry element |
| Fuel | Diesel up to B20 compliant |
| Cooling System | Liquid centrifugal pump; forward machine location for optimum cooling |
Warranty
| Type | Two-year limited |
Certification
| Type | ANSI B71.4-2012. |
Sound Levels
| Measuring Standard | ISO 11201 |
| Attachments Installed | FTCs, reels engaged |
Fuel Economy
| Actual Fuel Usage Will Vary Depending On Course Conditions, Operation, Turf And Fuel Quality | 25% load: 2.8 L/hr (0.75 gph); 40% load: 4.32 L/hr (1.14 gph); 50% load: 5.22 L/hr (1.38 gph) |
Operating Weight
| Cutting Units Lowered | 1202 kg (2650 lb) |
