Features

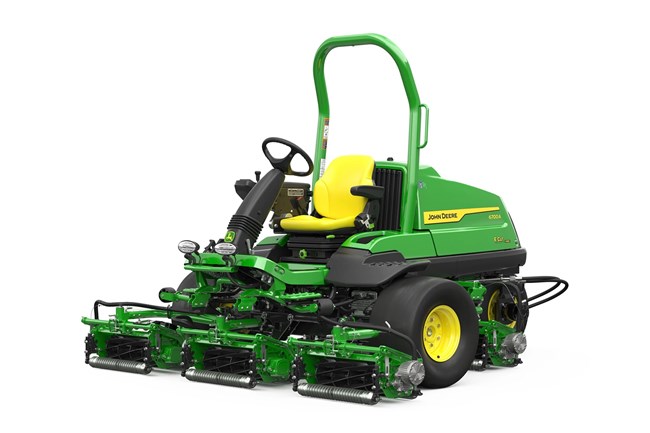

56-Volt, 240 amp Alternator Powers Brushless Electric Reel Motors
Providing excellent mowing and verticutting performance while completely eliminating any chances of hydraulic leaks from the reel circuit, the 56-V, 240 amp smart alternator powers a fully electric reel drive system. Belt-driven from the engine, the alternator ensures no additional batteries are needed to power the reel drive circuit.
Excellent Maneuverability and After Cut Appearance
A light stance with smooth tires sized to minimize ground pressure provides an after cut appearance similar to what you would normally expect from a triplex greens mower. The standard GRIP All-Wheel Drive traction system improves traction capabilities in undulating conditions. The 3-wheel stance improves productivity with tighter turning at the end of mowed passes.
Passcode-Protected TechControl Display Puts the Supervisor in Control
Set maximum mow speed, turn speed, and transport speed to assist in providing consistency of performance from operator to operator. These settings are passcode-protected within the TechControl display, putting the supervisor in more control of each operator's cut quality and performance. Achieve more consistency from machine to machine and from operator to operator for a more uniform appearance across the course.
Specifications
Dimensions
| Height With ROPS | 217.3 cm |
| Height With ROPS | 85.6 in. |
| Length | 307.2 cm |
| Length | 121 in. |
| Transport Width | 219 cm (86.2 in.) |
| Mowing Position Width | 287 cm (113 in.) |
| Ground Speed - Mowing | 12.8 km/h |
| Ground Speed - Mowing | 8 mph |
| Ground Speed - Transport | 16.1 km/h |
| Ground Speed - Transport | 10 mph |
Controls
| Throttle | Hand throttle |
| Forward/Reverse | 2-pedal; electronic control of eHydro system |
| Mower Lift | One-touch single handle |
| Parking Brake | Electric switch on CommandARM for internal wet disk brakes |
| Seat | Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment |
| PTO | Electric switch on CommandARM |
| Tilt Steering | Left foot operated for easy adjustment |
| Operator Display | TechControl Display: Located on CommandARM; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; Loadmatch™ and ON/OFF Cruise Control Use selection; all settings are passcode protected |
| Storage | Cup holder; two-way radio; large operator storage located on left hand side of operator station |
Cutting Units
| Number | 5 |
| Cutting Unit Size | Quick Adjust QA7: 55.9 cm (22 in.) |
| Cutting Width | 100 in. |
| Cutting Width | 254 cm |
| Construction | 6.3 to 50.8 mm (0.25 to 2 in.) |
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) | At 1600 reel speed (engine high idle) -10-blade: 1.04 mm/km/h (0.066 in./mph); 8-blade: 1.30 mm/km/h (0.083 in./mph) |
| Rollers | Rollers front and rear: 76.2 mm (3 in.) |
| Reel Diameter | 17.8 cm |
| Reel Diameter | 7 in. |
Vehicle
| Drive Pump | Axial piston, electronically controlled hydrostatic traction pump; dual gear pumps for steering, lift, mow, and charge |
| Hydraulic System Capacity | 37.8 L |
| Hydraulic System Capacity | 10 U.S. gal. |
| Fuel Tank Capacity | 60.6 L |
| Fuel Tank Capacity | 10 U.S. gal. |
| Steering | Hydraulic power with double acting steering cylinder |
| Front Drive Tires | 26.5x14-12 smooth |
| Steering Tires | 24x13-12 smooth |
| Ground Pressure | 69 kPa |
| Ground Pressure | 10 psi |
| Brakes | Internal hydraulic wet disc brakes with dynamic braking through closed loop hydrostatic system |
| ROPS | Standard; meets ISO 21299 Standard |
Engine
| Type | Indirect inject diesel |
| Compliant Emission Regulation | Final Tier 4 |
| Maximum Engine Power | 3000 rpm |
| Maximum Engine Power | 18.4 kW |
| Maximum Engine Power | 24.7 hp |
| Cylinders | 3 |
| Displacement | 1.267 L |
| Displacement | 77.32 cu in. |
| Air Cleaner | 2-stage dry element |
| Fuel | Diesel up to B20 compliant |
| Cooling System | Liquid centrifugal pump; forward machine location for optimum cooling |
Warranty
| Type | Two-year limited |
Certification
| Type | ANSI B71.4-2012 |
Sound Levels
| Measuring Standard | ISO 11201 |
| Attachments Installed | FTCs, reels engaged |
Operating Weight
| Cutting Units Lowered | 1181 kg (2598 lb); Canopy, FTCs and power brushes installed, full fuel |
