Features
Fastback™ PRO Rear-Discharge Mower Deck
The Fastback™ PRO rear-discharge system improves safety and productivity by minimizing debris throw and allowing closer mowing near obstacles. Ideal for public spaces, it ensures a tidy operation with better debris control around the operator.

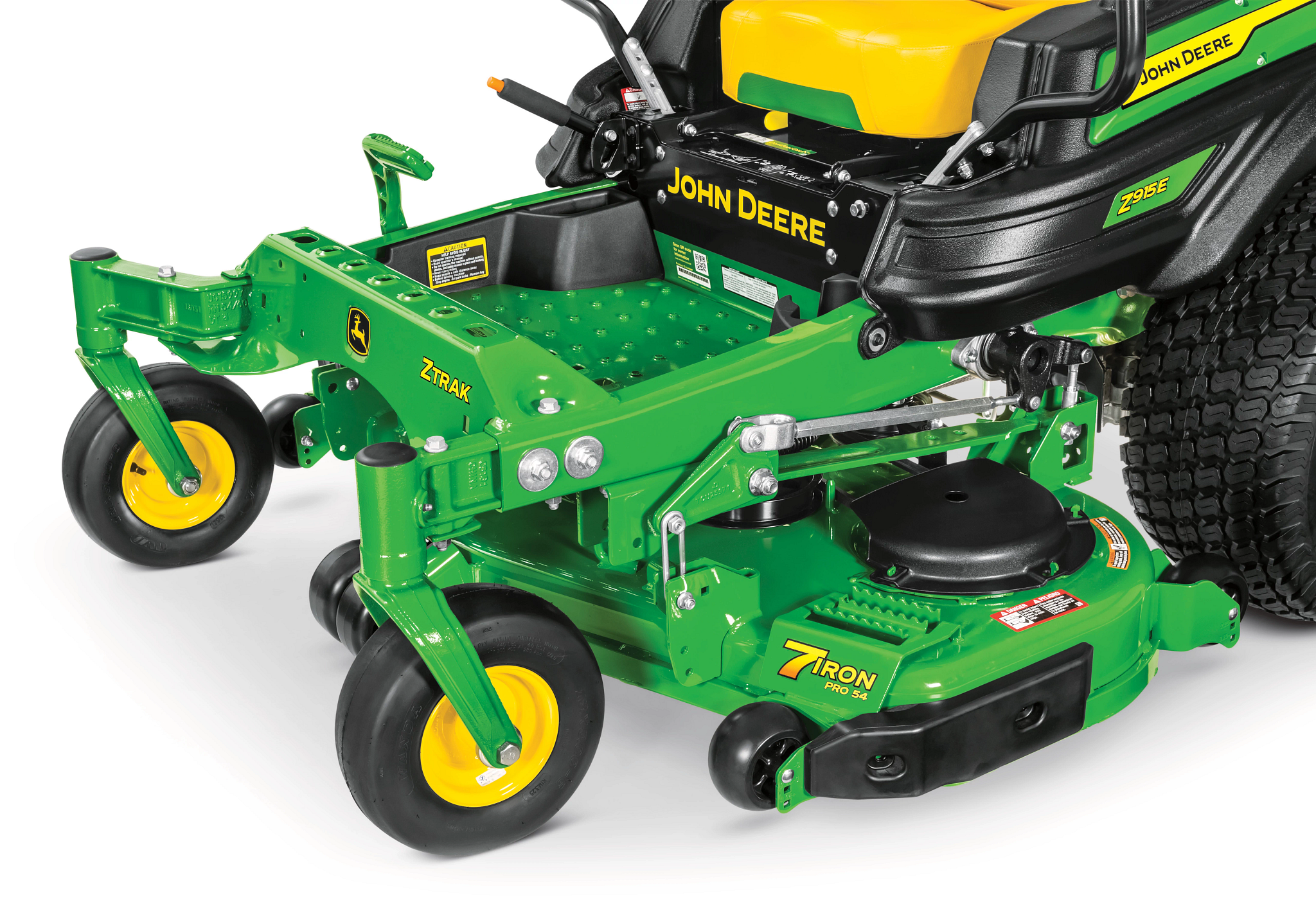

7-Iron™ PRO Deck
This mower is equipped with a 7-Iron PRO side-discharge deck stamped from 7-gauge steel, offering superior durability and performance. The deck design provides a high-quality cut with excellent material processing and discharge capabilities.

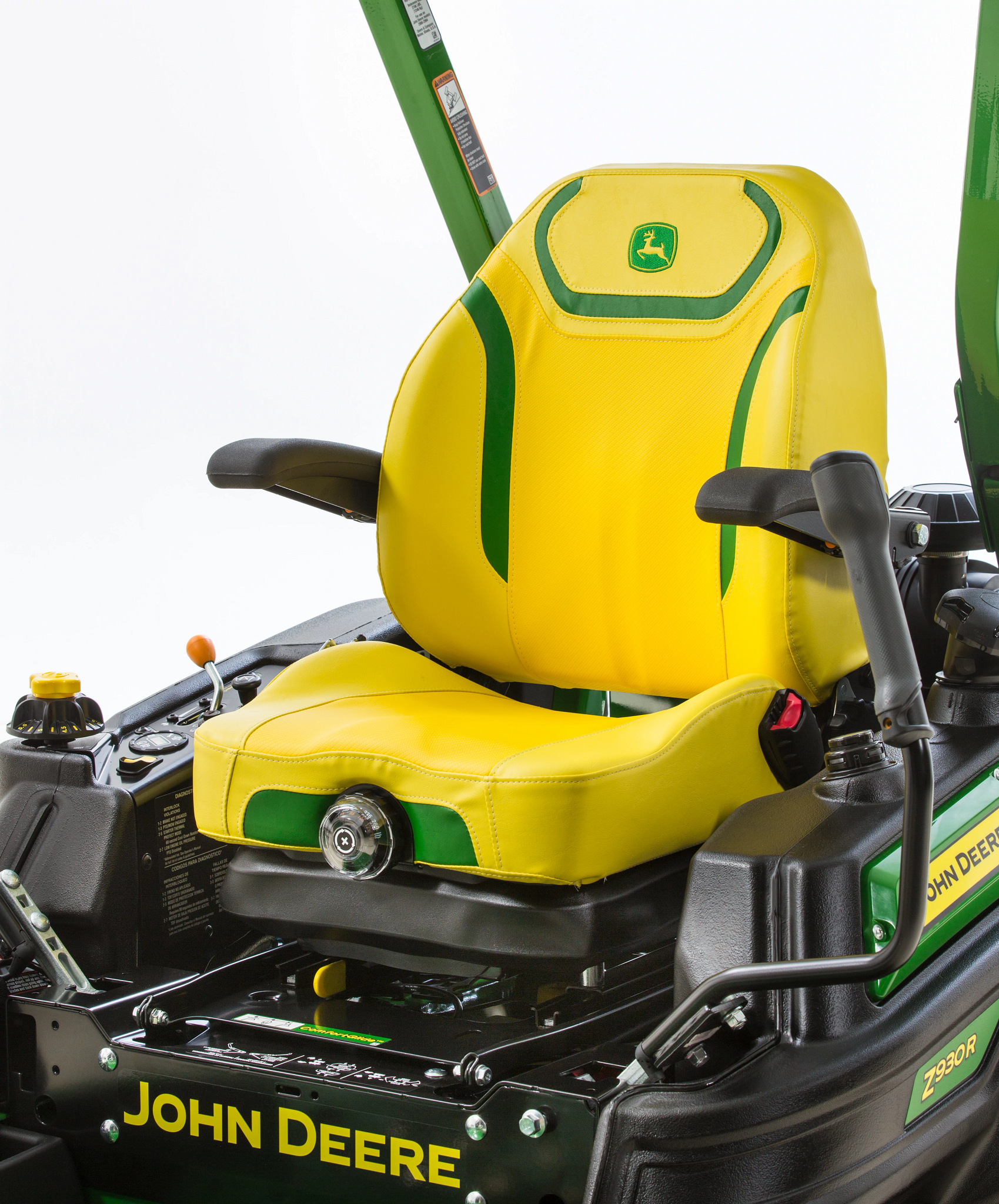

ComfortGlide™ Seat System
The ComfortGlide™ seat system features adjustable suspension, allowing operators to transition more smoothly over bumps. It can adjust fore and aft, absorbing impacts for reduced operator fatigue during long hours of operation.
Specifications
Mower Decks
| Mower Deck Size | 60-in. (152-cm) 7Iron™ PRO side-discharge; 72-in. (183-cm) 7Iron™ PRO side-discharge; 60-in. (152-cm) FastBack™ PRO rear-discharge; 72-in. (183-cm) FastBack™ PRO rear-discharge |
| Deck Construction | 7-Iron™ PRO: 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel; FastBack™ PRO: 7-gauge, 0.179-in. (4.6-mm) fabricated steel |
| Discharge | Side-discharge, Rear-discharge |
| Height-Of-Cut Range | 1-5.5 in. |
| Height-Of-Cut Range | 2.5-14.0 cm |
| Height-Of-Cut Increments | 0.25 in. |
| Height-Of-Cut Increments | 0.64 cm |
| Cutting Width | 60/72 in. |
| Cutting Width | 152/183 cm |
Drivetrain
| Transmission | Hydrostatic |
| Wheel Motors | Hydro-Gear HGM18L 17.8 cu in. (292 cc) |
| Speed Range | 0-11.5 mph |
| Speed Range | 0-18.5 km/h |
| Forward Speed | 0-11.5 mph |
| Forward Speed | 0-18.5 km/h |
| Reverse Speed | 0-5 mph |
| Reverse Speed | 0-8 km/h |
| Speed Direction And Control | Zero turn |
| Hydraulic Capacity | 3.2 U.S. qt |
| Hydraulic Capacity | 12.1 L |
| Hydraulic Oil Cooler | Yes |
| Filter | Spin-on Type |
Tires
| Drive Wheels | 26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires |
| Rear Tires | 26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires |
| Load Rating | 4 PR |
Dimensions
| Length | 60-in. (152-cm) side-discharge: 96 in. (244 cm) |
| Width - With Chute Down | 74, 86 in. |
| Width - With Chute Down | 188, 218 cm |
| Width - Rear Discharge | 63.5, 75.8 in. |
| Width - Rear Discharge | 161.3, 192.5 cm |
| Height - With ROPS Up | 77.3 in. |
| Height - With ROPS Up | 196 cm |
| Height - With ROPS Down | 50.9 in. |
| Height - With ROPS Down | 129 cm |
| Weight | 2180 to 2313 lb. |
| Weight | 989 to 1049 kg |
Operation
| Rollover Protective Structure (ROPS) | Yes |
| Slope Operating Limit | 17 degree (angle) |
Wheels
| Caster Wheel Type | Flat free |
| Caster Wheels | 15x6-6 |
| Front Anti-Scalp Rollers | Left, center, right |
| Rear Anti-Scalp Rollers | Left, center, right |
Brakes
| Dynamic Braking | Dual hand controlled levers |
| Park Brake | Internal wet disk integrated in the transmission |
| Park Brake Actuation | Automatic engagement when steering levers are outward |
Fuel System
| Fuel Type | Diesel or Biodiesel (up to B20) |
| Fuel Tank Capacity | 12 U.S. gal. |
| Fuel Tank Capacity | 45.4 L |
| Fuel Tank Switch/Shut-Off Valve | Yes |
Engine
| Engine Manufacturer/Model | 3TNV88C |
| Engine Power | Gross at 3,000 rpm, PS: 37.4 hp (27.5 kW) |
| Displacement | 100.2 cu in. |
| Displacement | 1642 cc |
| Cylinders | 3 |
| Crankcase Capacity | 3.8 U.S. qt |
| Crankcase Capacity | 3.6 L |
| Oil Filter | Full flow, replaceable, spin-on type |
| Lubrication | Full pressure |
| Cooling | Liquid |
| Air Cleaner | Heavy-duty canister, dry type with safety element and air-restriction indicator |
| Pre-Cleaner | Yes |
Additional Information
| Date Collected | 11/01/2025 11:56:00 |
Blades
| Length | Varies by deck size |
| Thickness | 0.25 (0.64 cm) |
| Blade Tip Speed | 7Iron PRO: Approximately 18,000 fpm; 60-in. (152-cm) FastBack: Approximately 15,000 fpm; 72-in. (183-cm) FastBack: Approximately 17,000 fpm |
| Number | 3 |
PTO
| Type | Hydraulic clutch |
| Drive | Internal wet disk clutch |
Electrical System
| Charge System | 150 amp |
| Battery Voltage | 12 V |
| Cold Cranking Amp At 18 Degrees C | 490 amp |
| Hour Meter | Digital multi-function display |
| Operator Presence Starting System | Standard |
Buyer's note
| Warranty | 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months. |
