Features
7-Iron™ PRO Deck

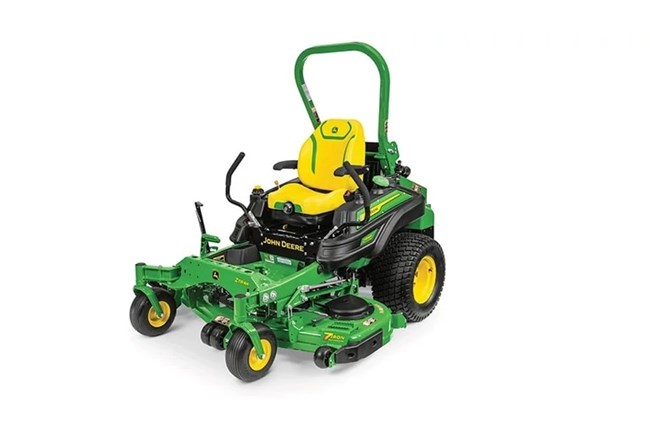

This mower is equipped with a 7-Iron PRO side-discharge deck stamped from 7-gauge steel, offering superior durability and performance. The deck design provides a high-quality cut with excellent material processing and discharge capabilities.
Fastback™ PRO Rear-Discharge Mower Deck
The Fastback™ PRO rear-discharge system improves safety and productivity by minimizing debris throw and allowing closer mowing near obstacles. Ideal for public spaces, it ensures a tidy operation with better debris control around the operator.
ComfortGlide™ Seat System
The ComfortGlide™ seat system features adjustable suspension, allowing operators to transition more smoothly over bumps. It can adjust fore and aft, absorbing impacts for reduced operator fatigue during long hours of operation.
Specifications
Mower Decks
| Mower Deck Size | 60-in. (152-cm) 7Iron™ PRO side-discharge; 72-in. (183-cm) 7Iron™ PRO side-discharge; 60-in. (152-cm) 7Iron™ PRO Mulch On Demand™; 60-in. (152-cm) FastBack™ PRO rear-discharge; 72-in. (183-cm) FastBack™ PRO rear-discharge |
| Deck Construction | 7-Iron™ PRO: 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel; FastBack™ PRO: 7-gauge, 0.179-in. (4.6-mm) fabricated steel |
| Discharge | Side-discharge, Mulch On Demand™, Rear-discharge |
| Height-Of-Cut Range | 1-5.5 in. |
| Height-Of-Cut Range | 2.54-14 cm |
| Height-Of-Cut Increments | 0.25 in. |
| Height-Of-Cut Increments | 0.64 cm |
| Cutting Width | 60/72 in. |
| Cutting Width | 152/183 cm |
Drivetrain
| Transmission | Dual hydrostatic wheel drive TuffTorq heavy-duty ground drive with cross porting for improved cooling |
| Speed Range | 0-11.4 mph mph |
| Speed Range | 0-18.3 km/h km/h |
| Forward Speed | 0-11.4 mph mph |
| Forward Speed | 0-18.3 km/h km/h |
| Reverse Speed | 0-4.5 mph mph |
| Reverse Speed | 0-7.2 km/h km/h |
| Speed Direction And Control | Zero turn |
| Hydraulic Capacity | 5.9 U.S. qt |
| Hydraulic Capacity | 5.6 L |
| Hydraulic Oil Cooler | Fins and fan |
| Filter | Internal, replaceable |
Tires
| Drive Wheels | 24x12.00-12 4-ply turf, optional 24x12-12 Michelin Tweel turf tires |
| Rear Tires | 24x12.00-12 4-ply turf, optional 24x12-12 Michelin Tweel turf tires |
| Load Rating | 4PR |
Dimensions
| Length | 88.6 in. (225 cm) |
| Width - With Chute Down | 74, 86 in. |
| Width - With Chute Down | 188, 218 cm |
| Width - Rear Discharge | 63.5, 75.8 in. |
| Width - Rear Discharge | 161.3, 192.5 cm |
| Height - With ROPS Up | 73 in. |
| Height - With ROPS Up | 185 cm |
| Height - With ROPS Down | 47 in. |
| Height - With ROPS Down | 119 cm |
| Weight | 1711 - 1810 lb. |
| Weight | 776 - 821 kg |
Wheels
| Caster Wheel Type | Flat free |
| Caster Wheels | 13x6.5-6 |
| Front Anti-Scalp Rollers | LH, RH, Center |
| Rear Anti-Scalp Rollers | Standard |
Brakes
| Dynamic Braking | Twin motion control levers |
| Park Brake | Internal wet disk integrated in the transmission |
| Park Brake Actuation | Foot brake engagement also brings steering levers to neutral |
Fuel System
| Fuel Type | Diesel or Biodiesel (up to B20) |
| Fuel Tank Capacity | 11.5 U.S. gal. |
| Fuel Tank Capacity | 43.5 L |
| Fuel Tank Switch/Shut-Off Valve | Yes |
Engine
| Engine Manufacturer/Model | 3TNV80F |
| Engine Power | Gross at 3,200 rpm, PS: 24.7 hp (18.4 kW) |
| Displacement | 77.3 cu in. |
| Displacement | 1267 cc |
| Cylinders | 3 |
| Crankcase Capacity | 3.6 U.S. qt |
| Crankcase Capacity | 3.4 L |
| Oil Filter | Full flow, replaceable, spin-on type |
| Lubrication | Full pressure |
| Cooling | Liquid |
| Air Cleaner | Heavy-duty canister, dry type with safety element and air-restriction indicator |
| Pre-Cleaner | Yes |
Additional Information
| Date Collected | 03/15/2023 00:00:00 |
Blades
| Length | Varies by deck size |
| Thickness | 0.25 in (0.64 cm) |
| Blade Tip Speed | Side discharge 7Iron PRO: approximately 17,000 fpm; Rear discharge FastBack PRO: 60-in.: approximately 15,300 fpm; 72-in.: approximately 17,000 fpm |
| Number | 3 |
PTO
| Type | Electric clutch |
| Drive | V-belt |
Electrical System
| Charge System | 75 amp |
| Battery Voltage | 12 V |
| Cold Cranking Amp At 18 Degrees C | 600 amp |
| Hour Meter | Digital multi-function display |
| Operator Presence Starting System | Standard |
Operation
| Rollover Protective Structure (ROPS) | Yes |
Buyer's note
| Warranty | 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months |
