Features
Mulch On Demand™ Deck
The optional Mulch On Demand™ deck provides versatility with a lever-controlled switch between side-discharge and mulching modes. The design accommodates quick transitions, allowing operators to efficiently handle clippings, enhancing both productivity and landscape aesthetics.

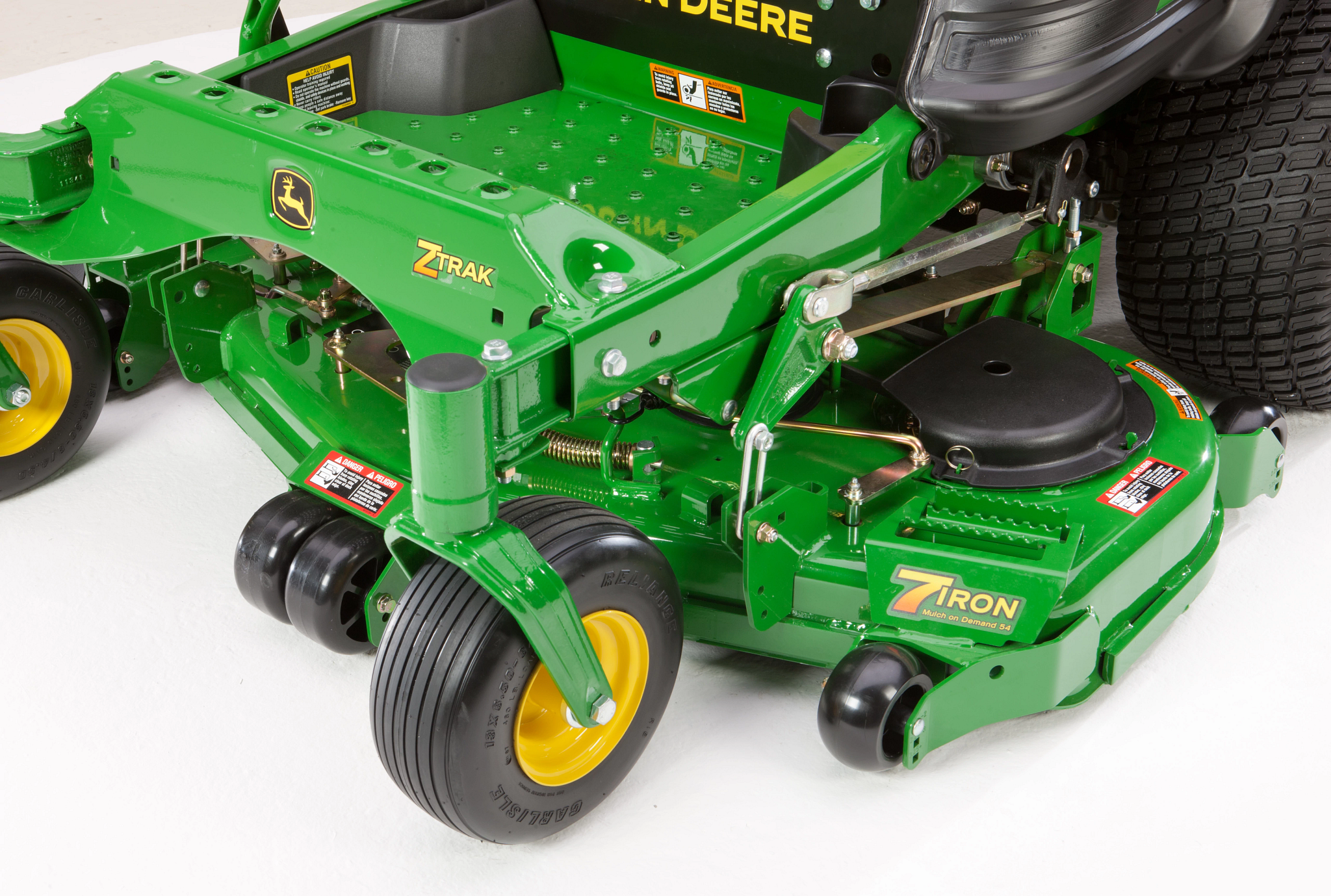

7-Iron™ PRO Deck
This mower is equipped with a 7-Iron PRO side-discharge deck stamped from 7-gauge steel, offering superior durability and performance. The deck design provides a high-quality cut with excellent material processing and discharge capabilities.

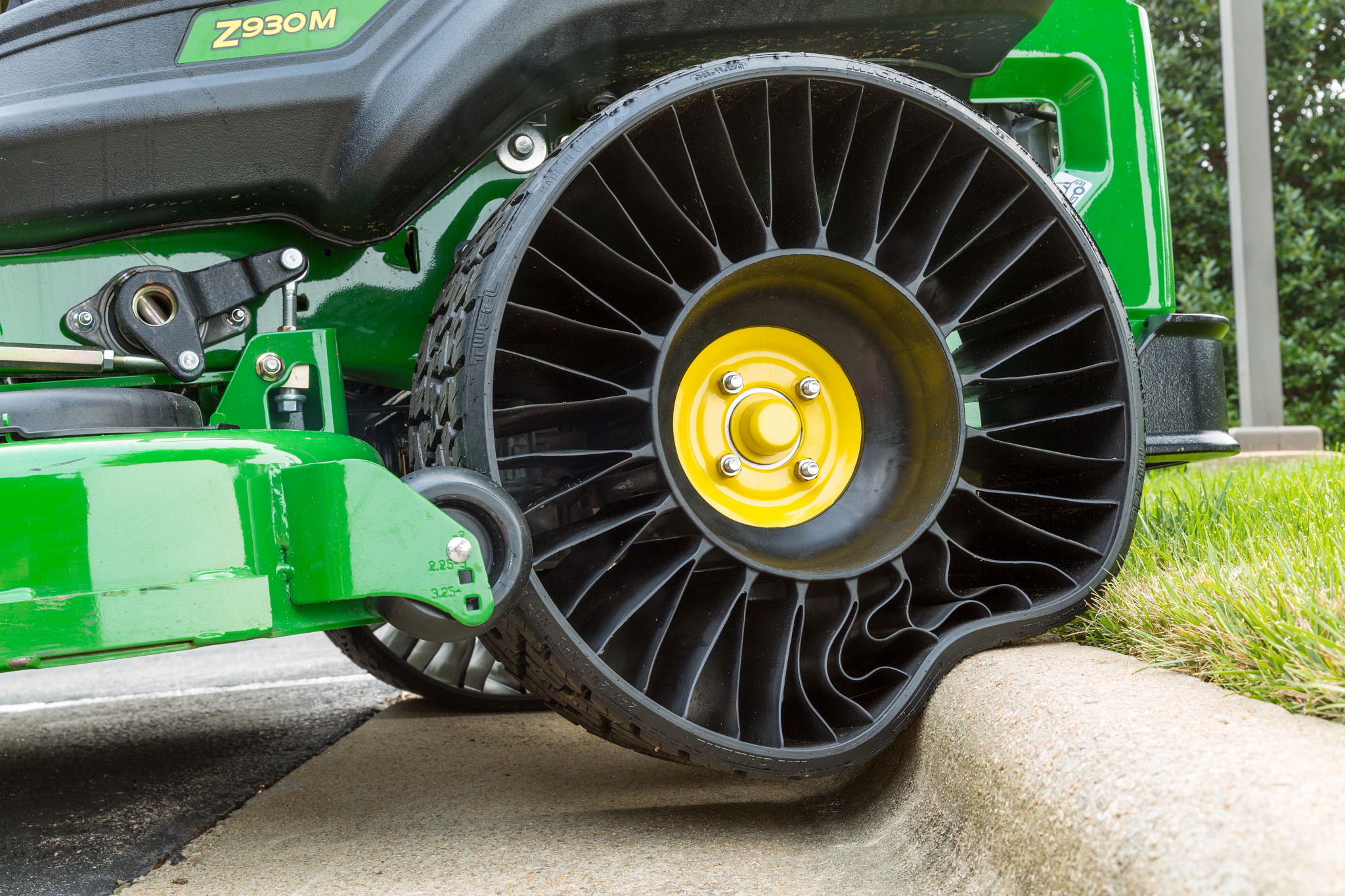

Michelin® X® Tweel® Turf Airless Radial Tires
Available as an option, Michelin® X® Tweel® Turf airless radial tires eliminate downtime due to flat tires and reduce operating costs. These tires enhance mowing performance by improving flotation and ground contact, ensuring consistent cut quality.
Specifications
Mower Decks
| Mower Deck Size | 48-in. (122-cm) 7Iron™ PRO side-discharge; 54-in. (137-cm) 7Iron™ PRO side-discharge; 60-in. (152-cm) 7Iron™ PRO side-discharge |
| Deck Construction | 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel |
| Discharge | Side-discharge |
| Height-Of-Cut Range | 1-5.5 in. |
| Height-Of-Cut Range | 2.54-14 cm |
| Height-Of-Cut Increments | 0.25 in. |
| Height-Of-Cut Increments | 0.64 cm |
| Cutting Width | 48/54/60 in. |
| Cutting Width | 122/137/152 cm |
Drivetrain
| Transmission | Hydrostatic |
| Wheel Motors | Tuff Torq heavy-duty integrated piston wheel motor with cross porting |
| Speed Range | 0-12 mph mph |
| Speed Range | 0-19.3 km/h km/h |
| Forward Speed | 0-12 mph mph |
| Forward Speed | 0-19.3 km/h km/h |
| Reverse Speed | 0-4.5 mph mph |
| Reverse Speed | 0-7.2 km/h km/h |
| Speed Direction And Control | Twin levers |
| Hydraulic Capacity | 5.9 U.S. qt |
| Hydraulic Capacity | 5.6 L |
| Filter | Internal, replaceable |
Dimensions
| Length | 84 in. (312 cm) |
| Width - With Chute Down | 62, 68, 74 in. |
| Width - With Chute Down | 157, 173, 188 cm |
| Height - With ROPS Up | 73 in. |
| Height - With ROPS Up | 185 cm |
| Height - With ROPS Down | 47 in. |
| Height - With ROPS Down | 119 cm |
| Weight | 1228 - 1313 lb. |
| Weight | 557 - 596 kg |
Operation
| Rollover Protective Structure (ROPS) | Yes |
| Slope Operating Limit | 20 degree (angle) |
| Slope Operating Limit - With Material Collection System | 10 degree (angle) |
Wheels
| Caster Wheel Type | Flat free |
| Caster Wheels | 13x6.5-6 |
| Front Anti-Scalp Rollers | Left, center, right |
| Rear Anti-Scalp Rollers | 7Iron PRO: Left, center, right |
Brakes
| Dynamic Braking | Twin levers |
| Park Brake | Internal wet disk integrated in the transmission |
| Park Brake Actuation | Hand brake |
Fuel System
| Fuel Type | Gasoline |
| Fuel Consumption | Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr (4.2-7.2 L/hr) |
| Fuel Tank Capacity | 11.5 U.S. gal. |
| Fuel Tank Capacity | 43.5 L |
| Fuel Tank Switch/Shut-Off Valve | No |
Engine
| Engine Manufacturer/Model | FX730V |
| Engine Power | Gross at 3,600 rpm: 23.5 hp (17.5 kW) |
| Displacement | 44.3 cu in. |
| Displacement | 726 cc |
| Cylinders | 2 |
| Crankcase Capacity | 2.1 U.S. qt |
| Crankcase Capacity | 2 L |
| Oil Filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Forced air, with integrated clean out ports and oil cooler |
| Air Cleaner | Heavy-duty canister type with safety element |
| Pre-Cleaner | Yes |
Tires
| Drive Wheels | 24x12-12 |
| Load Rating | 4 PR |
Additional Information
| Date Collected | 08/01/2024 00:00:00 |
Blades
| Length | Varies by deck size |
| Thickness | 7Iron PRO: 0.25 in. (6.4 mm) |
| Blade Tip Speed | 7Iron PRO: Approximately 18,500 fpm |
| Number | 3 |
PTO
| Type | Electro-magnetic, 200 lb-ft (271 Nm) |
| Drive | V-belt |
Electrical System
| Charge System | 30 amp |
| Battery Voltage | 12 V |
| Cold Cranking Amp | 300 amp |
| Hour Meter | Standard, digital |
| Operator Presence Starting System | Brake-N-Go (hand) |
Buyer's note
| Warranty | 36 months or 1200 hours, whichever comes first; First 24 months, no hour limitation |
