Features

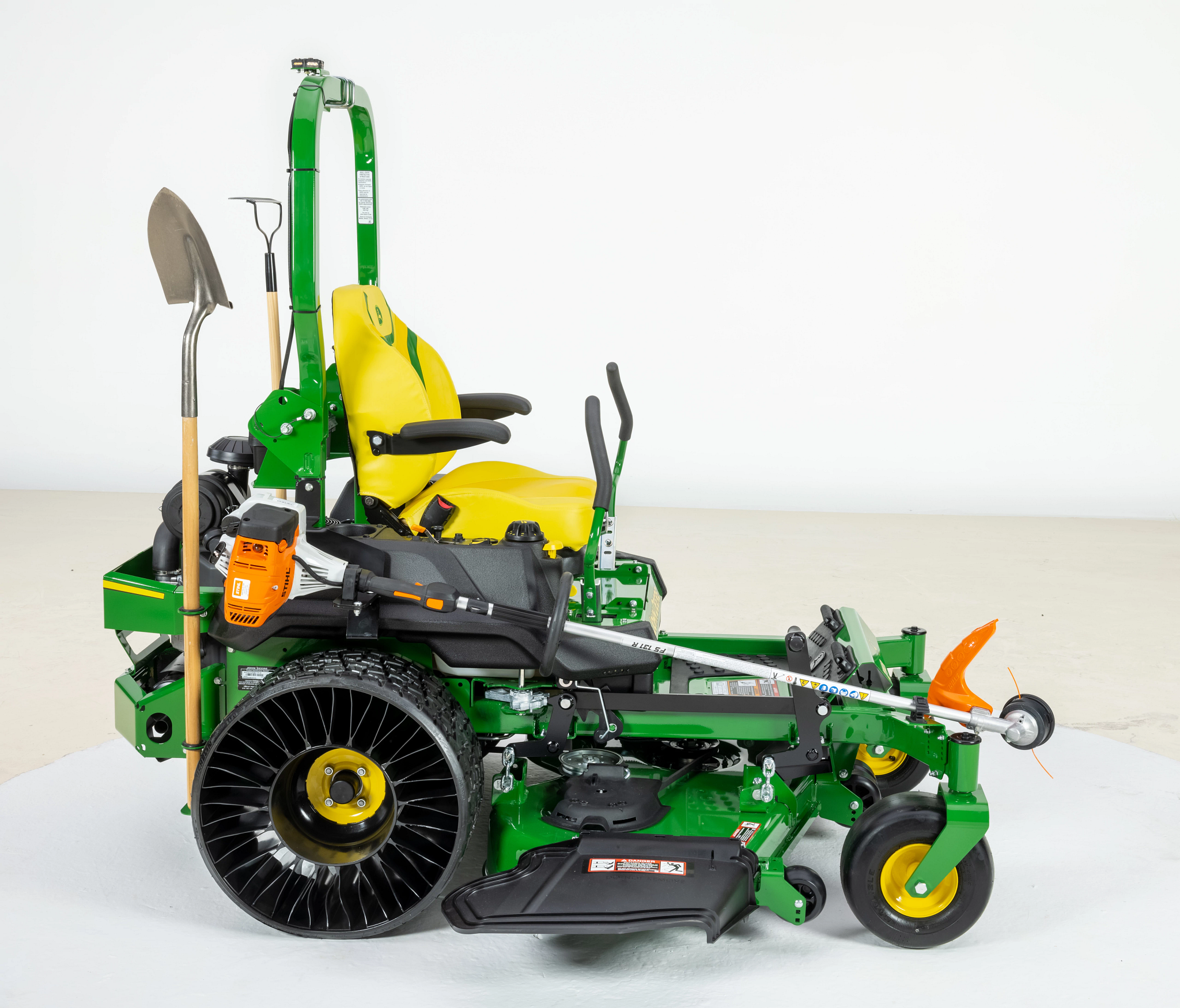

Michelin® X® Tweel® Turf Airless Tires
Offering enhanced reliability and reduced downtime, the optional Michelin® X® Tweel® Turf tires provide a smoother ride and better ground contact, eliminating punctures and sidewall damage. The airless technology prevents inconsistent tire pressure for a more consistent cut quality.

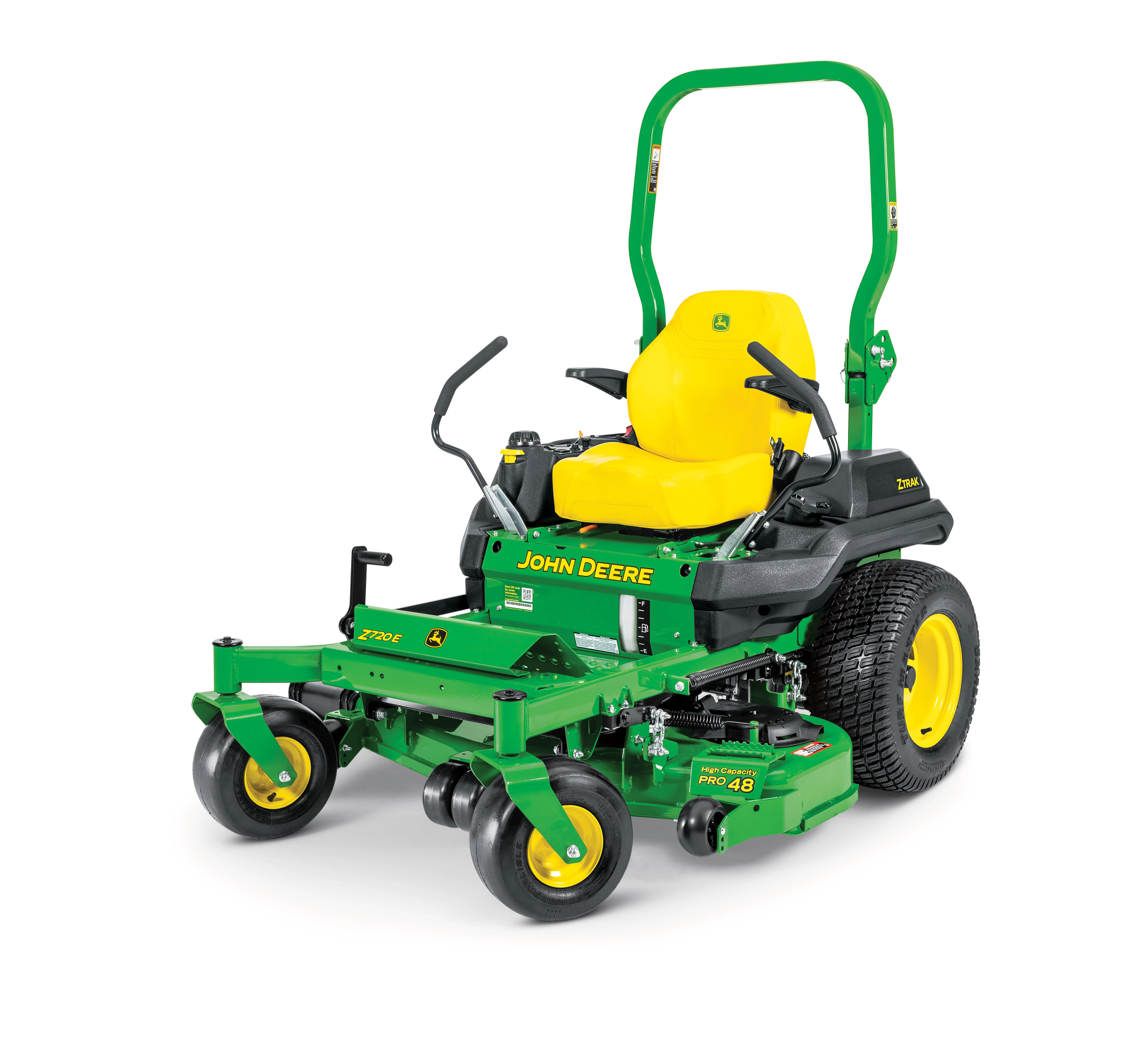

Standard Rollover Protective Structure (ROPS)
The ZTrak™ features a standard rollover protective structure (ROPS) that creates a protective zone for the operator. This structure, when used with the seat belt, reduces the risk of injury by restricting overturn degrees.

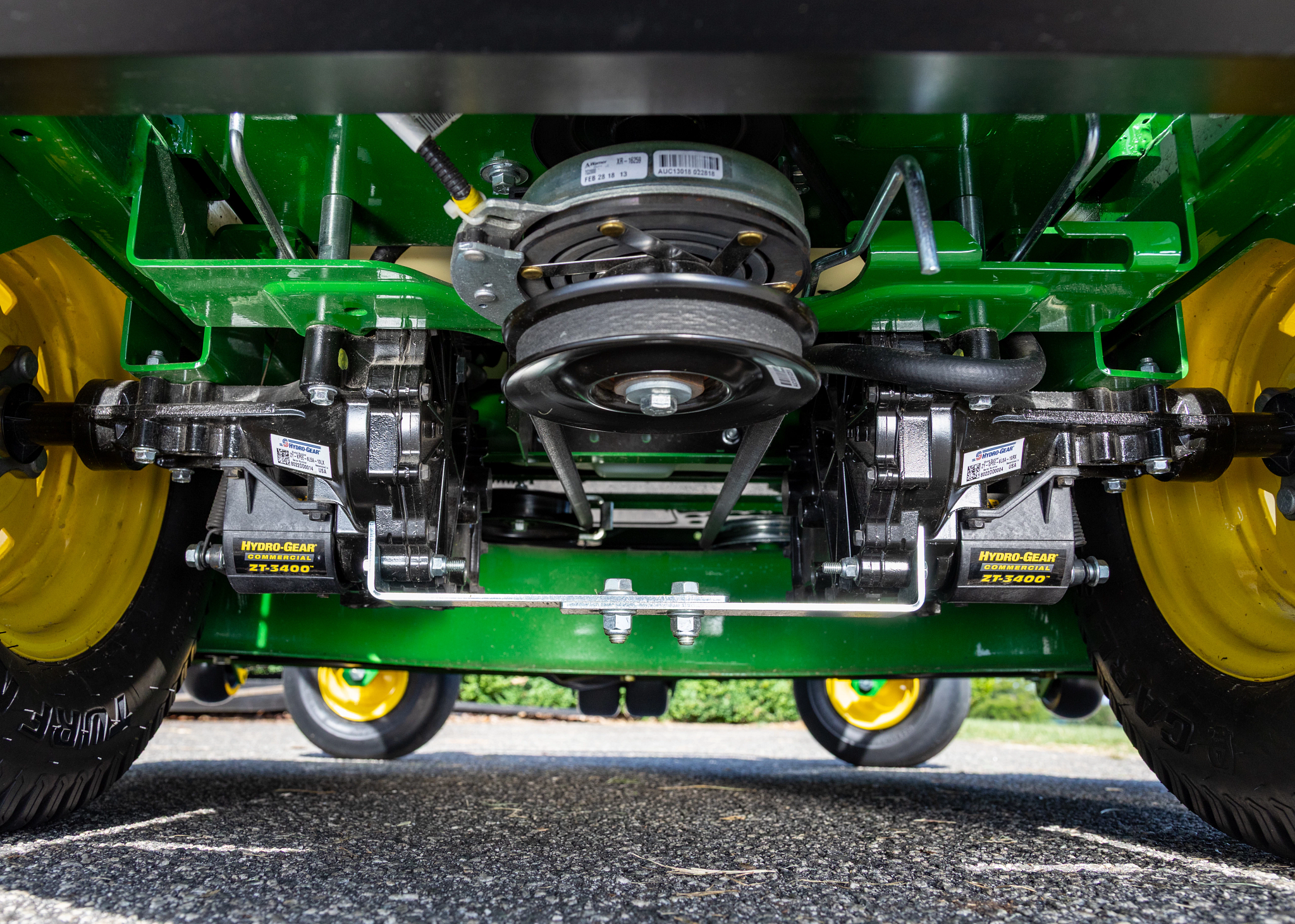

Dual Hydro-Gear Transmissions
Equipped with dual Hydro-Gear transmissions, it offers speeds up to 10 mph (16.1 km/h). These sealed transmissions ensure high-quality performance with low maintenance, allowing easy fluid checks and enhancing stability, especially on slopes.
Specifications
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/Paint | E-coat/powder |
| Front Caster Tires | 13x6.5-6 |
| Front Caster Bearings | Sealed ball bearings |
| Drive Tires | 24X12-12 (54- and 60-in. decks) / Optional - 24X12N12 Michelin® Tweel® X Turf Airless Radial |
| Hour Meter | Yes with low oil pressure and low battery voltage indicators |
| Service Interval Decal | Yes |
| Storage Compartment | Yes |
| Cup Holder | Yes |
Lift System
| Type | Spring assisted foot lift |
| Mower Cut Height - Minimum | 3.8 cm |
| Mower Cut Height - Minimum | 1.5 in. |
| Mower Cut Height - Maximum | 12.7 cm |
| Mower Cut Height - Maximum | 5 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Operation
| Rollover Protective Structure (ROPS) | Yes |
| Slope 0perating Limit | Standard: 15 degrees; With Material Collection System: 10 degree (angle) |
| Operator Presence System | Yes |
| Park Brake Interlock | Yes |
| Operator Video | Yes |
Mower Deck
| Cutting Width | 137/152 cm |
| Cutting Width | 54/60 in. |
| Type | High-capacity (HC) PRO side discharge |
| Mower Deck Material | 9 gauge |
| Mower Deck Material | 3.8 mm |
| Mower Deck Material | 0.15 in. |
| Mower Drive System | V-belt |
Optional Attachments
| Mulching System | Optional MulchControl™ attachment |
| Rubber Floor Mat | Standard |
| Light Kit | Standard LED work and optional beacon lights |
| Material Collection System | 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger / Not compatible with Tweel option |
| Material Collection System | 229 L |
| Material Collection System | 6.5 bu |
Seat
| Seat Back Height | 60.9 cm |
| Seat Back Height | 24 in. |
| Fore-Aft Adjustment | 10.2 cm |
| Fore-Aft Adjustment | 4 in. |
| Seat Suspension | Mechanical; adjustable for weight with ComfortGlide™ |
Travel Speed
| Forward Speed | 16.1 km/h |
| Forward Speed | 10 mph |
| Reverse Speed | 7.2 km/h |
| Reverse Speed | 4.5 mph |
| Speed And Direction Control | Twin premium levers |
| Control Adjustment | 2-height/18 positions |
Engine
| Engine Power | 20.1 kW |
| Engine Power | 27 hp |
| Engine Model Number | FX850V |
| Displacement | 852 cc |
| Displacement | 52 cu in. |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter |
| Lubrication | 2.3 L |
| Lubrication | 2.4 U.S. qt |
| Type | Overhead valve |
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 340 CCA |
| Choke/Speed Control | Separate control levers |
| Cooling Method | Air |
| Fuel Tank Capacity | 30.2 L |
| Fuel Tank Capacity | 8 U.S. gal. |
| Fuel Gauge | Fuel level sight line |
Dimensions
| Wheelbase | 126.7 cm |
| Wheelbase | 49.9 in. |
| Overall Length | 208.4 cm |
| Overall Length | 82 in. |
Power Take-Off (PTO)
| Type | Electric |
| Type | 169 Nm |
| Type | 125 lb-ft |
| Drive | V-belt |
Additional Information
| Date Collected | 12/01/2022 00:00:00 |
Buyer's Notes
| Note 1 | Flip-up and adjustable foot platform for easy service access |
| Warranty | 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Drivetrain
| Dual Hydros | Hydro-gear ZT3400 with 1-in. (2.54-cm) axles |
